Запчасти Case 1650M XLT (35.100.AR[01]) - HYDRAULIC LIFT LINES BD (35) - HYDRAULIC SYSTEMS

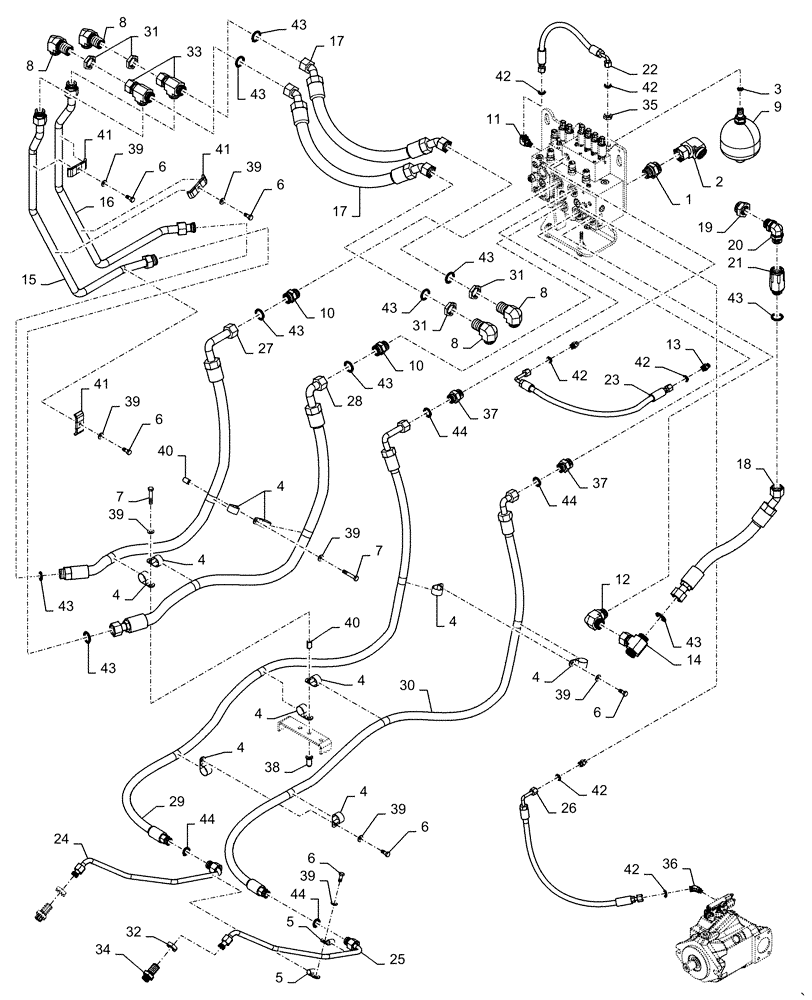

Схема запчастей Case 1650M XLT - (35.100.AR[01]) - HYDRAULIC LIFT LINES BD (35) - HYDRAULIC SYSTEMS
27
4
16
40
40
6
39
26
44
9
31
43
39
39
36
39
35
28
10
4
4
44
4
5
1
2
6
32
4
23
44
6
42
43
20
31
29
6
39
11
42
41
3
39
42
6
12
37
5
4
4
19
41
43
14
30
21
8
43
24
43
39
31
43
34
41
37
42
7
42
15
8
8
17
39
38
25
8
6
33
22
17
10
13
43
4
4
43
18
44
7
43
42
43

Артикул

Название

Примечание

Количество

1

201-134

HYD CONNECTOR,1 11/16"-12 ORFS x 1 5/16"-12 ORB

1шт.

2

201-359

ELBOW,90 Degree Elbow, 1-11/16" - 12 Male ORFS x 1-11/16" - 12 Female ORFS

1шт.

3

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

4

515-24349

CLAMP,1 3/8", Insul, 7/16" Bolt

10шт.

5

515-25159

CLAMP,5/8", Insul, 1/2" Bolt

2шт.

6

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

6шт.

7

614-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8, Full Thd

2шт.

8

701-363

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS

4шт.

9

8501047

ACCUMULATOR

Pilot Supply

1шт.

10

9824055

HYD CONNECTOR,1-7/16" - 12 ORFS x 1-5/16" - 12 ORB

2шт.

11

9840543

90 ELBOW,90 Degree, 11/16"-16 x 9/16"-18 Adj, ORFS

1шт.

12

9846955

90 ELBOW,1-7/16"-12 ORFS x 1-5/16"-12 ORB

1шт.

13

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

3шт.

14

47462695

TEE

1шт.

15

47467152

TUBE ASSY.,23mm ID x 25.4mm OD x 1562mm L

Lower Port

1шт.

16

47467154

TUBE ASSY.,23mm ID x 25.4mm OD x 1625mm L

Upper Port

1шт.

17

47475866

HOSE ASSY.,25.4mm ID x 783mm L, SAE 100R12

Hydraulic Lift

2шт.

18

47544247

HYDRAULIC HOSE

Valve to Filter

1шт.

19

47544518

REDUCER

Female

1шт.

20

47544528

ELBOW UNION,-16, 90 Degree Adj, 1 5/16"-12 Male x 1 5/16"-12, Male, ORB

1шт.

21

84377913

CHECK VALVE

Backhoe Pressure

1шт.

22

84384021

HOSE ASSY.,9.53mm ID x 441mm L, SAE 100R16

Accumulator

1шт.

23

84385320

HOSE ASSY.,9.53mm ID x 881mm L, SAE 100R16

Valve to Tank

1шт.

24

84394706

TUBE,13.4mm ID x 15.8mm OD x 790mm L

Front Port

1шт.

25

84404743

TUBE

Front Port

1шт.

26

84491545

HYDRAULIC HOSE,9.53mm ID x 725mm L, SAE 100R16

Valve

1шт.

27

84590354

HYDRAULIC HOSE,25.4mm ID x 1963mm L, SAE 100R16

Lift Port B2

1шт.

28

84590357

HYDRAULIC HOSE,25.4mm ID x 2045mm L, SAE 100R16

Lift Port A2

1шт.

29

84590416

HYDRAULIC HOSE,25.4mm ID x 3105mm L, SAE 100R16

Tilt Port B1

1шт.

30

84590419

HYDRAULIC HOSE,25.4mm ID x 3090mm L, SAE 100R16

Tilt Port A1

1шт.

31

86639084

BHD LOCK NUT,1-7/16"-12, ORFS, Bulkhead

4шт.

32

86639085

BHD LOCK NUT,1"-14, Bulkhead

2шт.

33

86641295

TEE,1-7/16"-12 ORFS to Swivel

2шт.

34

86978771

UNION,16mm L

2шт.

35

87010704

BHD LOCK NUT,11/16"-16

1шт.

36

87301497

ELBOW,45 Degree, 11/16"-16 x 7/16"-20. Adj, ORFS

1шт.

37

87359470

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-5/16" - 12 ORB

2шт.

38

87417721

THREADED INSERT,M10 x 1.5-6H x 29 L

1шт.

39

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

8шт.

40

D143412

SPACER,10.31mm ID x 15.81mm OD x 23.88mm L

2шт.

41

R36022

CLAMP

Hose

3шт.

42

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

6шт.

43

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

10шт.

44

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

4шт.

Выбрано товаров: 44
