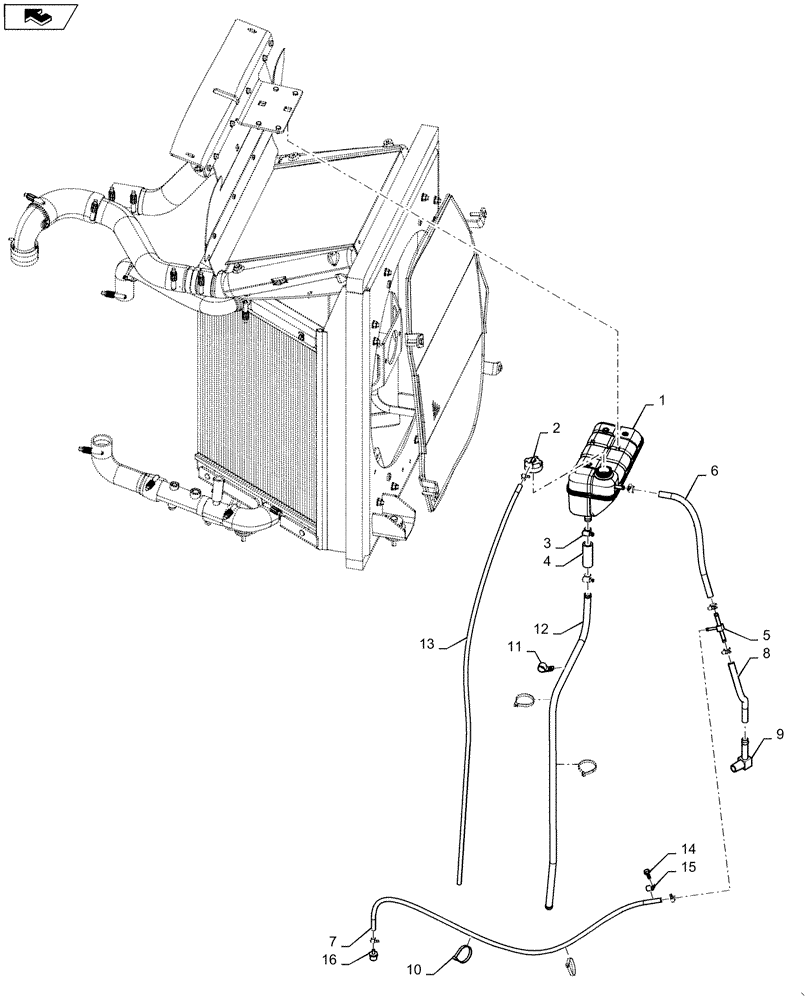

Запчасти Case 1650M XLT (10.400.BI[02]) - DEAERATION SYSTEM (10) - ENGINE

1

82019588

RESERVOIR

Deaeration Bottle

1шт.

2

82022744

CAP,Female, Vented, Non-Locking

Deaeration Bottle

1шт.

3

86625021

HOSE CLAMP,17.5mm - 31.7mm, Worm Gear

2шт.

4

84540654

RADIATOR HOSE,19mm ID x 76mm L

1шт.

5

84207344

TEE

1шт.

6

47376044

HOSE,9.5mm ID x 418mm L

Deaeration Bottle

1шт.

7

84570289

RADIATOR HOSE,6.35mm ID x 1212mm L

1шт.

8

84570288

RADIATOR HOSE,7.92mm ID x 327mm L

1шт.

9

217-132

90 ELBOW,90 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF

1шт.

10

L11541

CABLE TIE,203.2mm L, Nylon

7/8, Tie

8шт.

11

86624005

CLAMP,19mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

12

84591224

TUBE,19mm ID x 1248mm L

Deaeration To Radiator

1шт.

13

84540652

HOSE,6.35mm ID x 1417mm L

Radiator

1шт.

14

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

1шт.

15

86625036

CLAMP,12.7mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

16

87635840

VALVE

Check, Venting

1шт.
