Запчасти Case 1650M XLT (10.400.BF[02]) - RADIATOR FRAME (10) - ENGINE

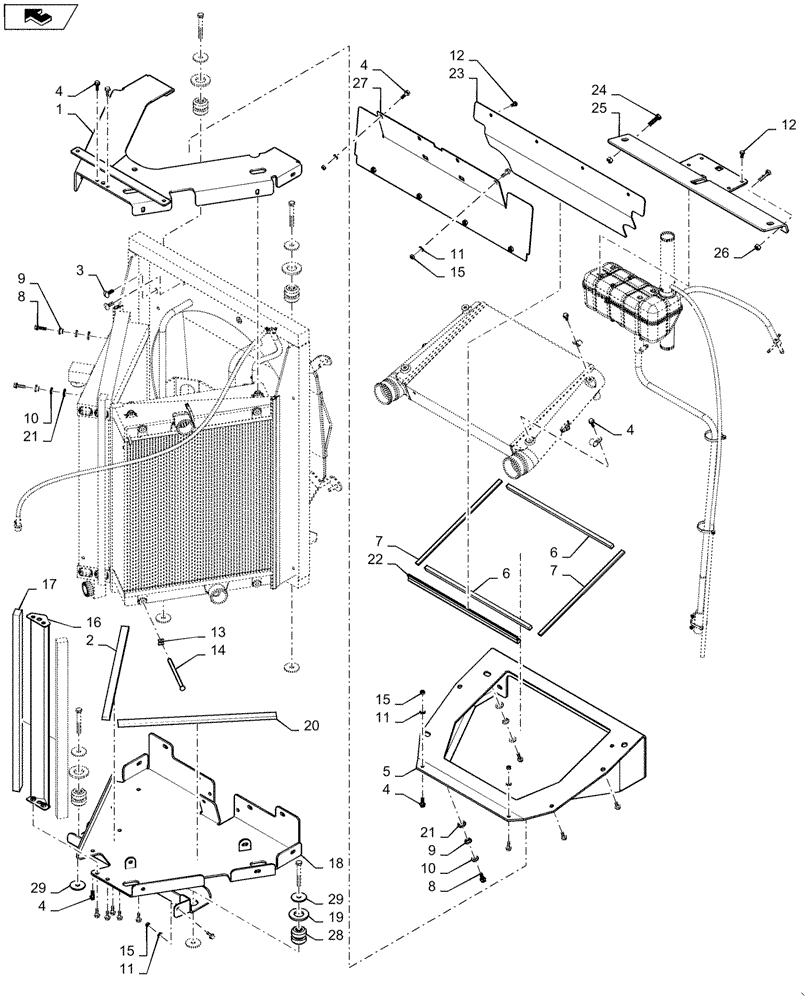

Схема запчастей Case 1650M XLT - (10.400.BF[02]) - RADIATOR FRAME (10) - ENGINE
7
21
22
4
13
18
12
25
29
8
16
21
3
15
4
6
10
9
4
5
11
26
14
4
11
29
24
7
15
home
23
19
9
2
15
4
11
6
20
8
10
12
27
17
28
1

Артикул

Название

Примечание

Количество

1

84540646

FRAME

Upper

1шт.

2

84382952

SEALING STRIP,25mm W x 540mm L x 12mm Thk

Foam, Adhesive

1шт.

3

86512424

CARRIAGE BOLT,Sq Nk, M10 x 30mm, Cl 8.8, Full Thd

10шт.

4

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

22шт.

5

84540635

FRAME

Cac Mount

1шт.

6

84382949

SEALING STRIP,12mm W x 500mm L x 12mm Thk

Foam

2шт.

7

84382950

SEALING STRIP,12mm W x 420mm L x 6mm Thk

Foam

2шт.

8

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

4шт.

9

84316339

HUB,10mm ID x 23mm OD x 10.8mm L

Collar, Sliding

4шт.

10

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

M10 x 10.65 x 23.0 x 2.2 Hts Boron

4шт.

11

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

M8 x 8.80 x 17.5 x 2.2 Hts Boron

7шт.

12

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

8шт.

13

87700737

CLIP

Pin

4шт.

14

84269372

PIN,9.65mm OD x 177.75mm L

Cooling Package, Radiator

4шт.

15

825-1408

NUT,M8, Cl 8

7шт.

16

84542663

SUPPORT

Rear

1шт.

17

84382953

SEAL

Foam

2шт.

18

47376041

FRAME

Lower

1шт.

19

87036956

WASHER,32.8mm ID x 66.5mm OD x 6mm Thk

2шт.

20

84382952

SEALING STRIP,25mm W x 540mm L x 12mm Thk

Foam, Adhesive

2шт.

21

13507701

WASHER,16.4mm ID x 27mm OD x 2mm Thk

4шт.

22

84557202

RUBBER WEATHERSTRIP,28mm W x 600mm L x 15mm H

Seal, Bulb

1шт.

23

84591203

BAFFLE

Lower

1шт.

24

120112

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

2шт.

25

84591196

BRACKET

Deaeration Bottle

1шт.

26

8475948

NUT,M10 x 1.5, Cl 8

2шт.

27

84592707

BAFFLE

Middle

1шт.

28

84540649

ISOLATOR,50mm OD x 50mm L

Vibration

2шт.

29

86625245

WASHER,0.52" ID x 2" OD x 0.16" Thk

0.521 x 2 x 0.16 Hts

8шт.

Выбрано товаров: 29
