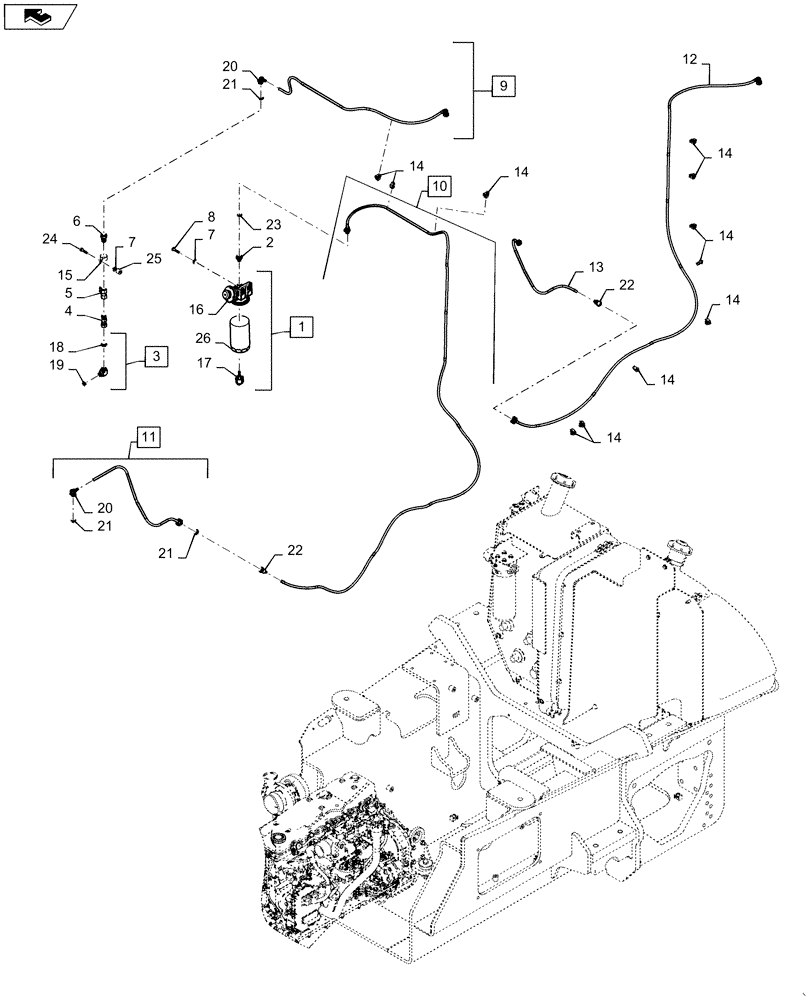

Запчасти Case 1650M XLT (10.210.AF[03]) - FUEL LINES AND FILTER (10) - ENGINE

1

84348875

FILTER ASSY

Incl 16, 26, 17

1шт.

2

8602542

ADAPTER,M14 x 1.5 x 16mm ID x 7.90mm ID

246 NG 12 To M14 X 1.5

1шт.

3

86579689

ELBOW,90 Degree, 13/16" - 16 ORFS x M14 x 1.5 ORB

Incl, 18, 19

1шт.

4

84520680

HYD CONNECTOR

1/2 NPTF x 13/16-16 ORFS

1шт.

5

86984713

SHUT-OFF VALVE

1/2 F-NPT

1шт.

6

87270102

FITTING,1/2" NPTF to Quick Connect

246 NG 12 To 1/2" NPTF

1шт.

7

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

M10 x 10.65 x 23.0 x 2.2 Hts Boron

4шт.

8

120068

BOLT,Hex, M10 x 40mm, Cl 8.8

3шт.

9

47363547

FUEL TUBE

Plastic/Rubber, Incl 20, 21

1шт.

10

47360120

FUEL TUBE

Plastic/Rubber, Filter to ref. 11, Incl 22

1шт.

11

47360119

FUEL TUBE

Plastic/Rubber, Ref 10 to Injection Pump Incl 20, 21

1шт.

12

47360121

FUEL TUBE,8.75mm ID x 10mm OD x 3120mm L

Plastic/Rubber

1шт.

13

84590423

FUEL TUBE,8.75mm ID x 10mm OD x 403mm L

Plastic/Rubber

1шт.

14

84298475

HOSE CLAMP

Dual

13шт.

15

87573373

CLAMP,33.3mm, Coat, 10.3mm Bolt Hole, P Type

Closed 33.3mm Insul 3/8 Bolt

1шт.

16

87705123

FILTER HEAD

Filter

1шт.

17

87519307

SENSOR

Water

1шт.

18

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

Incl 2

1шт.

19

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Incl 2

1шт.

20

84332645

FITTING

Voss 246 90 Degree 10 x 1.25

2шт.

21

4890929

O-RING,3mm Thk x 11mm ID

Incl 10, 11, 12, 20

5шт.

22

84375290

FITTING

Straight Female Fuel 10 x 1.25

2шт.

23

4894095

O-RING,2.5mm Thk x 8mm ID, 60 Duro

Incl 13

1шт.

24

325829

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

1шт.

25

363082R1

SPACER,3/8" Pipe x .656"

1шт.

26

84337371

FUEL FILTER

1шт.
