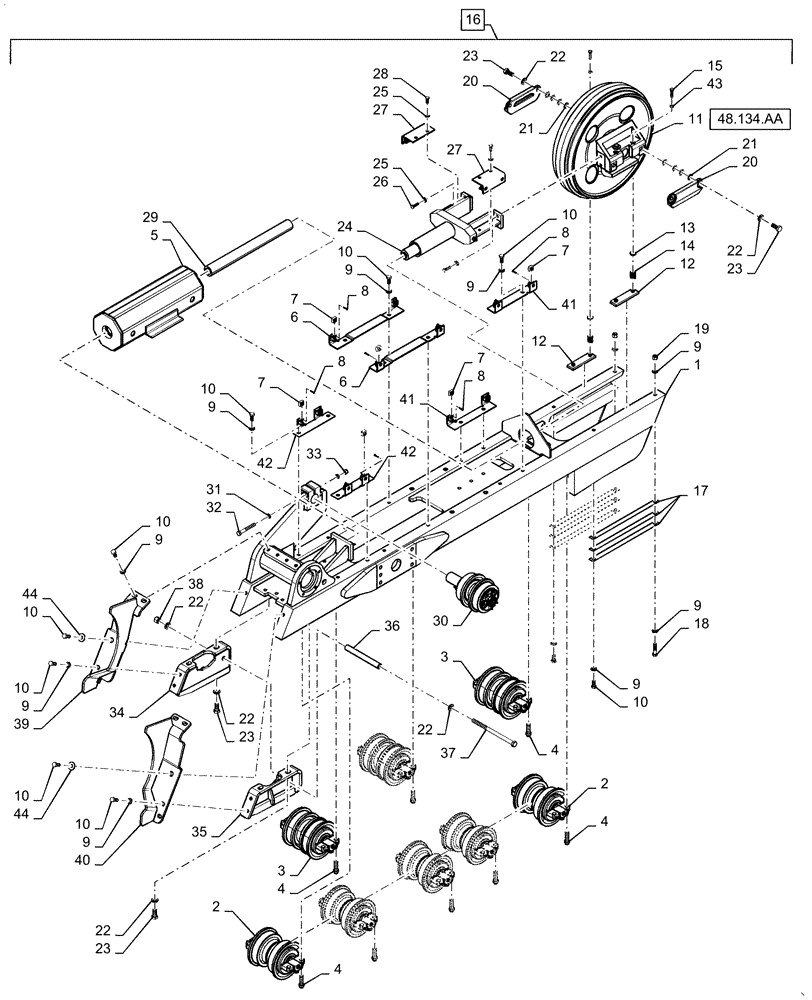

Запчасти Case 1650M XLT (48.138.AB[02]) - TRACK ASSEMBLY FRAME RIGHT HAND (48) - TRACKS & TRACK SUSPENSION

1

47545767

FRAME

Track Right Hand

1шт.

2

87582767

ROLLER

S.F. Track

5шт.

3

87582768

ROLLER

D.F. Track

3шт.

4

47558110

SCREW

32шт.

5

47619940

HOUSING

Recoil Assembly

1шт.

6

87542305

BRACKET

Recoil Housing

2шт.

7

405737A2

SQUARE NUT,M16 x 26mm x 26mm x 16mm H ZND CL 5A

16шт.

8

336371A1

PIN,4.88mm OD x 14.23mm L

16шт.

9

87713133

SPECIAL WASHER

26шт.

10

87563128

LOCK BOLT,Hex, M16 x 2 x 35mm, Cl 8.8, Full Thd

24шт.

11

87589400

IDLER

1шт.

12

47597067

BAR

Idler Wear

2шт.

13

R33245

SPRING SEAT

Boss

4шт.

14

188866A1

SHOCK ABSORBER

Idler Support

4шт.

15

9628065

SCREW,Hex, M12 x 1.75 x 45mm, Cl 8.8

4шт.

16

NSS

NOT SOLD SEPARAT

1шт.

17

87549688

SHIM,31.8mm OD x 0.8mm Thk

Idler Wear

6шт.

18

614-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 8.8, Full Thd

2шт.

19

832-10416

NUT,M16 x 2, Cl 8

2шт.

20

87649097

COVER PLATE

Idler Thrust

2шт.

21

87567391

SHIM,22.8mm ID x 34.9mm OD x 0.8mm Thk

16шт.

22

87655047

SPECIAL WASHER,21.25mm ID x 38.10mm OD x 4.20mm Thk

10шт.

23

604-20045

BOLT,Hex, M20 x 45mm, Cl 8.8

8шт.

24

87652975

YOKE

1шт.

25

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

8шт.

26

87584292

BOLT,Hex, M12 x 40mm, Cl 10.9

4шт.

27

87567390

BRACKET

Idler Cover

2шт.

28

604-12030

BOLT,Hex, M12 x 30mm, Cl 8.8

4шт.

29

84383912

TUBE

Spacer

1шт.

30

87582766

ROLLER

1шт.

31

87563152

WASHER,17mm ID x 26.5mm OD x 4mm Thk

4шт.

32

827-16120

BOLT,Hex, M16 x 2 x 120mm, Cl 10.9

2шт.

33

86512555

NUT,M16 x 2, Cl 10

2шт.

34

47597482

GUARD

Rear Track Left Hand

1шт.

35

47597485

GUARD

Rear Track Right Hand

1шт.

36

87558879

SPACER

Rockguard

1шт.

37

1590067

BOLT,Hex, M20 x 2.5 x 320mm, Cl 8.8

1шт.

38

832-10420

NUT,M20 x 2.5, Cl 8

1шт.

39

47613152

GUARD

Sprocket Left Hand

1шт.

40

47613155

GUARD

Sprocket Right Hand

1шт.

41

87549669

BRACKET

Front Track Cover

2шт.

42

84407194

BRACKET

Rear Cover

2шт.

43

9706685

NUT,M12 x 1.75, Cl 8

4шт.

44

87317689

WASHER,18mm ID x 45mm OD x 4mm Thk

2шт.
