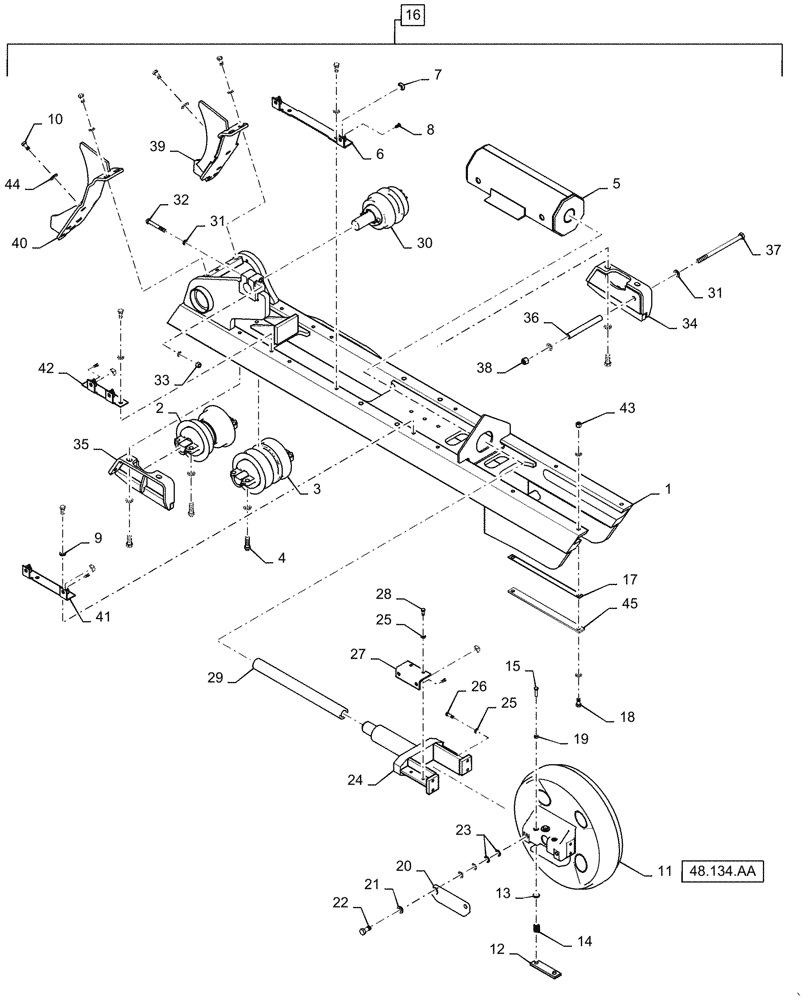

Запчасти Case 1650M XLT (48.138.AB[01]) - TRACK ASSEMBLY FRAME LEFT HAND (48) - TRACKS & TRACK SUSPENSION

1

47545763

FRAME

Left Hand

1шт.

2

87582767

ROLLER

S.F. Track

5шт.

3

87582768

ROLLER

D.F. Track

3шт.

4

47558110

SCREW

32шт.

5

47619940

HOUSING

Recoil Assembly

1шт.

6

87542305

BRACKET

Recoil Housing

2шт.

7

405737A2

SQUARE NUT,M16 x 26mm x 26mm x 16mm H ZND CL 5A

16шт.

8

336371A1

PIN,4.88mm OD x 14.23mm L

Nut Retainer

16шт.

9

87713133

SPECIAL WASHER

26шт.

10

87563128

LOCK BOLT,Hex, M16 x 2 x 35mm, Cl 8.8, Full Thd

24шт.

11

87589400

IDLER

1шт.

12

47597067

BAR

Idler Wear

2шт.

13

R33245

SPRING SEAT

Boss

4шт.

14

188866A1

SHOCK ABSORBER

Spring Idler Support

4шт.

15

9628065

SCREW,Hex, M12 x 1.75 x 45mm, Cl 8.8

4шт.

16

NSS

NOT SOLD SEPARAT

Components Serviced Separately

1шт.

17

87549688

SHIM,31.8mm OD x 0.8mm Thk

Idler Wear Bar

6шт.

18

614-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 8.8, Full Thd

2шт.

19

832-10416

NUT,M16 x 2, Cl 8

2шт.

20

87649097

COVER PLATE

Idler Thrust

2шт.

21

87655047

SPECIAL WASHER,21.25mm ID x 38.10mm OD x 4.20mm Thk

10шт.

22

604-20045

BOLT,Hex, M20 x 45mm, Cl 8.8

8шт.

23

87567391

SHIM,22.8mm ID x 34.9mm OD x 0.8mm Thk

16шт.

24

87652975

YOKE

1шт.

25

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

8шт.

26

87584292

BOLT,Hex, M12 x 40mm, Cl 10.9

4шт.

27

87567390

BRACKET

Idler Cover

2шт.

28

604-12030

BOLT,Hex, M12 x 30mm, Cl 8.8

Locking

4шт.

29

84383912

TUBE

Spacer

1шт.

30

87582766

ROLLER

Carrier

1шт.

31

87563152

WASHER,17mm ID x 26.5mm OD x 4mm Thk

4шт.

32

827-16120

BOLT,Hex, M16 x 2 x 120mm, Cl 10.9

2шт.

33

86512555

NUT,M16 x 2, Cl 10

2шт.

34

47597482

GUARD

Rear Track Left Hand

1шт.

35

47597485

GUARD

Rear Track Right Hand

1шт.

36

87558879

SPACER

Rockguard

1шт.

37

1590067

BOLT,Hex, M20 x 2.5 x 320mm, Cl 8.8

1шт.

38

832-10420

NUT,M20 x 2.5, Cl 8

1шт.

39

47613152

GUARD

Sprocket Left Hand

1шт.

40

47613155

GUARD

Sprocket Right Hand

1шт.

41

87549669

BRACKET

Front Track Cover

2шт.

42

84407194

BRACKET

Rear Cover

2шт.

43

9706685

NUT,M12 x 1.75, Cl 8

4шт.

44

87317689

WASHER,18mm ID x 45mm OD x 4mm Thk

2шт.

45

84163924

WEAR PLATE,528.5mm L x 41mm W x 9.5mm Thk

Idler

2шт.
