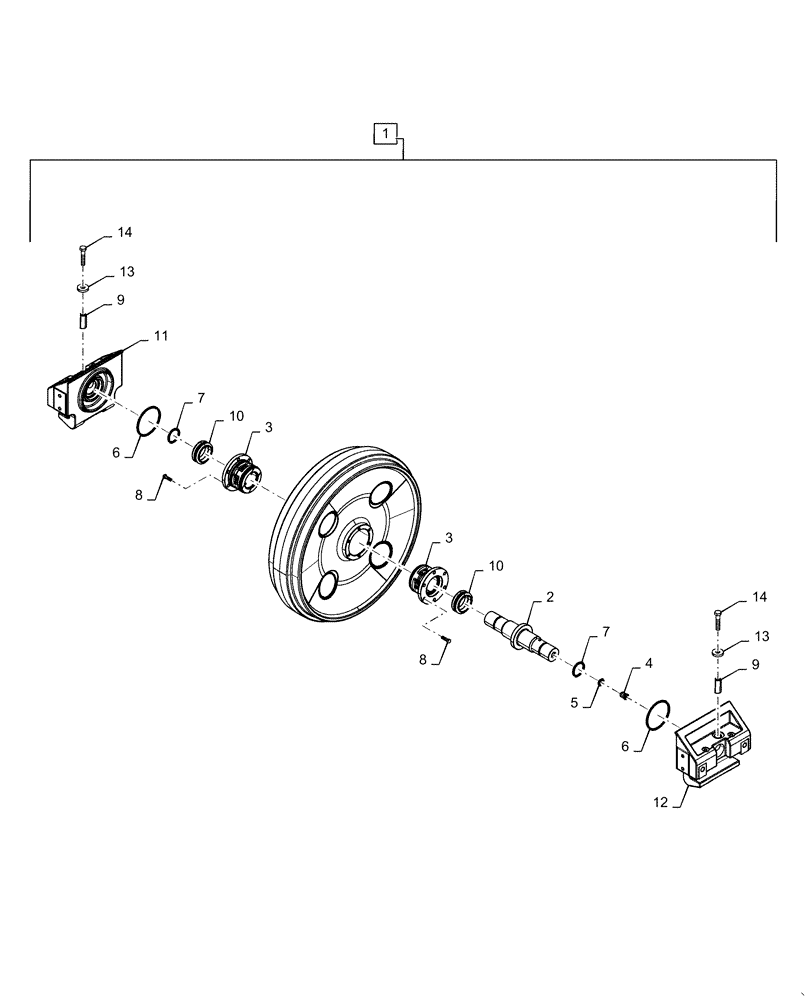

Запчасти Case 1650M XLT (48.134.AA) - IDLER WHEEL ASSEMBLY (48) - TRACKS & TRACK SUSPENSION

1

87599533

IDLER WHEEL

Wheel Only Serviced in Assembly

1шт.

2

87582781

IDLE SHAFT

1шт.

3

87582782

BUSHING

Idler

2шт.

4

87580603

PLUG

1шт.

5

87580601

O-RING,17.7mm ID x 1.72mm Width

1шт.

6

87421147

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

2шт.

7

87582779

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

2шт.

8

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

12шт.

9

87582785

PIN,26mm OD x 55mm L

Conic

2шт.

10

87580614

SEAL,63.5mm ID x 82.4mm OD x 31.8mm Thk

Face

2шт.

11

87609262

BRACKET

Idler Left Hand

1шт.

12

87609263

BRACKET

Idler Right Hand

1шт.

13

87609264

WASHER

2шт.

14

87609265

SCREW,Hex, M14 x 70mm, Cl 8.8, Full Thd

2шт.
