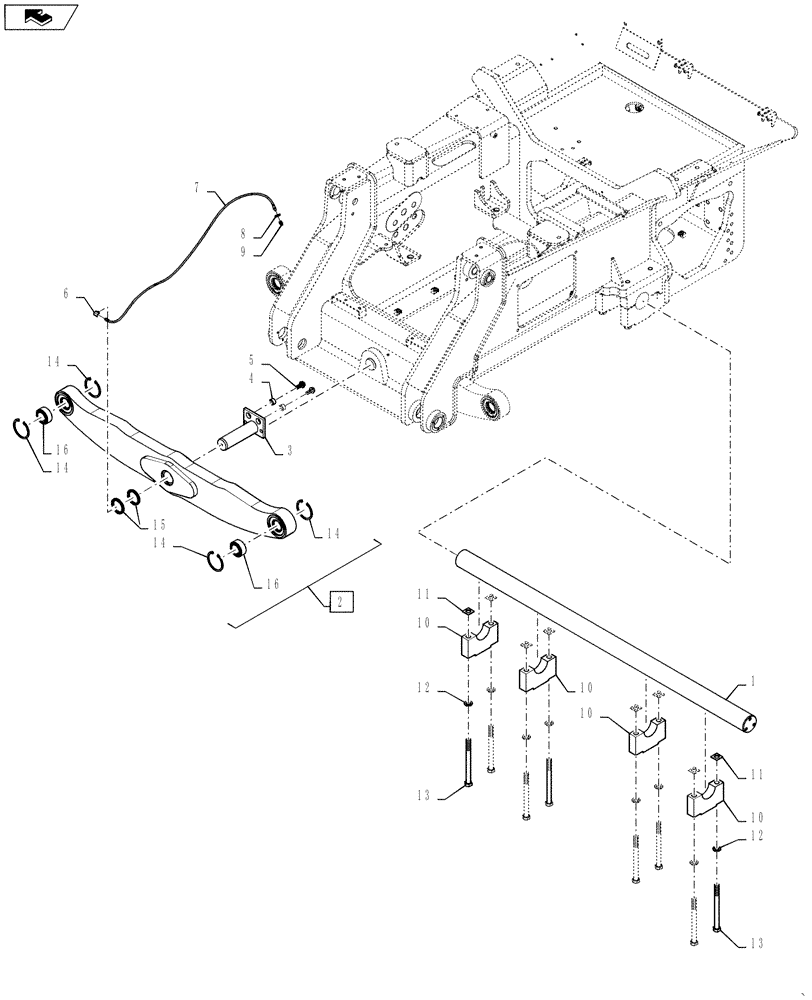

Запчасти Case 1650M XLT (48.110.AA[02]) - SUSPENSION - NARROW (48) - TRACKS & TRACK SUSPENSION

1

84557681

SHAFT

Pivot, 76 Gauge

1шт.

2

84537757

BEAM

Equalizer, LT, Incl 14 - 16

1шт.

3

84301353

SPECIAL PIN

With Center

1шт.

4

T31129

BUSHING,19.66mm ID x 31.75mm OD x 17.48mm L

Lift Link

2шт.

5

87495304

FLANGE BOLT,M6 x 55.4mm, Cl 10.9

Flange, M16 x 40 Full, 10.9

2шт.

6

84015293

ELBOW,90 Degree, 1/8"-27 Female x 1/8"-27 Male

1шт.

7

84410662

HOSE ASSY.,3.17mm ID x 1274mm L, SAE 100R7

Hydraulic, Grease

1шт.

8

F53473

LOCK NUT,1/8-27 NPSM

Lube Hose, 1/8-27 Npsm

1шт.

9

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

10

84380964

CLAMP

Lo, Pivot Shaft

4шт.

11

11062476

SNAP RING,M90, Int

4шт.

12

87016610

WASHER,25.8mm ID x 44.5mm OD x 5mm Thk

8шт.

13

87316948

BOLT,Hex, M24 x 290mm, Cl 10.9

M24 x 290 x 10.9

8шт.

14

11075676

SNAP RING,M115, Int

Regular

4шт.

15

87344647

SEALING RING

2шт.

16

87381270

SPHERICAL BEARING,60mm ID x 90mm OD x 44mm W

Radial Spherical

2шт.
