(48.100.AD[12]) - TRACK ASSEMBLY 24" CELT

Запчасти Case 1650M XLT (48.100.AD[12]) - TRACK ASSEMBLY 24" CELT (48) - TRACKS & TRACK SUSPENSION

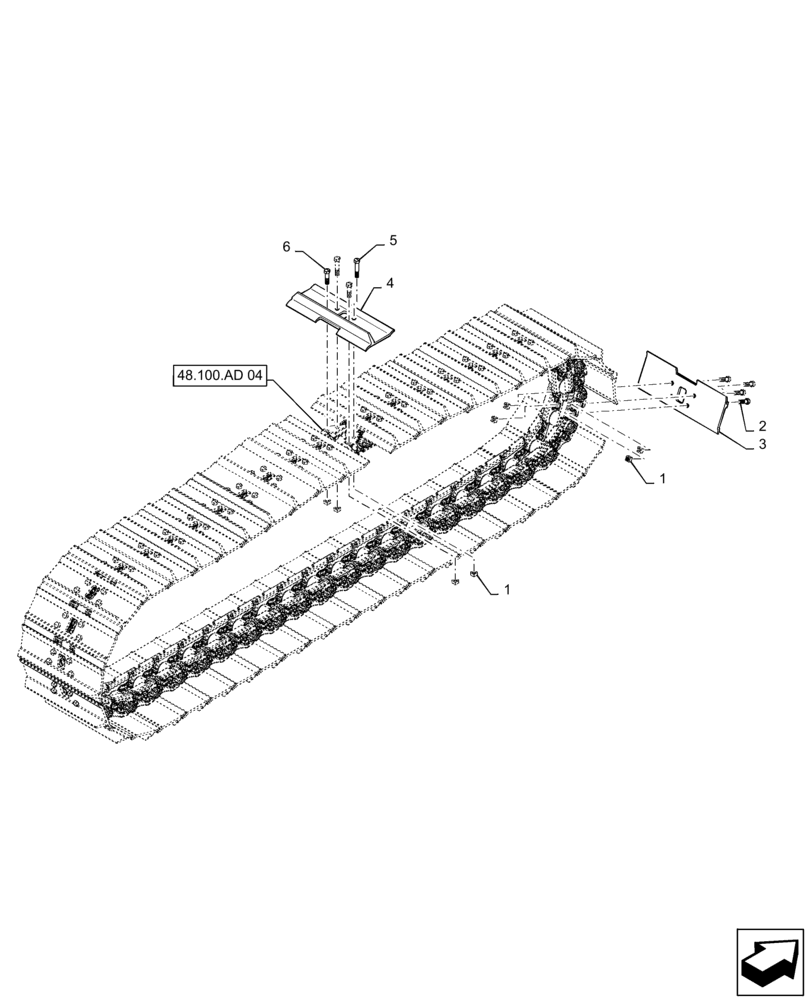

Схема запчастей Case 1650M XLT - (48.100.AD[12]) - TRACK ASSEMBLY 24" CELT (48) - TRACKS & TRACK SUSPENSION
48.100.ad 04
5
4
2
1
3
1
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87582723

SQUARE NUT

3/4-16 Square Track

176шт.

2

87582726

BOLT

3/4-16 Track

176шт.

3

87582748

TRACK SHOE

24 1 Bar, Center Track, Open

44шт.

4

87582772

TRACK SHOE

24 1 Bar, Master Center Track, Open

1шт.

5

87582725

BOLT,Hex, 3/4" - 16 x 75mm

Leading Master Shoe

2шт.

6

87582724

BOLT,Hex, 3/4" - 16 x 99mm

Follow Master Shoe

2шт.
