(48.100.AD[09]) - TRACK ASSEMBLY 34" CLT

Запчасти Case 1650M WT/LGP (48.100.AD[09]) - TRACK ASSEMBLY 34" CLT (48) - TRACKS & TRACK SUSPENSION

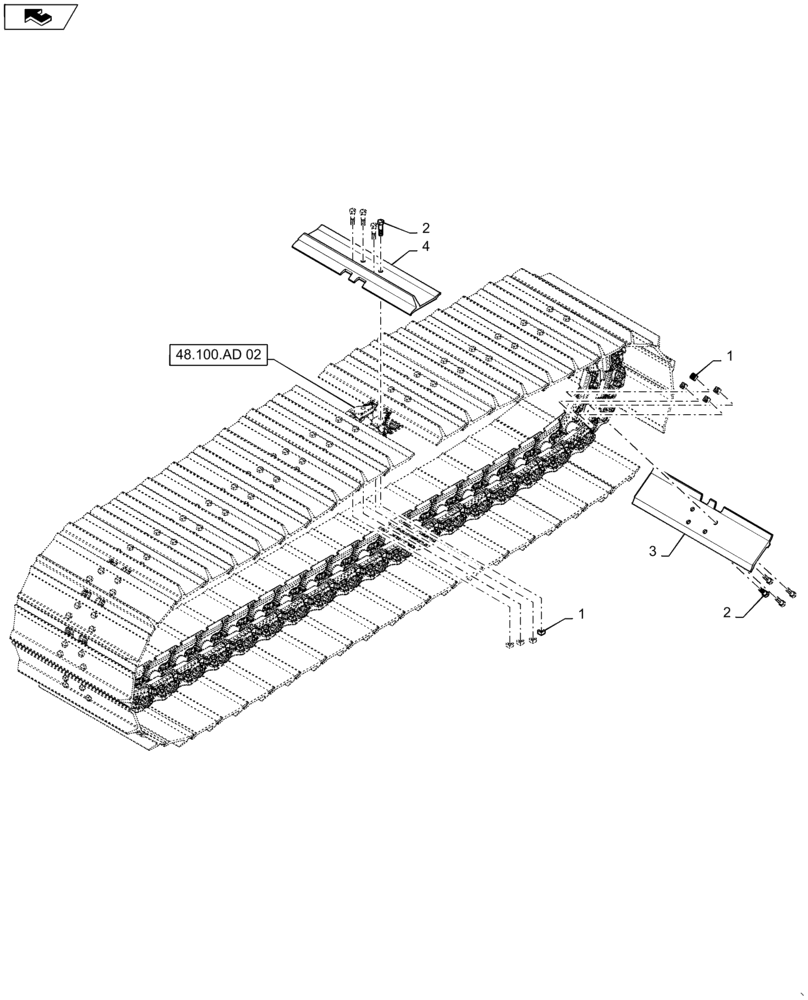

Схема запчастей Case 1650M WT/LGP - (48.100.AD[09]) - TRACK ASSEMBLY 34" CLT (48) - TRACKS & TRACK SUSPENSION
48.100.ad 02
2
2
4
home
1
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87582723

SQUARE NUT

3/4-16 Square Track

176шт.

2

87582726

BOLT

3/4-16 Track

176шт.

3

87582747

TRACK SHOE

34 1 Bar, Closed

44шт.

4

87582771

TRACK SHOE

34 1 Bar, Master, Closed

1шт.
