Запчасти Case 1650M WT/LGP (39.100.AB[03]) - FRAME WIDE (39) - FRAMES AND BALLASTING

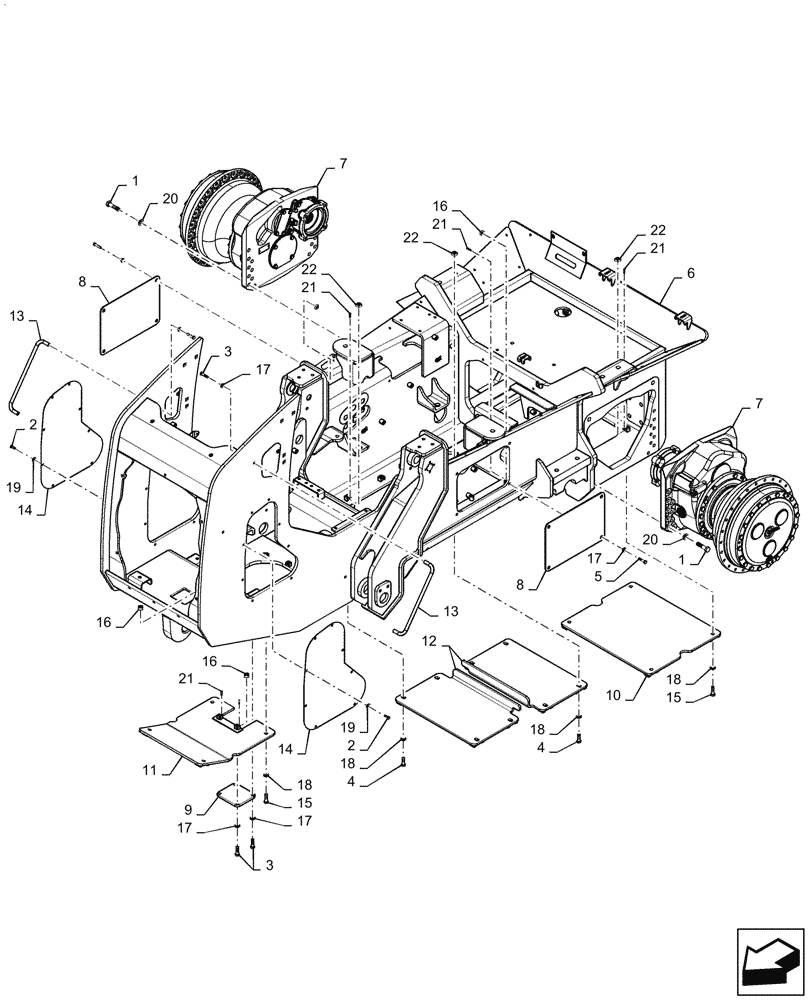

Схема запчастей Case 1650M WT/LGP - (39.100.AB[03]) - FRAME WIDE (39) - FRAMES AND BALLASTING
22
19
21
20
22
21
19
12
8
1
21
6
21
17
15
1
18
15
17
11
16
18
7
3
16
22
2
18
14
8
13
7
4
5
9
4
18
20
17
10
14
13
3
2
16
17

Артикул

Название

Примечание

Количество

1

608-20080

BOLT,Hex, Lock, M20 x 80, Cl 10.9

36шт.

2

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

16шт.

3

337476

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

8шт.

4

412398

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

8шт.

5

9706702

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

8шт.

6

47748151

FRAME

Painted

1шт.

7

47887686

FINAL DRIVE

Hub Assy

2шт.

8

84375567

COVER

Fender

2шт.

9

84375837

PLATE

Oil Drain Cover

1шт.

10

84530201

COVER PLATE

W/ Rear Belly Pan

1шт.

11

84530204

COVER PLATE

W/ Front Belly Pan

1шт.

12

84544923

PLATE

Belly Pan Bracket

2шт.

13

84544970

HANDLE

Narrow Frame

2шт.

14

84578277

COVER

Center Box

2шт.

15

86837482

BOLT,Hex, M16 x 55, 10.9, Full Thd

8шт.

16

87447306

SQUARE NUT,M12 x 21mm x 21mm x 11mm H ZND Cl 5A

12шт.

17

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

16шт.

18

87655044

SPECIAL WASHER,17.75mm ID x 31.50mm OD x 4.20mm, HTS Boron, ZNM

16шт.

19

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

16шт.

20

87655047

SPECIAL WASHER,21.25mm ID x 38.10mm OD x 4.20mm Thk

36шт.

21

336371A1

PIN,4.88mm OD x 14.23mm L

Nut Retainer

28шт.

22

405737A2

SQUARE NUT,M16 x 26mm x 26mm x 16mm H ZND CL 5A

16шт.

Выбрано товаров: 22
