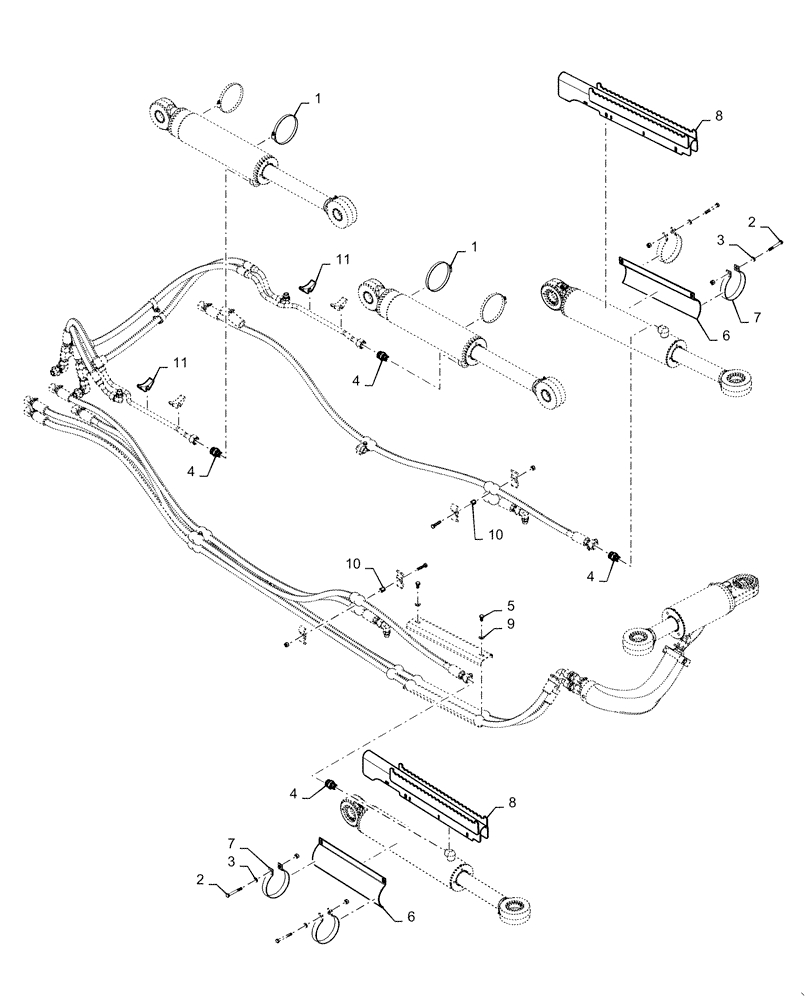

Запчасти Case 1650M WT/LGP (35.741.AJ[03]) - LIFT CYLINDER XLT LGP (35) - HYDRAULIC SYSTEMS

1

214-1496

HOSE CLAMP,#96, 5.56" - 6.5", Type F Worm

4шт.

2

814-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

4шт.

3

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

8шт.

4

9840534

HYD CONNECTOR,1-3/16" - 12 ORFS x 7/8" - 14 ORB

4шт.

5

9861444

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9

2шт.

6

47444465

GUARD

2шт.

7

47461431

CLAMP,135mm

4шт.

8

47531943

GUARD

2шт.

9

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

2шт.

10

436110A1

SPACER

2шт.

11

142787

RETAINER

4шт.
