Запчасти Case 1650M WT/LGP (35.741.AJ[02]) - LIFT CYLINDER XLT LGP (35) - HYDRAULIC SYSTEMS

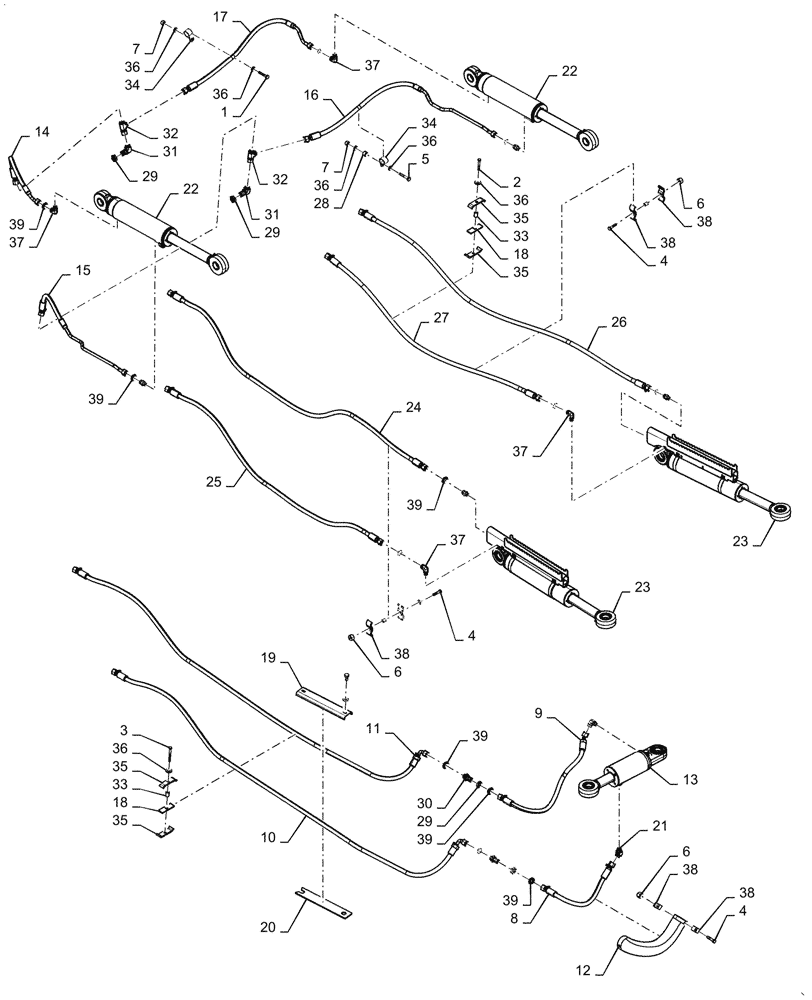

Схема запчастей Case 1650M WT/LGP - (35.741.AJ[02]) - LIFT CYLINDER XLT LGP (35) - HYDRAULIC SYSTEMS
22
19
25
7
12
33
30
1
15
39
36
37
31
39
34
32
6
3
37
24
28
38
39
36
35
22
11
36
37
14
9
2
35
38
26
8
39
7
16
4
35
27
29
18
32
18
39
38
36
20
33
36
31
10
21
5
38
36
39
17
4
29
23
35
6
34
38
6
37
29
23
4
13

Артикул

Название

Примечание

Количество

1

43129

BOLT,Hex, M8 x 1.25 x 40mm, LH Thd, Cl 8.8

1шт.

2

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

3

43133

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

1шт.

4

325829

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

3шт.

5

386045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

1шт.

6

412141

NUT,M10 x 1.5, Cl 8

7шт.

7

412250

NUT,M8 x 1.25, Cl 8

2шт.

8

47724096

HOSE

Tilt

1шт.

9

47445362

HOSE,19.05mm ID x 763.3mm L, SAE 100R16

Tilt

1шт.

10

47445363

HOSE,19.05mm ID x 1076.7mm L, SAE 100R16

Tilt Cylinder Head End

1шт.

11

47445407

HOSE,19.05mm ID x 3383mm L, SAE 100R16

Tilt Cylinder Head End

1шт.

12

47446164

SLEEVE,68mm ID x 738mm L

Protective

1шт.

13

47446374

HYDRAULIC CYLINDER,Double Acting, 63.5mm Rod, 148.4mm Stroke

Tilt

1шт.

13

47446374R

REMAN-HYD CYLINDER

Tilt

1шт.

13

47446374C

CORE-HYD CYLINDER

Return Number

1шт.

14

47458147

HYD TUBE

Lift Tube End Right Hand

1шт.

15

47458149

TUBE

Lift Rod End Right Hand

1шт.

16

47458151

TUBE

Lift Rod End Left Hand

1шт.

17

47458154

TUBE

Lift Tube End Left Hand

1шт.

18

47496506

PLATE

Spacer

2шт.

19

47549209

GUARD

Tilt Lines

1шт.

20

47549213

GUARD

Tilt Lines

1шт.

21

84401339

45 ELBOW

1шт.

22

84402335

LIFT CYLINDER,Double Acting, 63.5mm Rod, 428.8mm Stroke

Lift

2шт.

22

84402335R

REMAN-HYD CYLINDER

Lift

2шт.

22

84402335C

CORE-HYD CYLINDER

Return Number

2шт.

23

84402336

HYDRAULIC CYLINDER,Double Acting, 63.5mm Rod, 502.7mm Stroke

Angle

2шт.

23

84402336R

REMAN-HYD CYLINDER

Angle

2шт.

23

84402336C

CORE-HYD CYLINDER

Return Number

2шт.

24

84539542

HYDRAULIC HOSE,19.05mm ID x 2740mm L, SAE 100R16

Angle Rod End Right Hand

1шт.

25

84539543

HYDRAULIC HOSE,19.05mm ID x 2290mm L, SAE 100R16

Angle Cylinder Right Hand

1шт.

26

84539544

HYDRAULIC HOSE,19.05mm ID x 2860mm L, SAE 100R16

Angle Rod End Left Hand

1шт.

27

84539545

HYDRAULIC HOSE,19.05mm ID x 2125mm L, SAE 100R16

Angle Cylinder Left Hand

1шт.

28

86610677

SPACER,10.3mm ID X 19.05mm OD X 14.3mm L

Tube

1шт.

29

86639062

BHD LOCK NUT,1-3/16"-12 ORFS, Bulkhead

4шт.

30

86639064

UNION,1-3/16"-12 ORFS, Bulkhead

2шт.

31

86837484

ELBOW,90 Degree, 1 3/16"-12. ORFS, Blkhd

2шт.

32

87016915

TEE,1-3/16"-12 ORFS x 13.9mm ORB

2шт.

33

87036413

SPACER,10.34mm ID x 15.88mm OD x 23.8mm L

3шт.

34

87312719

COLLAR,31.7mm, Coat, 11.9mm Bolt Hole, P Type

2шт.

35

87420673

HOSE CLAMP

3шт.

36

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

6шт.

37

87656136

HYD CONNECTOR

Elbow

5шт.

38

434130A1

HOSE CLAMP

6шт.

39

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

24шт.

Выбрано товаров: 45
