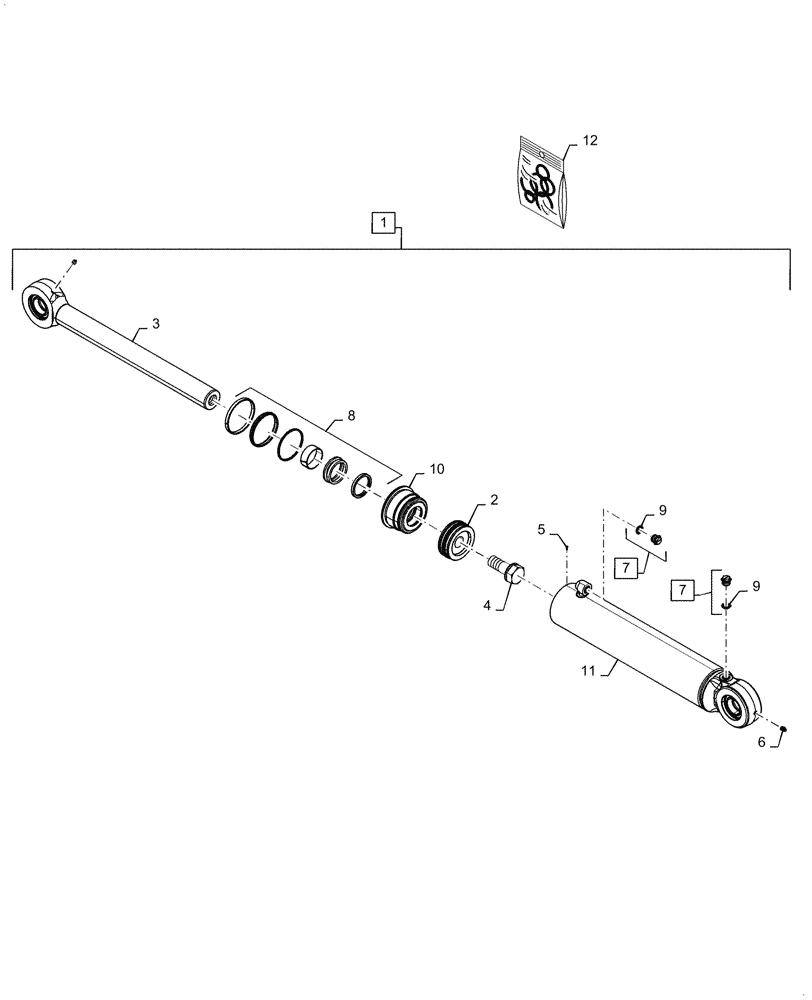

Запчасти Case 1650M WT/LGP (35.741.AJ[01]) - ANGLE, HYDRAULIC CYLINDER (35) - HYDRAULIC SYSTEMS

1

84402336

HYDRAULIC CYLINDER,Double Acting, 63.5mm Rod, 502.7mm Stroke

Angle Cylinder, Incl 2 - 11

2шт.

2

NSS

NOT SOLD SEPARAT

Gland, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Rod Eye, Incl in 1

1шт.

4

86982443

SPECIAL BOLT,1" 3/8 x 3.50 L

1шт.

5

G109395

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

6

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

7

353-780

PLUG,Sltd Hd, 7/8"-14, w/O-Ring

Incl 9

2шт.

8

84479825

SEAL KIT

1шт.

9

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Incl in 7

2шт.

10

NSS

NOT SOLD SEPARAT

Piston, Pack

1шт.

11

NSS

NOT SOLD SEPARAT

Cylinder Body, Incl in 1

1шт.

12

84479825

SEAL KIT

Angle Cylinder

1шт.

Incl 1 Rod Wiper, 1 Rod Seal, 1 Rod Bearing, 1 Static Head Seal, 1 Wear Ring, 1 Ring Seal, 1 Instruction Sheet

1шт.
