Запчасти Case 1650M WT/LGP (35.741.AA[03]) - HYDRAULIC CYLINDER VERTICAL BD (35) - HYDRAULIC SYSTEMS

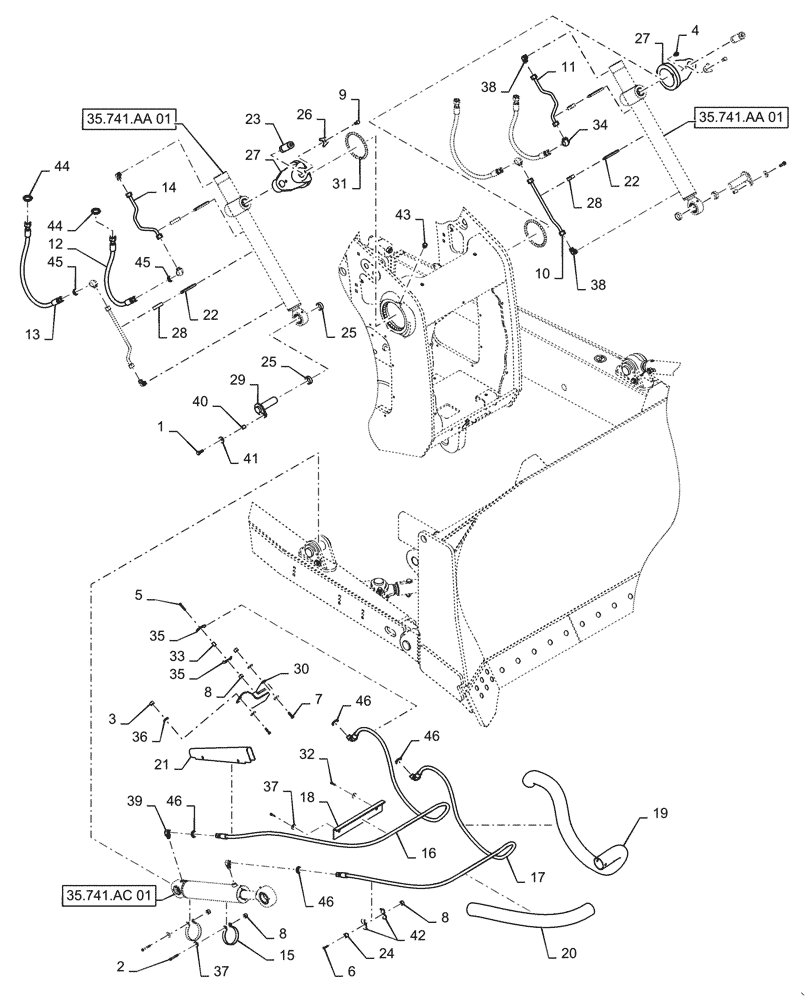

Схема запчастей Case 1650M WT/LGP - (35.741.AA[03]) - HYDRAULIC CYLINDER VERTICAL BD (35) - HYDRAULIC SYSTEMS
35.741.ac 01
32
37
46
5
37
9
40
42
45
2
33
46
27
21
8
17
22
43
24
44
23
12
41
10
28
18
16
25
38
8
6
7
1
11
26
35
31
8
29
28
20
14
4
22
39
44
45
27
46
13
19
3
30
36
25
34
38
35
15
46
35.741.aa 01
35.741.aa 01

Артикул

Название

Примечание

Количество

1

627-16045

BOLT,Hex, M16 x 2 x 45mm, Cl 10.9, Full Thd

2шт.

2

814-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

2шт.

3

829-1412

NUT,M12, Cl 10.9

2шт.

4

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

6шт.

5

120070

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

1шт.

6

120112

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

1шт.

7

412087

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

2шт.

8

412141

NUT,M10 x 1.5, Cl 8

4шт.

9

14257831

BOLT,Hex, M16 x 1.5 x 35mm, Cl 10.9

4шт.

10

47374510

HYD TUBE

2шт.

11

47929285

HYD TUBE

1шт.

12

47375290

HYDRAULIC HOSE,19.05mm ID x 895mm L, SAE 100R16

2шт.

13

47375292

HYDRAULIC HOSE,19.05mm ID x 1105mm L, SAE 100R16

2шт.

14

47929286

HYD TUBE

1шт.

15

47461431

CLAMP,135mm

2шт.

16

47569537

HOSE,15.88mm ID x 4073mm L, SAE 100R16

1шт.

17

47569539

HOSE,15.88mm ID x 3385mm L, SAE 100R16

1шт.

18

47571859

GUARD

1шт.

19

47572004

SLEEVE

1шт.

20

47572006

SLEEVE

1шт.

21

47574747

GUARD

1шт.

22

47626527

CLAMP

4шт.

23

47652409

PIN

4шт.

24

84238738

SPACER,10.34mm ID x 15.88mm OD x 12mm L

1шт.

25

84385169

BUSHING,52.32mm ID x 57.15mm OD x 15.75mm L

4шт.

26

84409095

SPECIAL WASHER

4шт.

27

84467808

CLEVIS

2шт.

28

84492992

HOSE CLAMP,5.12" - 6"

4шт.

29

84568811

PIN,50.75mm OD x 198mm L

2шт.

30

84576004

BRACKET

1шт.

31

86624946

BALL,3/4" Dia

70шт.

32

86624978

BOLT,Hex, M10 x 35mm, Cl 10.9, Full Thd

2шт.

33

87302880

SPACER,13.5mm ID x 19mm OD x 30.2mm L

1шт.

34

87378036

ELBOW

4шт.

35

87420673

HOSE CLAMP

2шт.

36

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

4шт.

37

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

6шт.

38

87656136

HYD CONNECTOR

4шт.

39

87675522

90 ELBOW,90 Degree 1"-14 x 7/8"-14 Adj ORFS

2шт.

40

419041A1

SPACER

2шт.

41

419223A1

WASHER

2шт.

42

434130A1

HOSE CLAMP

2шт.

43

D28481

PLUG

4шт.

44

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

2шт.

45

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

46

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

4шт.

Выбрано товаров: 46
