Запчасти Case 1650M WT/LGP (35.525.AA[02]) - DIAGNOSTIC HOSE (35) - HYDRAULIC SYSTEMS

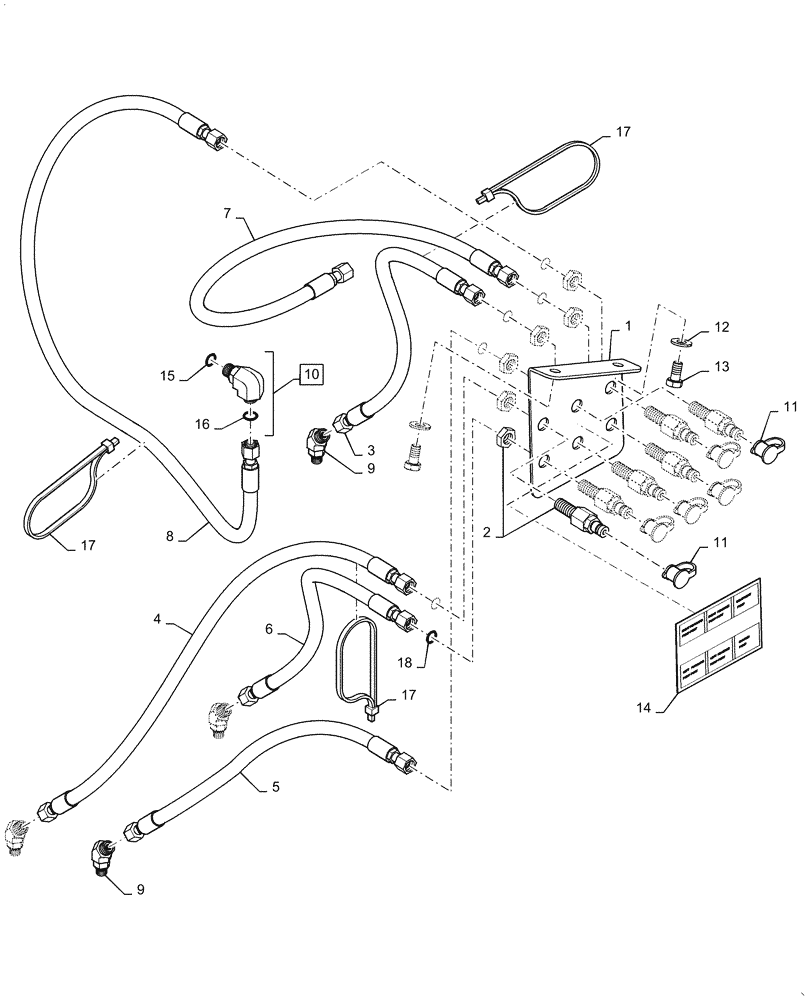

Схема запчастей Case 1650M WT/LGP - (35.525.AA[02]) - DIAGNOSTIC HOSE (35) - HYDRAULIC SYSTEMS
3
11
6
5
9
1
8
17
16
2
11
7
17
14
18
13
15
10
4
9
12
17

Артикул

Название

Примечание

Количество

1

87604302

MOUNTING PLATE

Diagnostic

1шт.

2

47376296

NIPPLE

Diagnostic Bulkhead

6шт.

3

47594710

HOSE

Diagnostic Left Reverse

1шт.

4

47595361

HOSE

Diagnostic Right Forward

1шт.

5

47595372

HOSE

Diagnostic Right Reverse

1шт.

6

47594913

HOSE

Diagnostic Left Forward

1шт.

7

47547429

HOSE

Diagnostic Charge Pressure

1шт.

8

47548478

HOSE,6.35mm ID x 1374mm L, SAE 100R16

Diagnostic Equipment

1шт.

9

201-331

ELBOW,45 Degree, 9/16"-18 x 7/16"-20. Adj, ORFS

4шт.

10

201-303

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 7/16" - 20 Male ORB

Incl 15, 16

1шт.

11

H434163

DUST CAP

6шт.

12

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

M10 x 10.65 x 23.0 x 2.2 Hts Boron

2шт.

13

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

2шт.

14

87435632

DECAL

Diagnostics

1шт.

15

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

7шт.

16

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

17

L18331

CABLE TIE,375.9mm L, Nylon, Black

7шт.

18

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

6шт.

Выбрано товаров: 18
