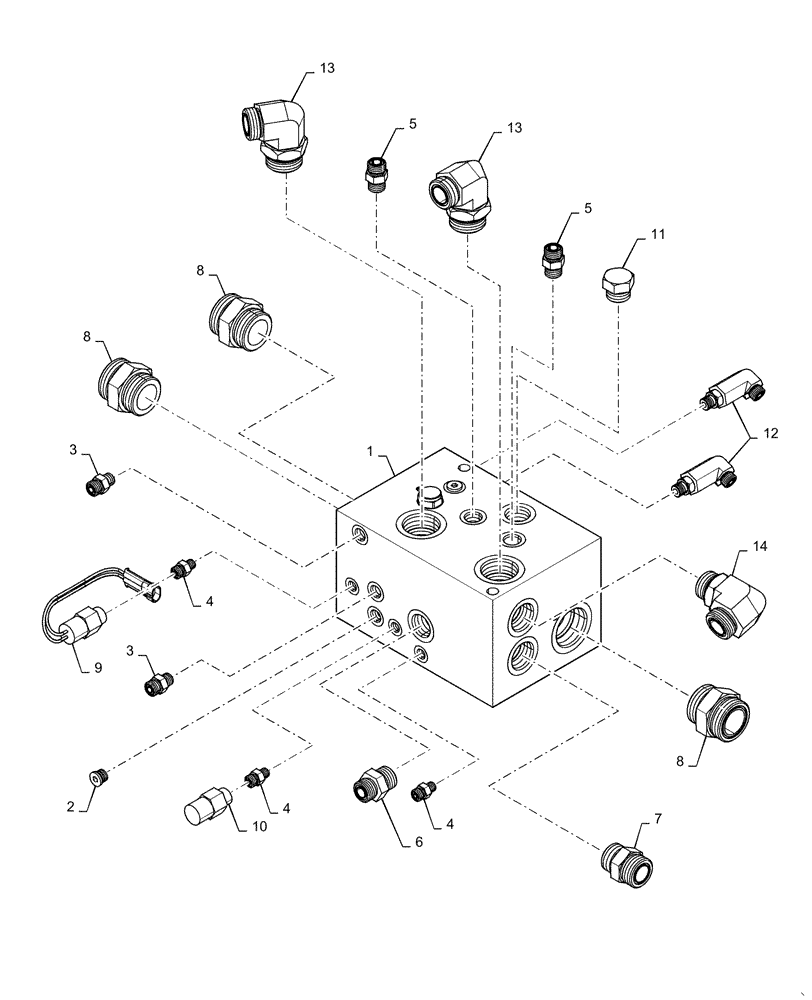

Запчасти Case 1650M WT/LGP (29.218.AT[01]) - MANIFOLD VALVE (29) - HYDROSTATIC DRIVE

1

84323949

MANIFOLD VALVE

Multifunction

1шт.

2

9625178

PLUG,9/16" - 18 ORB

Hex Socket

1шт.

3

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

2шт.

4

87681202

HYD CONNECTOR,9/16" - 18 ORFS x 7/16" - 20 ORB

3шт.

5

9992305

HYD CONNECTOR,13/16" - 16 ORFS x 3/4" - 16 ORB

2шт.

6

83962539

HYD CONNECTOR,1" - 14 ORFS x 1-1/16 - 12 ORB

1шт.

7

9824055

HYD CONNECTOR,1-7/16" - 12 ORFS x 1-5/16" - 12 ORB

1шт.

8

201-148

ELBOW UNION

3шт.

9

87403648

PRESSURE SWITCH

1шт.

10

87368476

PRESSURE SWITCH

1шт.

11

163410

PLUG,1-1/16" - 12 ORB

1шт.

12

9840601

ELBOW,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

2шт.

13

86511661

90 ELBOW,Adj, 1 7/16"-12 ORFS x 1 5/8"-12" ORB

2шт.

14

9846955

90 ELBOW,1-7/16"-12 ORFS x 1-5/16"-12 ORB

1шт.
