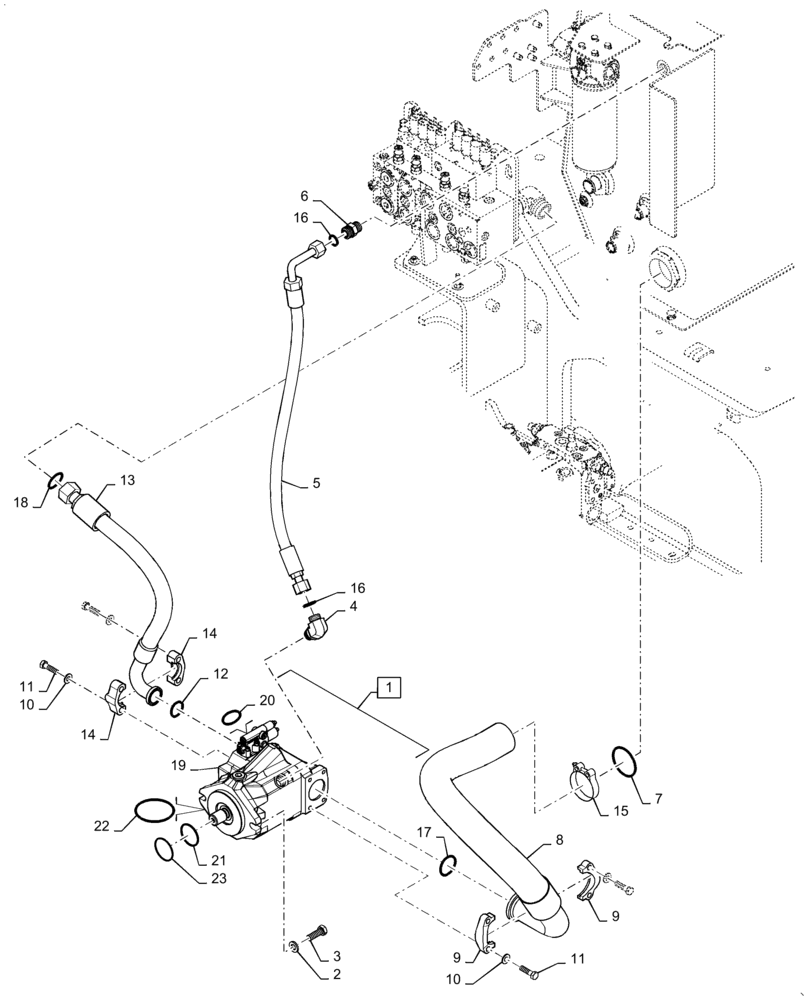

Запчасти Case 1650M WT/LGP (29.218.AO[02]) - HYDRAULIC EQUIPMENT PUMP (29) - HYDROSTATIC DRIVE

1

47575328

HYDROSTATIC PUMP,87 CC

Incl 19 - 23

1шт.

2

86625266

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

3

86508624

BOLT,Hex, M16 x 45mm, Cl 10.9

2шт.

4

9846848

90 ELBOW,1-3/16"-12 ORFS x 1-1/16"-12 ORB

1шт.

5

47473631

HOSE ASSY.,19.05mm ID x 893.5mm L, SAE 100R1

1шт.

6

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

1шт.

7

87421143

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

1шт.

8

47473815

HOSE ASSY.,63mm ID x 1124.5mm L, SAE 100R4

1шт.

9

L14386

CLAMP

2шт.

10

86632589

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

8шт.

11

9790095

BOLT,1/2" - 13 x 1-3/4", Gr 8

8шт.

12

235757

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

1шт.

13

47510446

HOSE,31.75mm ID x 725mm L, SAE 100R12

1шт.

14

87680118

CLAMP

2шт.

15

214-2164

CLAMP,#64, 2.87"-3.18", T-Bolt

1шт.

16

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

17

510204

O-RING,0.21" Thk x 2.6" ID, -334, Cl 5, 75 Duro

1шт.

18

9824051

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

19

47359201

CONTROL VALVE

Hydro Pump, Incl in Ref. 1

1шт.

20

87553152

GASKET

Control Valve, Incl in Ref. 1

1шт.

21

47359634

SEALING RING

Hydro Pump, Incl in Ref. 1

1шт.

22

47395108

SEAL KIT

Hydro Pump, Incl in Ref. 1

1шт.

23

87597267

RING

Seeger V-Ring, Incl in Ref. 1

1шт.
