Запчасти Case 1650M WT/LGP (29.100.AC[01]) - HYDROSTATIC PUMP (29) - HYDROSTATIC DRIVE

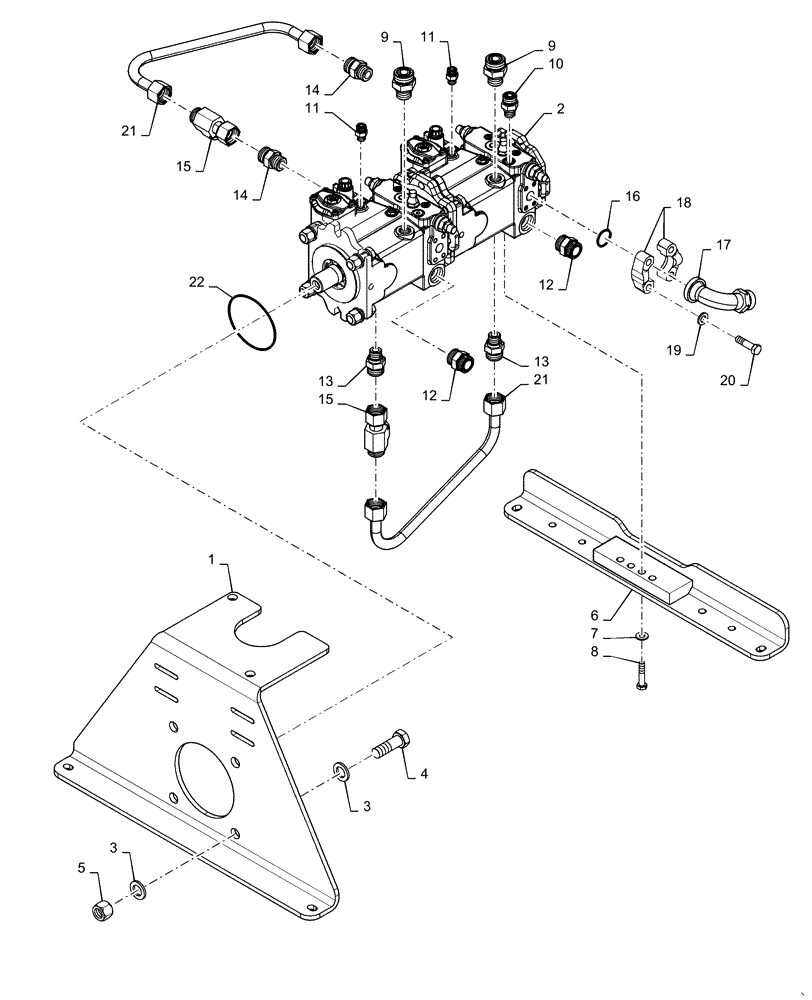

Схема запчастей Case 1650M WT/LGP - (29.100.AC[01]) - HYDROSTATIC PUMP (29) - HYDROSTATIC DRIVE
12
3
19
21
5
10
13
13
21
14
9
9
12
15
15
17
18
7
11
6
1
22
2
4
20
14
3
11
8
16

Артикул

Название

Примечание

Количество

1

84588913

BRACKET

1шт.

2

84345381

HYDROSTATIC PUMP,105 CC

1шт.

2

84345381R

REMAN-HYDROSTAT PUMP

1шт.

2

84345381C

CORE-HYDROSTAT PUMP

Return Numbner

1шт.

3

86625260

WASHER,21.8mm ID x 37.5mm OD x 4mm Thk

8шт.

4

374890

BOLT,Hex, M20 x 2.5 x 60mm, Cl 8.8, Full Thd

4шт.

5

412180

NUT,M20 x 2.5, Cl 8

4шт.

6

84599355

SUPPORT

1шт.

7

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

2шт.

8

43249

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

2шт.

9

87303844

HYD CONNECTOR,1-7/16" - 12 ORFS x 1-1/16" - 12 ORB

2шт.

10

87303844

HYD CONNECTOR,1-7/16" - 12 ORFS x 1-1/16" - 12 ORB

1шт.

11

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

2шт.

12

9840325

HYD CONNECTOR,1 11/16"-12 ORFS x 1 5/8"-12 ORB

2шт.

13

9840534

HYD CONNECTOR,1-3/16" - 12 ORFS x 7/8" - 14 ORB

2шт.

14

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

2шт.

15

47112249

TEE

2шт.

16

86529541

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

4шт.

17

47526902

90 ELBOW

4шт.

18

86980732

CLAMP

8шт.

19

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

16шт.

20

9628065

SCREW,Hex, M12 x 1.75 x 45mm, Cl 8.8

16шт.

21

84386535

HYD TUBE

2шт.

22

87713184

SNAP RING,50mm ID x 80mm OD x 7mm Thk

Shaft

1шт.

Выбрано товаров: 24
