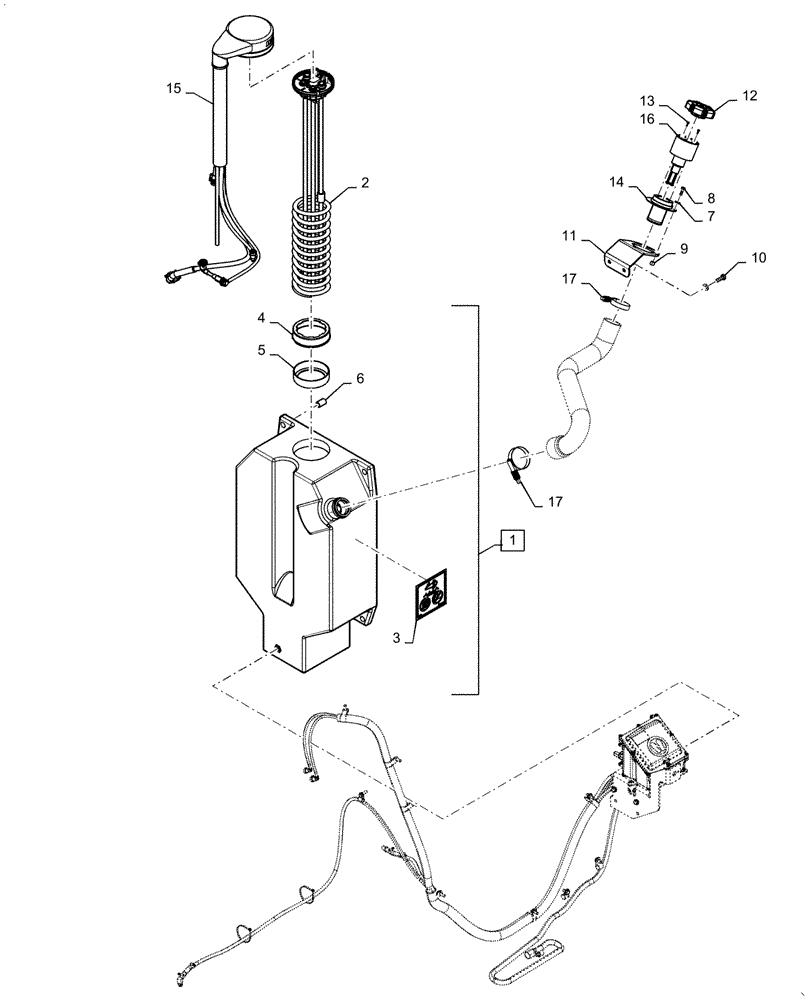

Запчасти Case 1650M WT/LGP (10.500.AA[02]) - DEF TANK (10) - ENGINE

1

47462645

RESERVOIR

Def Tank Incl 3 - 6

1шт.

2

84171379

SENDER UNIT

1шт.

3

84284896

DECAL,DEF TANK identification label

1шт.

4

84180429

BUSHING,96mm ID x 129mm OD x 32.5mm L

Outer, Sender Unit Urea

1шт.

5

84180430

BUSHING

Inner, Sender Unit Urea

1шт.

6

87302880

SPACER,13.5mm ID x 19mm OD x 30.2mm L

3/4 Tube X 30.18mm Stl

4шт.

7

495-11028

WASHER,1/4", SAE

3шт.

8

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

3шт.

9

393392

LOCK NUT,Prev Torque, M6 x 1, Cl 8

3шт.

10

9515003

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

2шт.

11

47422308

BRACKET

Fill

1шт.

12

84206552

FILLER CAP,Male

Urea Tank

1шт.

13

84246766

HEX SOC SCREW,M4 x 12mm, SST

4шт.

14

84315307

FILLER

1шт.

15

84387525

HOSE ASSY.

DEF REAR, For Filter See Callout 18

1шт.

16

87483158

NECK FILLER

Urea Tank

1шт.

17

L115548

CLAMP,57.15mm - 79.38mm

Constant Torque

2шт.

18

84153651

FILTER SCREEN

1шт.
