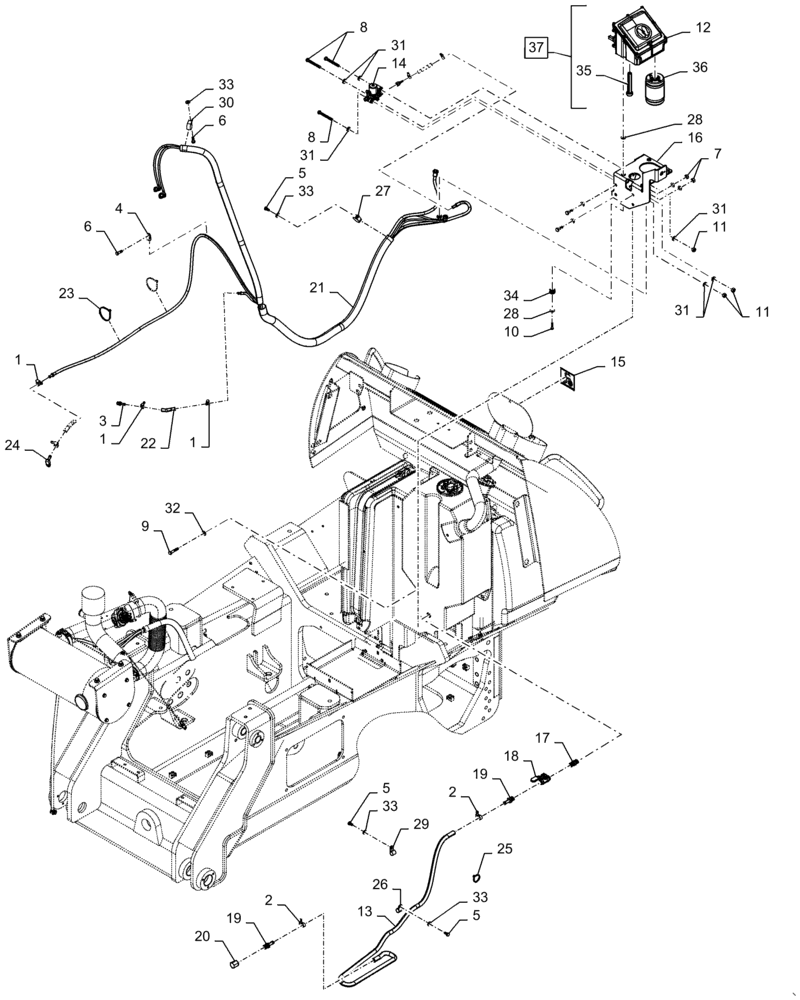

Запчасти Case 1650M WT/LGP (10.400.BI[02]) - DEF TANK (10) - ENGINE

1

214-1706

HOSE CLAMP,#06, 0.44" - 0.78", Type M Worm

6шт.

2

214-1708

HOSE CLAMP,#08, 0.5" - 0.91", Type M Worm

2шт.

3

217-380

FITTING,3/8" Hose Barb x 3/8" Male NPTF

1шт.

4

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

1шт.

5

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

5шт.

6

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

7шт.

7

100016

NUT,M10 x 1.5, Cl 8

2шт.

8

120062

BOLT,Hex, M8 x 70mm, Cl 8.8

3шт.

9

73161469

BOLT,Hex, M10 x 55mm, Cl 8.8

4шт.

10

412479

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

4шт.

11

9706690

NUT,M8 x 1.25, Cl 8

3шт.

12

84246892

MODULE

Flashed Module

1шт.

12

84246892R

REMAN-MODULE

Flashed Module

1шт.

12

84246892C

CORE-MODULE

Return Number

1шт.

13

47508268

HOSE,12.7mm ID x 1776mm L, SAE 20R3

DEF Drain

1шт.

14

84151635

HEATER VALVE

1шт.

15

84284896

DECAL,DEF TANK identification label

1шт.

16

84395621

BRACKET

DEF Supply Module

1шт.

17

47735815

NIPPLE,1/2 STR NPTF TO M18X1.5

1шт.

18

84422753

SHUT-OFF VALVE,1/2" NPT x 1/2" NPT

1шт.

19

84422999

FITTING,M12, 1/2 - 14, 66mm L, SS

Male NPTF

2шт.

20

84423014

CAP,1/2" - 14

Female NPTF

1шт.

21

84465538

HOSE ASSY.

DEF Front

1шт.

22

84527816

HOSE,9.5mm ID x 100mm L

3шт.

23

86566990

CABLE TIE,292mm OAL x 4.8mm W

Black Nylon

2шт.

24

86625228

HYD CONNECTOR,90°, 3/8" Hose x 9/16-18

1шт.

25

87000312

CABLE TIE,4.8mm W x 203.2mm OAL, Nylon

Black Nylon

1шт.

26

87032428

CLAMP,22.2mm, Coat, 10.3mm Bolt Hole, J Type

1шт.

27

87301688

CLAMP,41.2mm, Coat, P Type

Insulated

2шт.

28

87528983

WASHER,8.4mm ID x 25mm OD x 2mm Thk

8шт.

29

87530629

CLAMP,20.6mm, Coat, 11.9mm Bolt Hole, P Type

Insulated

2шт.

30

87573373

CLAMP,33.3mm, Coat, 10.3mm Bolt Hole, P Type

Insulated

4шт.

31

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

6шт.

32

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

6шт.

33

87713132

SPECIAL WASHER,10.7mm ID x 23mm OD x 2.2mm Thk

13шт.

34

434177A1

ISOLATOR

Mounting Rubber

4шт.

35

84247272

FILTER,In-Line

Urea

1шт.

36

84254852

FILTER

Element Assy, Service Kit Denox2

1шт.

37

47364111

ECU

Incl 12, 35- 36

1шт.
