Запчасти Case 1650M WT/LGP (10.400.BE[06]) - RADIATOR AND OIL COOLER (10) - ENGINE

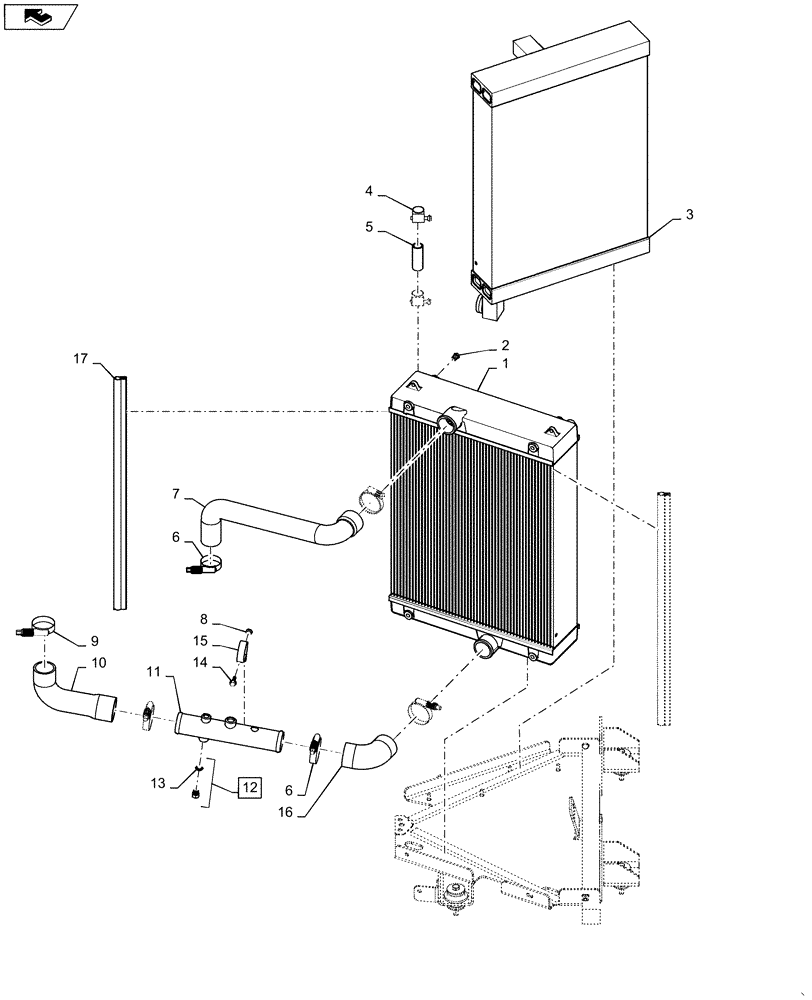

Схема запчастей Case 1650M WT/LGP - (10.400.BE[06]) - RADIATOR AND OIL COOLER (10) - ENGINE
1
7
2
10
14
6
12
15
6
16
5
8
13
17
4
home
9
11
3

Артикул

Название

Примечание

Количество

1

84262310

RADIATOR

1шт.

2

217-86

PLUG,Hex Hd, 1/4"-18, Brass

1шт.

3

84376175

COOLER ASSY.

Oil

1шт.

4

86625021

HOSE CLAMP,17.5mm - 31.7mm, Worm Gear

2шт.

5

84540654

RADIATOR HOSE,19mm ID x 76mm L

Assembly, Cooler Outlet

1шт.

6

L115548

CLAMP,57.15mm - 79.38mm

4шт.

7

84487900

HOSE

Upper

1шт.

8

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

Incl O-ring

1шт.

9

254026A1

HOSE CLAMP,44.45mm - 66.67mm

2шт.

10

84487403

HOSE

1шт.

11

84540650

TUBE

Radiator, Up

1шт.

12

76349

PLUG,9/16" - 18 ORB

Incl 13

1шт.

13

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

14

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

Valve, 1/4 NPTF Drain

1шт.

15

87573379

CLAMP,57.1mm, Coat, 13.5mm Bolt Hole, P Type

Radiator, Epdm

1шт.

16

84487901

HOSE

Radiator, Lower

1шт.

17

84540657

RUBBER WEATHERSTRIP,17mm W x 790mm L x 35mm H

2шт.

Выбрано товаров: 17
