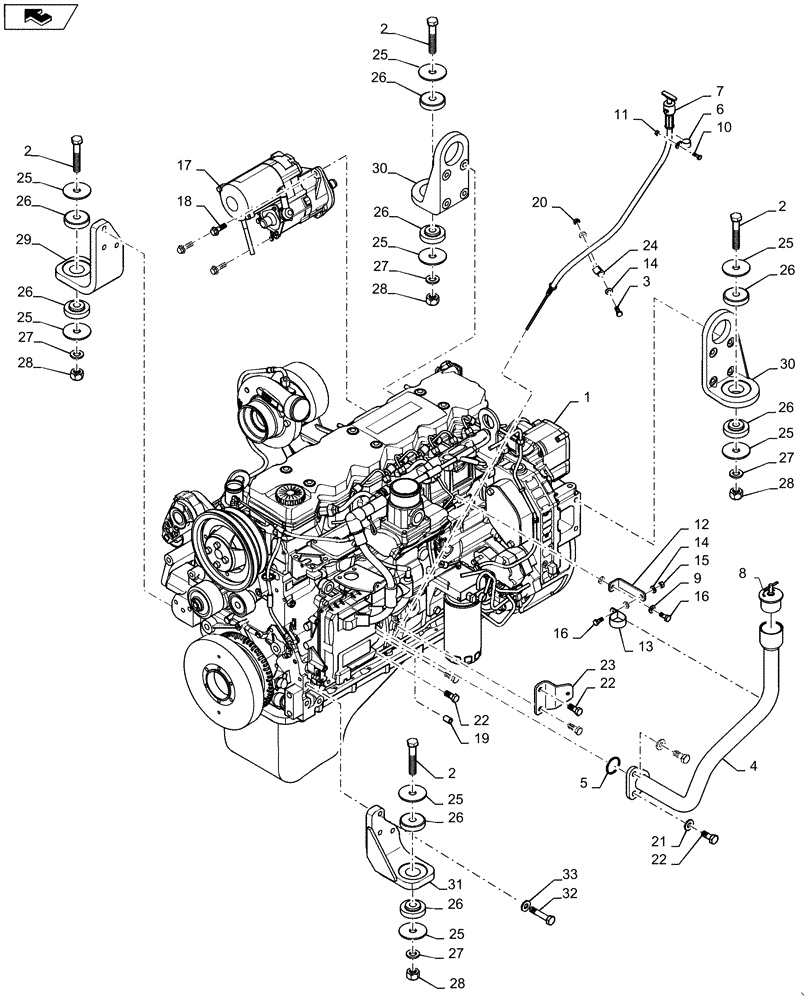

Запчасти Case 1650M WT/LGP (10.001.AK[01]) - ENGINE MOUNTING AND HARDWARE (10) - ENGINE

1

47541737

ENGINE

103KW 1150M

1шт.

1

84494089

ENGINE,121kW, 6 Cylinders, W/ Turbocharger

1650M

1шт.

1

84494089ER

REMAN-REPLACEMENT EN

1шт.

1

84494089EPAC

CORE-REPLACEMENT ENG

Return Number

1шт.

2

87550181

BOLT,Hex, M16 x 95mm, Cl 10.9

M16 x 95 10.9

4шт.

3

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

1шт.

4

84367009

TUBE

Engine Oil Fill

1шт.

5

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

Ring

1шт.

6

515-23254

CLAMP,1", Insul, 3/8" Bolt

19.0 mm M6 Bolt

1шт.

7

47406777

DIPSTICK,892mm L

Assy

1шт.

8

L115504

CAP

Filler

1шт.

9

87713130

WASHER,6.85mm ID x 12.75mm OD x 1.8mm Thk

M6, 6.85 x 12.75 x 1.8 HTS

2шт.

10

120100

BOLT,M6 x 20mm, Cl 8.8

1шт.

11

9706755

NUT,M6, Cl 8

1шт.

12

84398948

BRACKET

Oil Fill

1шт.

13

86637998

CLAMP,38.1mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

14

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

M8, 8.80 x 17.5 x 2.2 HTS

5шт.

15

9706690

NUT,M8 x 1.25, Cl 8

1шт.

16

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

17

8605784

STARTING MOTOR

7.8 KW

1шт.

17

8605784R

REMAN-STARTER

7.8 KW

1шт.

17

8605784C

CORE-STARTER

Return Number

1шт.

18

R54620

BOLT,Hex, Flange, M10 x 35mm CL 10.9

3шт.

19

87036415

SPACER,9.25mm ID x 13.72 OD x 19.05mm L

1шт.

20

43362

NUT,M8 x 1.25, Cl 10

1шт.

21

892-11012

LOCK WASHER,M12

4шт.

22

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

4шт.

23

84595634

BRACKET

Dipstick

1шт.

24

86625036

CLAMP,12.7mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

25

R49597

WASHER,17.5mm ID x 70mm OD x 4.5mm Thk

8шт.

26

R49921

RUBBER MOUNTING

8шт.

27

896-15016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

4шт.

28

100020

NUT,M16 x 2.0, Cl 8

4шт.

29

87559871

SUPPORT

1шт.

30

8500059

ENGINE MOUNT

2шт.

31

87559860

SUPPORT

1шт.

32

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

14шт.

33

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

14шт.
