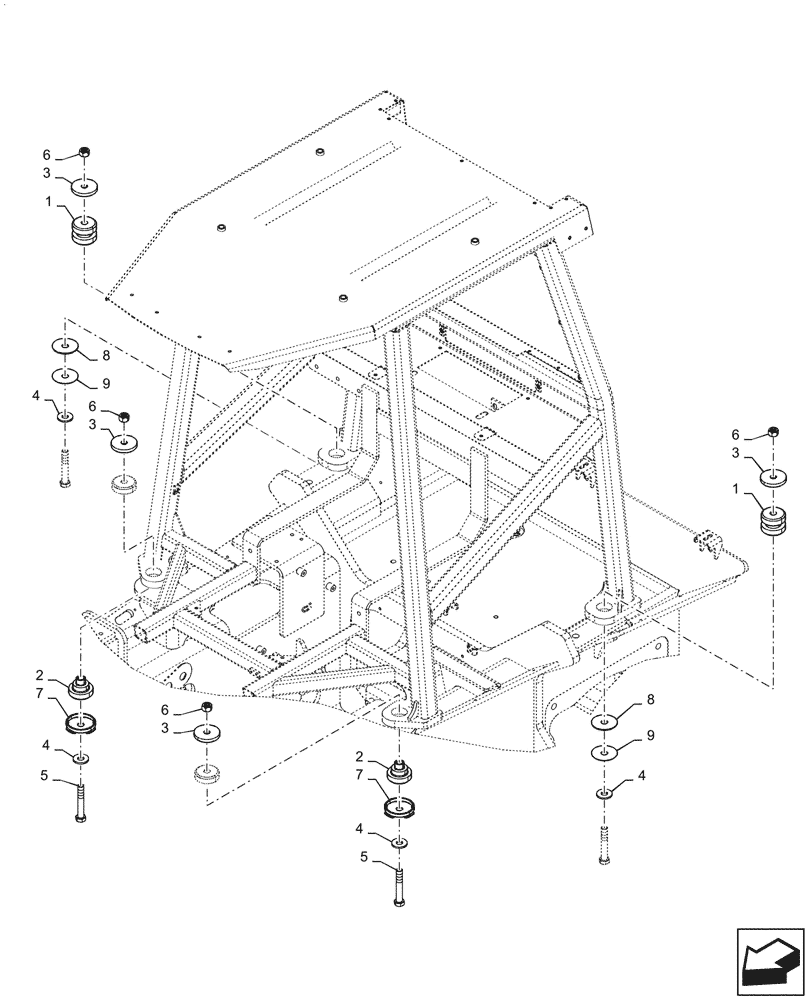

Запчасти Case 1650M WT/LGP (90.114.AQ[03]) - MOUNTING PARTS, CAB FRAME (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47561657

MOUNT

ISO, 3.5 Inch, 45 Duro, Yellow, Rear

2шт.

2

47561640

MOUNT

ISO, 3.5 Inch, 55 Duro, Green, Front

2шт.

3

47533303

SPACER,23mm ID x 95mm OD x 12mm Thk

4шт.

4

396-41094

WASHER,23.82mm ID x 57.15mm OD x 5.56mm Thk

4шт.

5

326-1488

BOLT,Hex, 7/8" - 9 x 5-1/2", Gr 8

4шт.

6

329-1014

NUT,7/8"-9, G8

4шт.

7

47561622

RING,24mm ID x 108mm OD x 16mm Thk

2шт.

8

47561620

SHIM,24mm ID x 95mm OD x .25mm Thk

2шт.

9

47570420

SHIM,24mm ID x 95mm OD x 0.1mm Thk

1шт.
