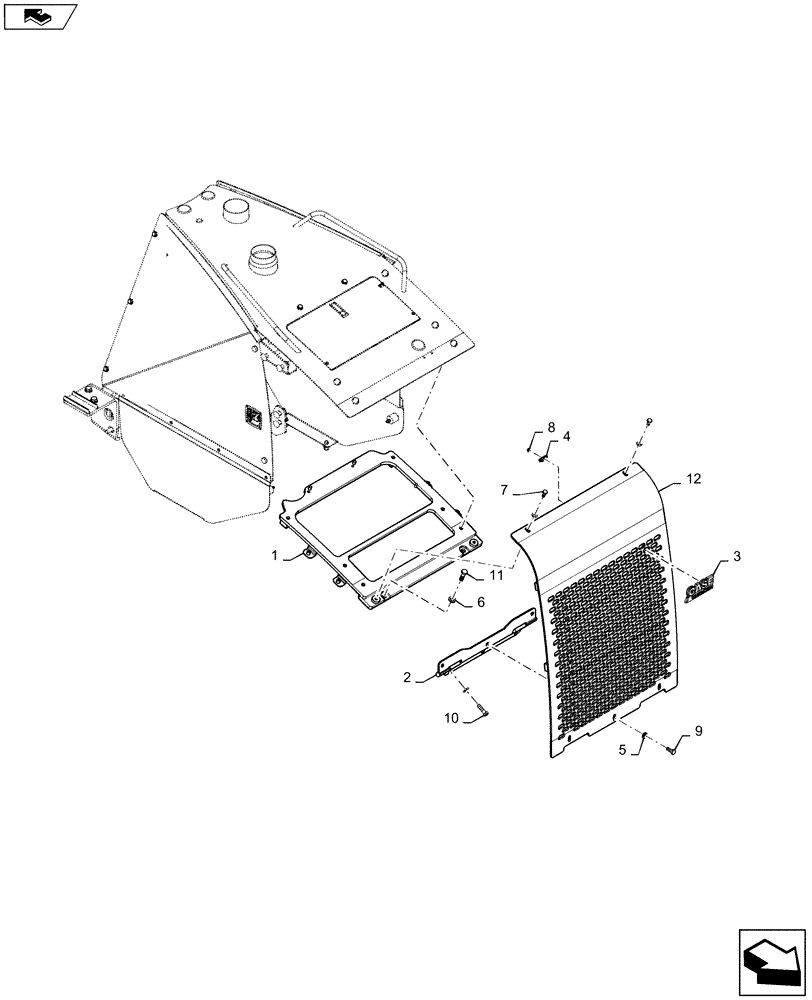

Запчасти Case 1650M WT/LGP (90.100.AB[02]) - FRONT COVER, HOOD (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84583612

SUPPORT

1шт.

2

84495476

HINGE

1шт.

3

84478049

EMBLEM

1шт.

4

84494357

MOUNTING PLATE

2шт.

5

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

8шт.

6

87655044

SPECIAL WASHER,17.75mm ID x 31.50mm OD x 4.20mm, HTS Boron, ZNM

2шт.

7

398792

SCREW,Hex, M12 x 25mm, Cl 10.9

2шт.

8

86625060

PUSH-ON NUT,Self, Threading, 1/4"

2шт.

9

43260

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

3шт.

10

412087

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

3шт.

11

412398

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

2шт.

12

47416198

GRILLE

1шт.
