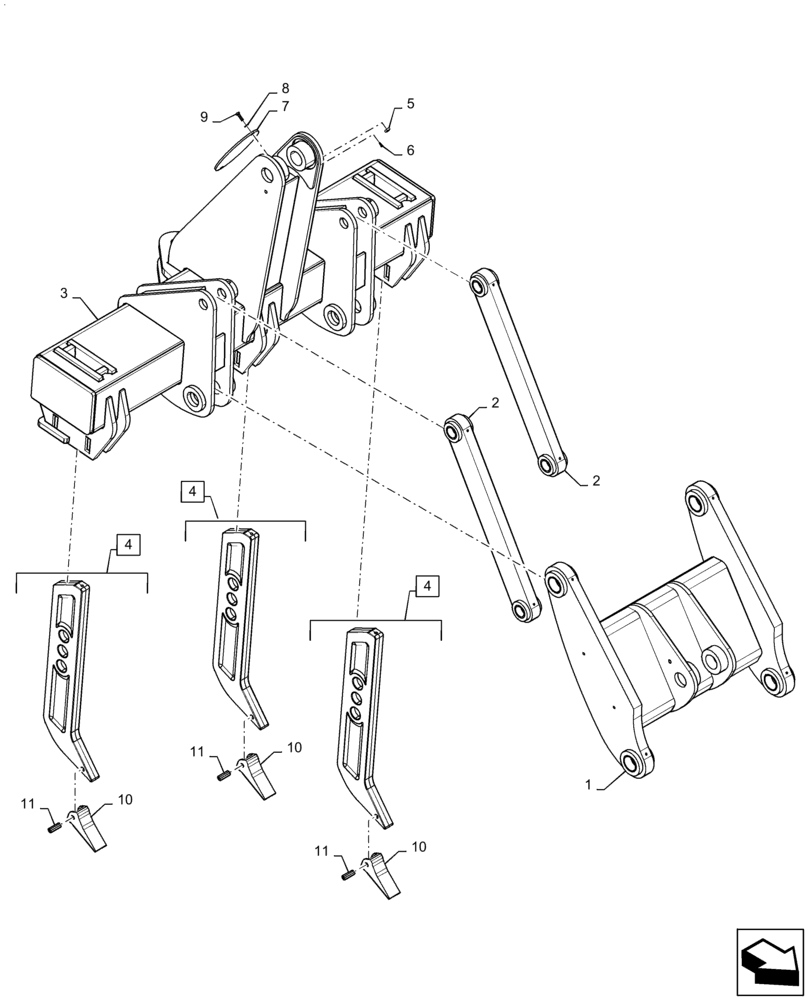

Запчасти Case 1650M WT/LGP (89.128.AC[03]) - RIPPER, MECHANICAL, STANDARD (89) - TOOLS

1

84600704

LINK

Ripper, Bottom, CE Gray

1шт.

2

84238379

LINK

Upper Bars, CEGray

2шт.

3

47685709

RIPPER

Upper Ripper Tower

1шт.

4

47717913

SHANK

Assy, CE Gray, Incl 10, 11

3шт.

5

309096A1

SQUARE NUT,Square, M10 x 1.5, LH Thd, Cl 5A

Retaining, Tower Plate Cover

2шт.

6

336371A1

PIN,4.88mm OD x 14.23mm L

Ripper Tower Plate Cover

2шт.

7

47707867

PLATE

Ripper Tower, Cover

1шт.

8

14496631

WASHER,10.5mm ID x 21mm OD x 2mm Thk

2шт.

9

86624978

BOLT,Hex, M10 x 35mm, Cl 10.9, Full Thd

2шт.

10

D55468

TOOTH

Ripper, Standard, Incl in Ref 4

3шт.

11

L32090

PIN

Retaining, Ripper Tooth, Incl in Ref. 4

3шт.
