Запчасти Case 1650M WT/LGP (48.100.AD[15]) - CLT, TRACK LINK, COMPONENTS (88) - ACCESSORIES

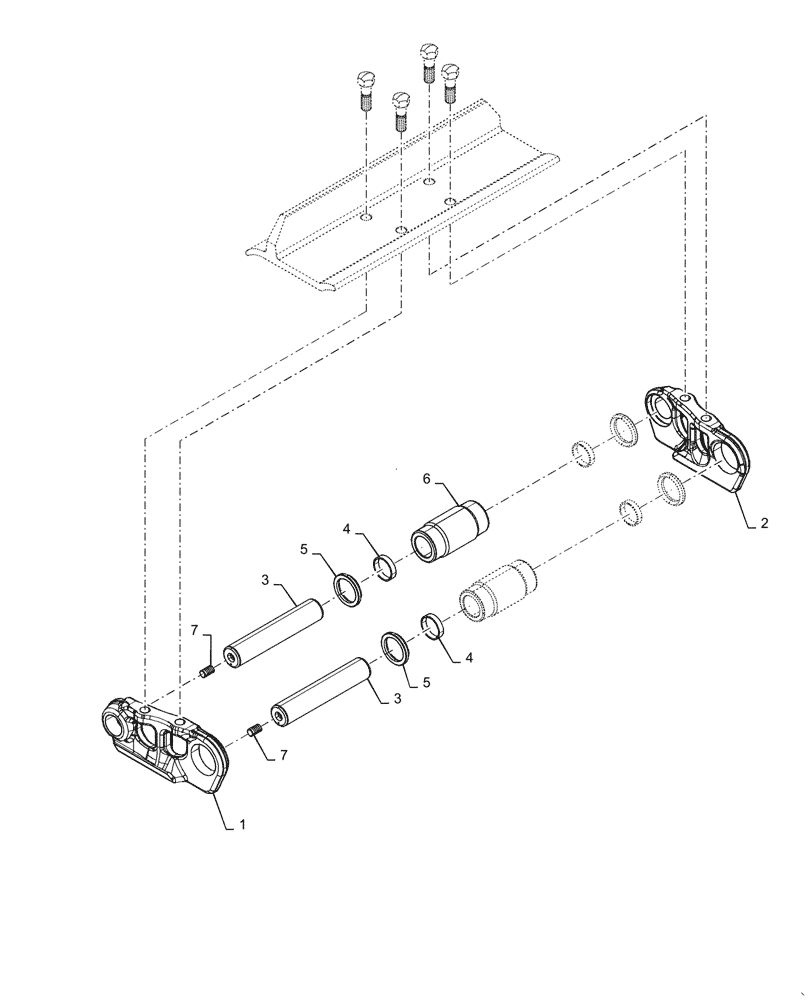

Схема запчастей Case 1650M WT/LGP - (48.100.AD[15]) - CLT, TRACK LINK, COMPONENTS (88) - ACCESSORIES
1
4
6
5
7
7
4
3
3
5
2

Артикул

Название

Примечание

Количество

1

87582719

TRACK LINK

Track Link, LH, Incl in 9

1шт.

2

87582720

TRACK LINK

Track Link, RH, Incl in 9

1шт.

3

87582716

LARGE PIN

Pin, Track, Incl in 9

2шт.

4

87582717

THRUST RING,38mm ID x 45mm OD x 11mm H

Thrust Ring, Incl in 9

4шт.

5

87582727

SEAL,55mm ID x 63mm OD x 10.7mm Thk

Seal, Track Chain, Incl in 9

4шт.

6

87582715

BUSHING,38.45mm ID x 65mm OD x 131.4mm L

Bushing, Standard, CLT, Incl in 9

2шт.

7

87582718

PLUG

Track Chain Link, Incl 1 - 8, Inst 47765951

1шт.

Выбрано товаров: 7
