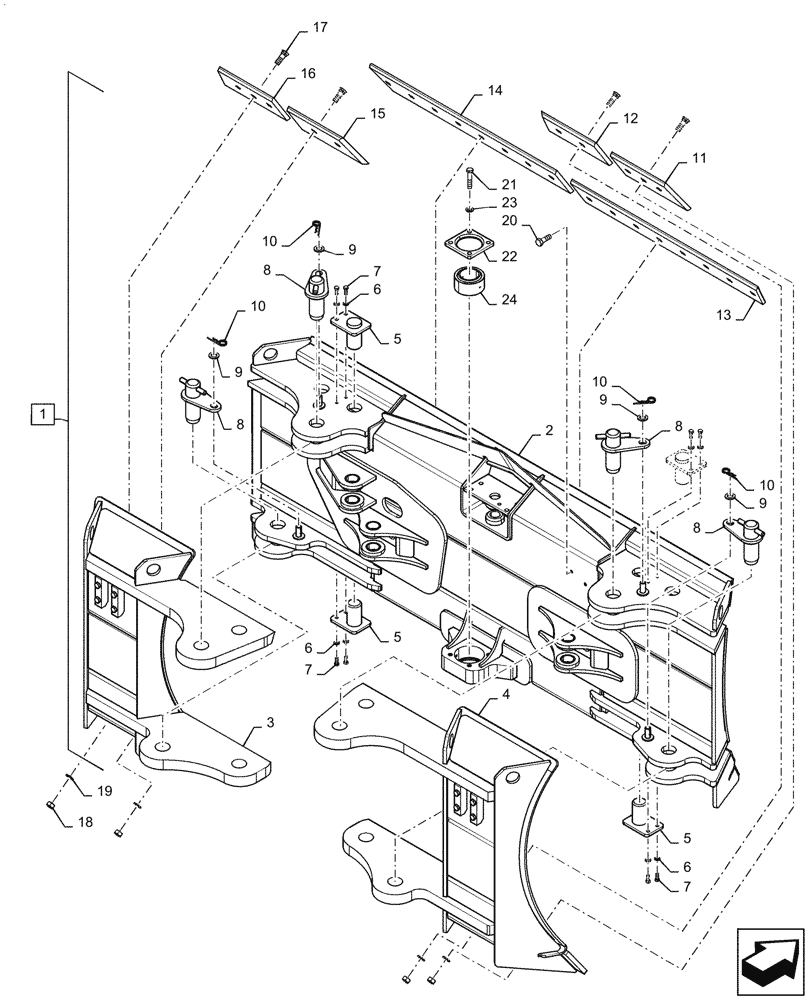

Запчасти Case 1650M WT/LGP (86.110.AD[08]) - DOZER BLADE FOLDING WT/LGP (86) - DOZER

1

47731478

DOZER BLADE

Folding, Incl 2 - 24

1шт.

2

NSS

NOT SOLD SEPARAT

Center Blade Section, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

LH Folding Edge Section, Incl in 1

1шт.

4

NSS

NOT SOLD SEPARAT

RHFolding Edge Section, Incl in Ref 1

1шт.

5

47503630

PIN

Edge Section Pivot

4шт.

6

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

8шт.

7

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

8шт.

8

47401539

PIN

Blade Fold Lock

4шт.

9

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

4шт.

10

87613336

HAIR PIN COTTER,23mm x 97mm L

Lock Pin Assy

4шт.

11

87477642

KNIFE

RH, Edge, Outer

1шт.

12

47400365

CUTTING EDGE

RH, Edge, Inner

1шт.

13

47503615

CUTTING EDGE

Central, RH

1шт.

14

47503614

CUTTING EDGE

Central, LH

1шт.

15

47400364

CUTTING EDGE

LH, Edge, Inner

1шт.

16

87477640

KNIFE

LH, Edge, Outer

1шт.

17

8273211

PLOW BOLT,Plow, M20 x 1.5 x 62mm, Cl 10.9

26шт.

18

12164321

NUT,M20 x 1.5, Cl 10

26шт.

19

14497131

WASHER,21mm ID x 37mm OD x 3mm Thk

26шт.

20

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

2шт.

21

86521733

BOLT,Hex Flg, M16 x 90mm, Cl 10.9

4шт.

22

84545666

CAP

1шт.

23

87655044

SPECIAL WASHER,17.75mm ID x 31.50mm OD x 4.20mm, HTS Boron, ZNM

4шт.

24

87314613

BUSHING

Lower Trunnion

1шт.
