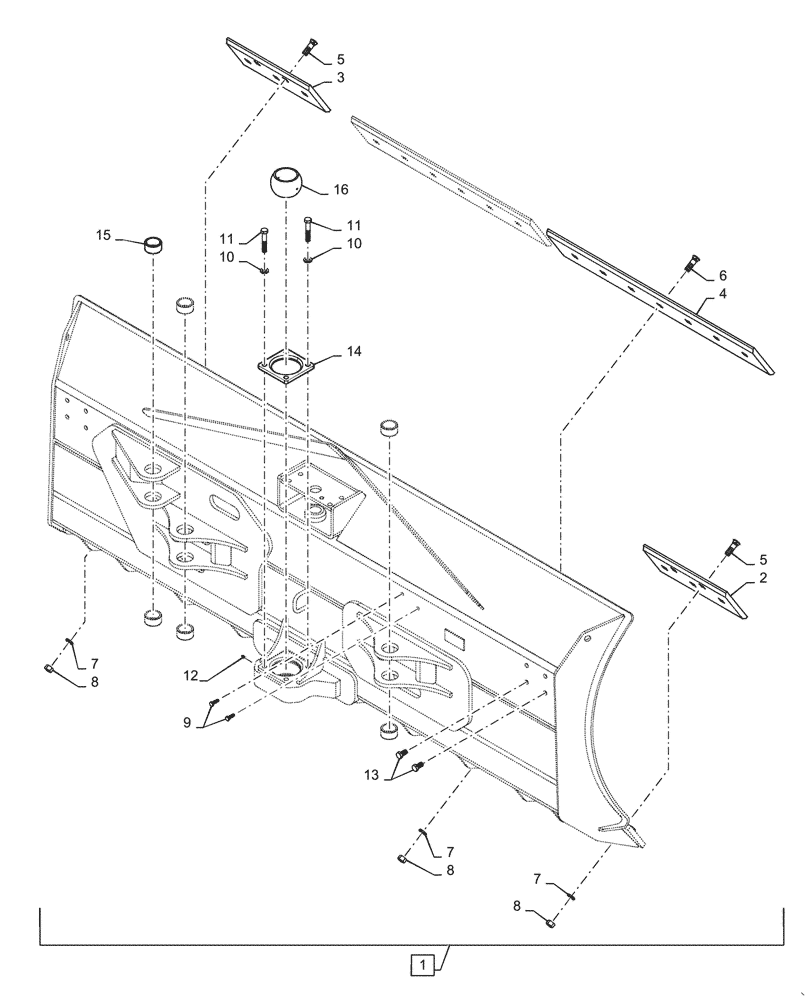

Запчасти Case 1650M WT/LGP (86.110.AD[03]) - BLADE - LPG (86) - DOZER

1

47621867

DOZER BLADE

Incl 2 - 14

1шт.

2

87477642

KNIFE

Right Hand Lateral Sharp

1шт.

3

87477640

KNIFE

Left Hand Lateral Sharp

1шт.

4

87477654

KNIFE

Center Sharp

2шт.

5

8282270

PLOW BOLT,Plow, M20 x 1.5 x 67mm, Cl 10.9

6шт.

6

8273211

PLOW BOLT,Plow, M20 x 1.5 x 62mm, Cl 10.9

20шт.

7

14497131

WASHER,21mm ID x 37mm OD x 3mm Thk

26шт.

8

12164321

NUT,M20 x 1.5, Cl 10

26шт.

9

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

2шт.

10

87655044

SPECIAL WASHER,17.75mm ID x 31.50mm OD x 4.20mm, HTS Boron, ZNM

4шт.

11

86521733

BOLT,Hex Flg, M16 x 90mm, Cl 10.9

4шт.

12

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

13

86508623

BOLT,Hex, M16 x 30mm, Cl 10.9

8шт.

14

84545666

CAP

Lower Trunnion Blade Cap

1шт.

15

87314613

BUSHING

Lower Trunnion

1шт.

16

D30756

BUSHING,51.02mm ID x 63.5mm OD x 31.8mm L

Link Assembly

6шт.
