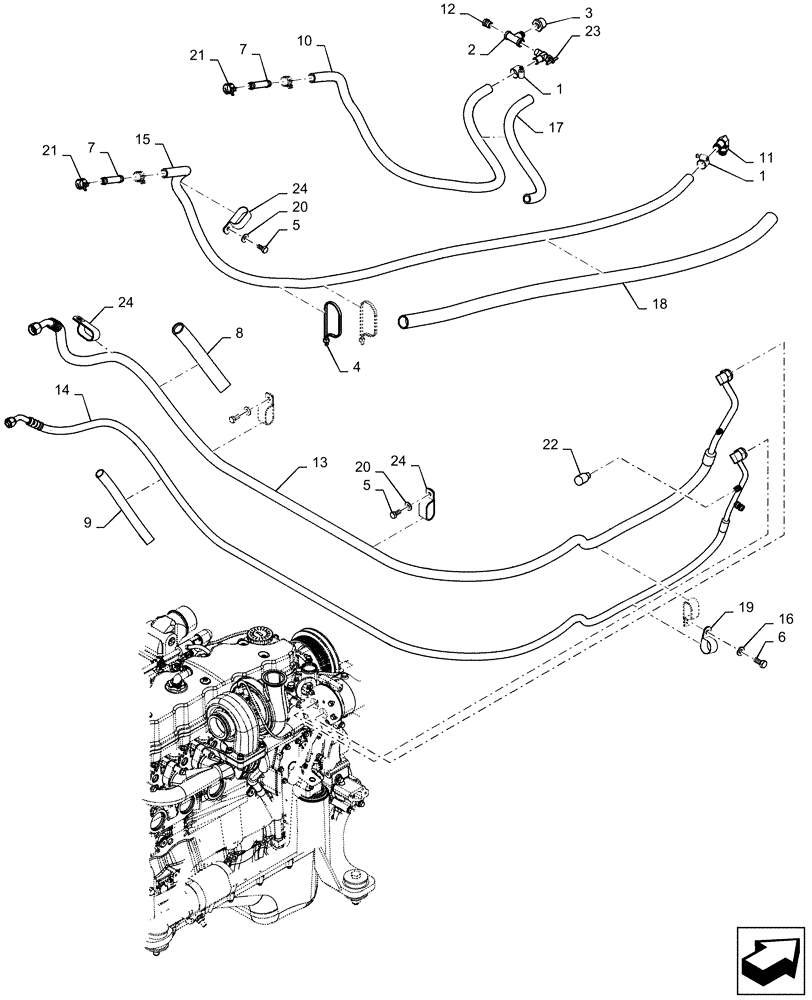

Запчасти Case 1650M WT/LGP (50.050.AL[01]) - HEATER, AIR CONDITIONER, CAB (50) - CAB CLIMATE CONTROL

1

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

2шт.

2

217-1142

TEE,3/8"-18 Female x 3/8"-18 Male Br

1шт.

3

221-1092

REDUCER,Hex, 3/4" x 3/8" NPT

1шт.

4

L18331

CABLE TIE,375.9mm L, Nylon, Black

2шт.

5

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

3шт.

6

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

1шт.

7

S104739

TUBE,0.625" OD x 3" L

2шт.

8

87364060

CONDUIT

550mm Cut to Length

1шт.

9

84292617

CONDUIT

345mm Cut to Length

1шт.

10

84414424

HEATER HOSE

Supply

1шт.

11

84559989

FITTING,1/2" TUBE TO 5/8" HOSE

1/2 Tube TO 5/8 Hose Bead

1шт.

12

84561114

PLUG,3/8-18, STL PLN

Pipe 3/8-18 STL PLN

1шт.

13

84567344

A/C HOSE

Suction

1шт.

14

84567346

A/C HOSE

Discharge

1шт.

15

84568732

HEATER HOSE

Return

1шт.

16

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

1шт.

17

87323423

CONDUIT

650mm Cut to Length

1шт.

18

87325547

CONDUIT

1670mm Cut to Length

2шт.

19

87353455

CLAMP,34.9mm, Coat, 13.5mm Bolt Hole, P Type

34.9mm Closed

1шт.

20

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

3шт.

21

1954736C1

HOSE CLAMP,#24

4шт.

22

284273A2

SWITCH, A/C HIGH PRE

1шт.

23

A16764

VALVE

1шт.

24

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

5шт.
