Запчасти Case 1650M WT/LGP (48.138.AB[03]) - YOKE, ADJUSTER (48) - TRACKS & TRACK SUSPENSION

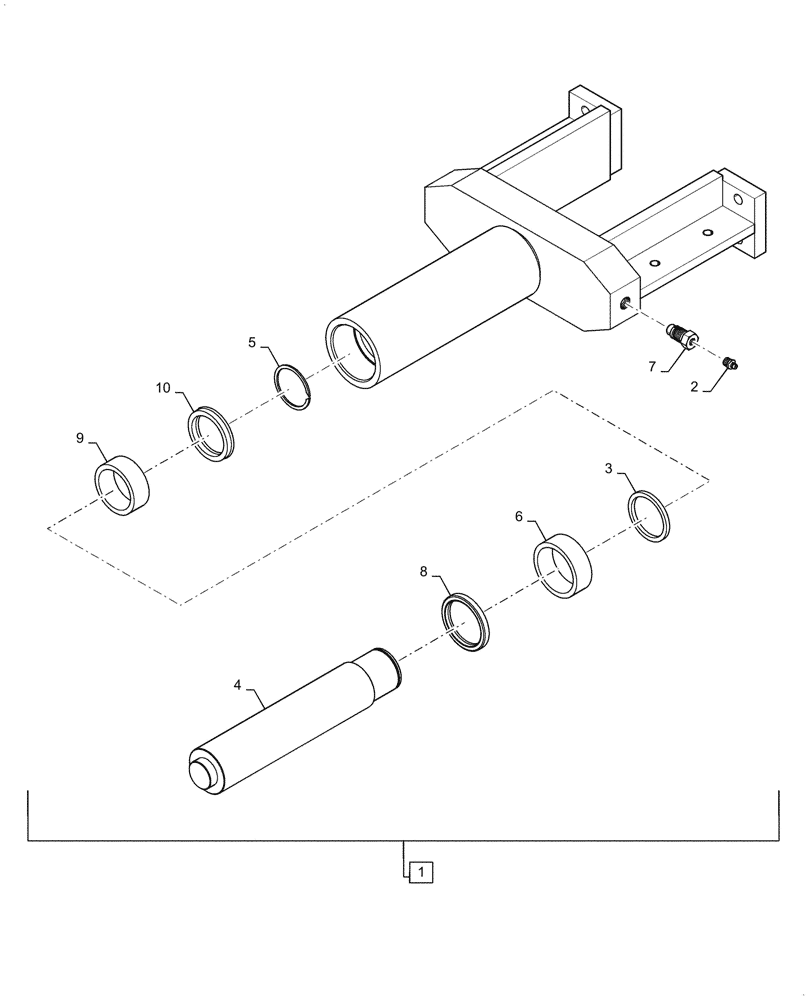

Схема запчастей Case 1650M WT/LGP - (48.138.AB[03]) - YOKE, ADJUSTER (48) - TRACKS & TRACK SUSPENSION
6
4
9
8
2
7
1
3
10
5

Артикул

Название

Примечание

Количество

1

87652975

YOKE

Track Adjuster, Incl 2 - 10

1шт.

2

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

3

R30202

RING,54.101mm ID x 65.1mm OD x 5.08mm Thk

1шт.

4

345091A1

PISTON

Yoke, Track Adjusting

1шт.

5

A32413

SNAP RING,#212, 1.997", Ext

1шт.

6

D30374

RING,60.43mm ID x 73.15mm OD x 25.4mm L

1шт.

7

D35287

CHECK VALVE,5/8" - 18

1шт.

8

D95149

PACKING RING,60.24mm ID x 73.05mm OD x 7.92mm Thk

1шт.

9

R25663

BUSHING,53.98mm ID x 66.62mm OD x 25.4mm L

1шт.

10

R25706

SEAL,53.9mm ID x 66.75mm OD x 10.69mm Thk

1шт.

Выбрано товаров: 10
