Запчасти Case 1650M WT/LGP (48.130.AN[01]) - UNDERCARRIAGE (48) - TRACKS & TRACK SUSPENSION

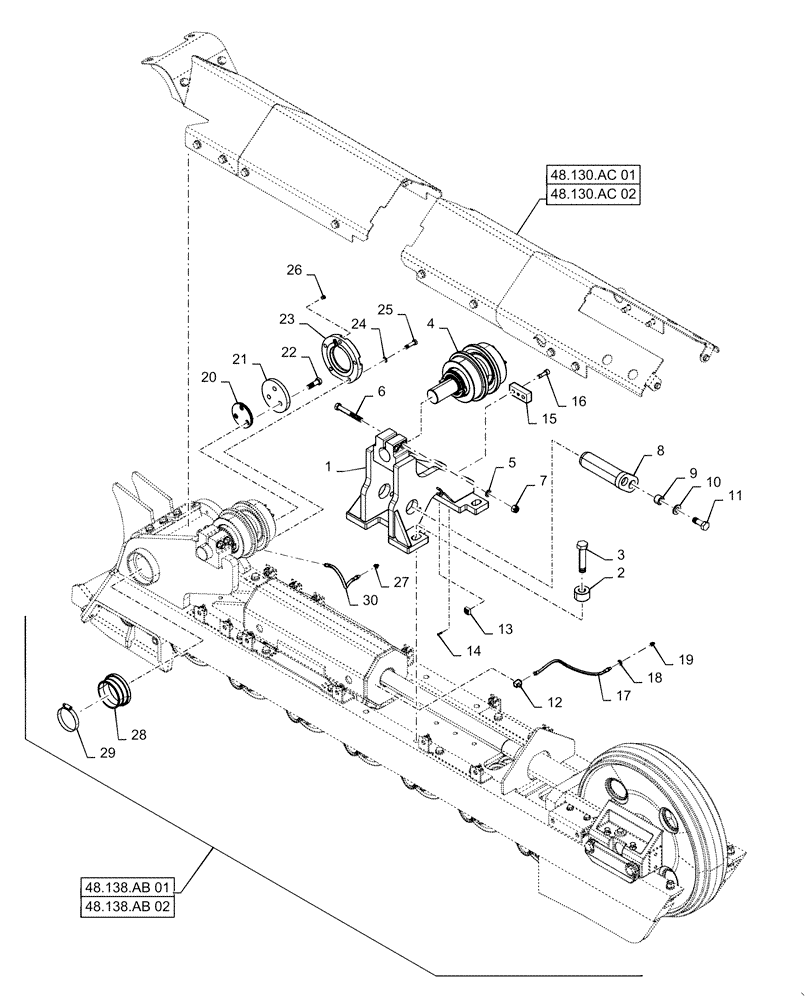

Схема запчастей Case 1650M WT/LGP - (48.130.AN[01]) - UNDERCARRIAGE (48) - TRACKS & TRACK SUSPENSION
26
24
48.130.ac 01
14
21
28
12
27
4
23
30
15
17
3
11
48.130.ac 02
19
10
2
25
13
1
22
20
29
18
48.138.ab 01
48.138.ab 02
14
6
9
7
16
8
5

Артикул

Название

Примечание

Количество

1

84406488

BRACKET

Equalizer Beam

2шт.

2

84341998

SPACER,25mm ID x 57.15mm OD x 33mm L

Equilizer Bracket

8шт.

3

84345492

BOLT,Hex, M24 x 110mm, Cl 10.9

8шт.

4

87582766

ROLLER

Carrier

2шт.

5

87563152

WASHER,17mm ID x 26.5mm OD x 4mm Thk

8шт.

6

827-16120

BOLT,Hex, M16 x 2 x 120mm, Cl 10.9

4шт.

7

86512555

NUT,M16 x 2, Cl 10

4шт.

8

84340093

PIN,59.95mm OD x 213.1mm L

Track Frame Bracket

2шт.

9

87652972

BUSHING,20.6mm ID x 31.7mm OD 20.6mm H

2шт.

10

87713134

SPECIAL WASHER

2шт.

11

87563127

BOLT,Hex, M20 x 50mm, Cl 10.9

2шт.

12

217-1014

ELBOW,1/8" - 27 Female x 1/8" - 27 Male

2шт.

13

87447306

SQUARE NUT,M12 x 21mm x 21mm x 11mm H ZND Cl 5A

4шт.

14

336371A1

PIN,4.88mm OD x 14.23mm L

Nut Retainer

4шт.

15

47579490

PLATE

Cover Zerk

2шт.

16

47579555

SCREW

4шт.

17

87567381

HOSE ASSY.

Grease

2шт.

18

76085536

NUT,1/8-27 NPSM

2шт.

19

219-8

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

20

R28436

SHIM,69.85mm ID x 96.52mm OD x 0.79mm Thk

Pivot Shaft

16шт.

21

R36950

PLATE

Pivot Shaft

2шт.

22

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

6шт.

23

47582438

COVER

Pivot Shaft

2шт.

24

86639312

WASHER,13.5mm ID x 20mm OD x 2mm Thk

10шт.

25

84533154

BOLT,Hex, M12 x 45mm, Cl 10.9

10шт.

26

47582491

FITTING

Pressure Relief

2шт.

27

219-4

LUBE NIPPLE,1/8" - 27 NPTF

Dryseal PTF

2шт.

28

CASR42082

SEAL

Pivot Shaft

2шт.

29

214-3172

HOSE CLAMP,3-3/4" - 4-5/8", HD Worm

Worm Gear

2шт.

30

84563169

HOSE ASSY.,6.35mm ID x 290mm L, SAE 100R7

Pivot Shaft

2шт.

Выбрано товаров: 30
