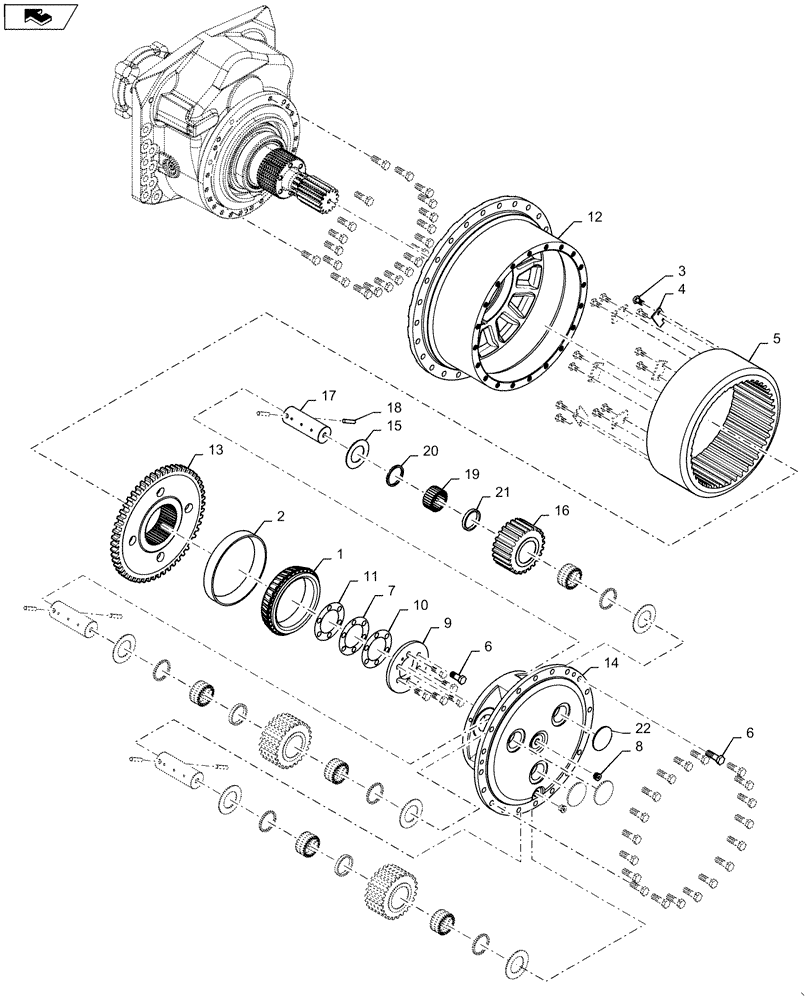

Запчасти Case 1650M WT/LGP (48.130.AJ[03]) - FINAL DRIVE AND HUB ASSEMBLY (48) - TRACKS & TRACK SUSPENSION

1

A140150

ROLLER BEARING,6.875" ID x 1.875"

1шт.

2

A140151

BEARING CUP

9.75 OD x 1.50 W

1шт.

3

606-12025

BOLT,Hex, M12 x 25mm, Cl 10.9

12шт.

4

87452214

RETAINER

Ring Gear

6шт.

5

87309917

GEAR

Planetary Ring, 70T

1шт.

6

606-16050

BOLT,Hex, M16 x 50mm, Cl 10.9

26шт.

7

87452204

SHIM,82mm ID x 133mm OD x 0.51mm Thk

0.51mm

1шт.

8

86590562

PLUG,Hex Soc, 3/4" - 16 ORB

2шт.

9

87452201

ADJUSTING PLATE

1шт.

10

87452203

SHIM,82mm ID x 133mm OD x 0.18mm Thk

0.18mm

1шт.

11

87452202

SHIM,82mm ID x 133mm OD x 0.08mm Thk

0.08mm

1шт.

12

87638356

HUB

Final Drive, Narrow Used On 1650M XLT Model

1шт.

12

87519342

HUB

Final Drive, Wide, Used On 1650M WP/LGP Model

1шт.

12

87452187

HUB,Final Drive

Final Drive, Narrow, Used On 1150M LT Model

1шт.

12

87452188

HUB

Final Drive, Wide, Used On 1150M WP/LGP Model

1шт.

13

87309916

RING CARRIER

Gear

1шт.

14

87309914

HOUSING

Planetary

1шт.

15

87452211

THRUST WASHER,58mm ID x 100mm OD x 3mm Thk

6шт.

16

87309915

GEAR

Planet, 28T

3шт.

17

87452207

GROOVED PIN,57.62mm OD x 162mm L

3шт.

18

135-113

GROOVED PIN,7/16" x 2", Type A

6шт.

19

A151972

ROLLER

Bearing, Rear Axle Planet

150шт.

20

87452209

SPACER

Planetary, Needle Bearing

6шт.

21

87452210

SPACER

Planetary, Needle Bearing

3шт.

22

41-52

PLUG,Exp, 3 1/4"

3шт.
