Запчасти Case 1650M WT/LGP (48.130.AJ[02]) - FINAL DRIVE AND HUB ASSEMBLY (48) - TRACKS & TRACK SUSPENSION

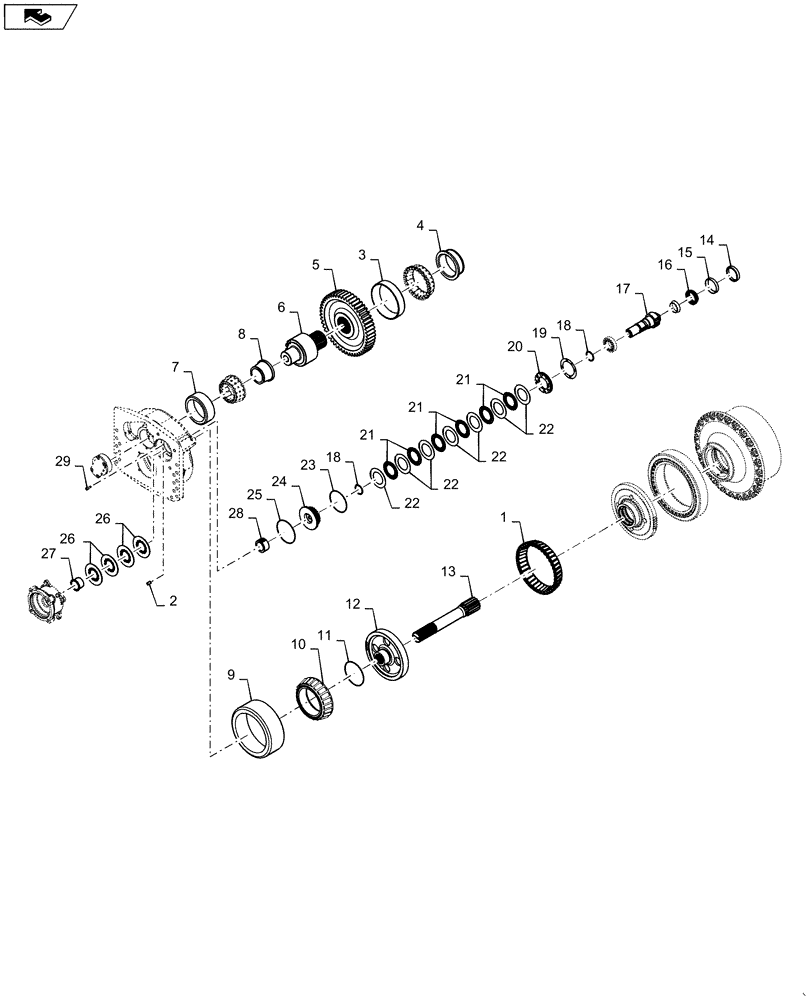

Схема запчастей Case 1650M WT/LGP - (48.130.AJ[02]) - FINAL DRIVE AND HUB ASSEMBLY (48) - TRACKS & TRACK SUSPENSION
4
7
3
19
26
10
home
28
22
18
20
22
9
16
29
21
18
25
21
8
24
12
6
15
23
21
26
22
17
1
13
11
22
5
27
14
2

Артикул

Название

Примечание

Количество

1

G103915

TAPERED BEARING,142.88mm ID x 39.69mm W

Assy

1шт.

2

87495306

PIN,5mm OD x 10mm L

Dowl

2шт.

3

65721C1

BEARING ASSY,3.1496" ID x 5.1181" OD x 1.378"

Drive Cup

1шт.

4

65720C91

BEARING ASSY,3.1496" ID x 5.1181" OD x 1.378"

Drive Cone

1шт.

5

87610438

DRIVEN GEAR

Idler, 50T

1шт.

6

87610432

IDLER PINION

16T

1шт.

7

84987C1

BEARING ASSY

4.06 OD x 1.44 W

1шт.

8

84986C1

BEARING ASSY,49.21mm ID x 44.48mm W

1.94 x 1.75

1шт.

9

87313985

BEARING CUP,156.97mm OD x 34mm W

2шт.

10

87313983

BEARING ASSY,99.97mm ID x 42mm W

2шт.

11

D32043

RING

Snap

1шт.

12

87309911

DRIVEN GEAR

Counter Shaft, 65T

1шт.

13

87309912

GEAR

Sun Shaft, 14T

1шт.

14

87567817

SEAL,28mm ID x 40mm OD x 7mm Thk

1шт.

15

A136128

BEARING CUP

105 OD x 18.5W

2шт.

16

A136127

ROLLER BEARING,2.5591" ID x 0.9055"

65.0 x 23.0

2шт.

17

87309907

GEAR

Input Pinion, 20T

1шт.

18

101-11250

SNAP RING,#250, 2.356, Ext

2шт.

19

84322474

SHIM

Input Bearing

1шт.

20

84304614

FINAL DRIVE HOUSING

Assembly, Park Brake

1шт.

21

84163978

DISC

Clutch Friction

6шт.

22

345335A2

PLATE

Clutch Separator

7шт.

23

385236A2

SEALING RING

0.137 x 4.682

1шт.

24

87577298

PISTON

Parking Brake

1шт.

25

385237A2

SEALING RING,3.48mm Thk x 156.59mm ID, 70 Duro

0.137 x 6.165

1шт.

26

1997880C1

SPRING,70.15mm ID x 155mm OD x 3.5mm Thk

4шт.

27

87577303

SLEEVE

Spring Retainer

1шт.

28

87452185

HUB

Park Brake

1шт.

29

863-10025

HEX SOC SCREW,M10 x 25mm, Cl 12.9

4шт.

Выбрано товаров: 29
