Запчасти Case 1650M WT/LGP (48.130.AJ[01]) - FINAL DRIVE AND HUB ASSEMBLY (48) - TRACKS & TRACK SUSPENSION

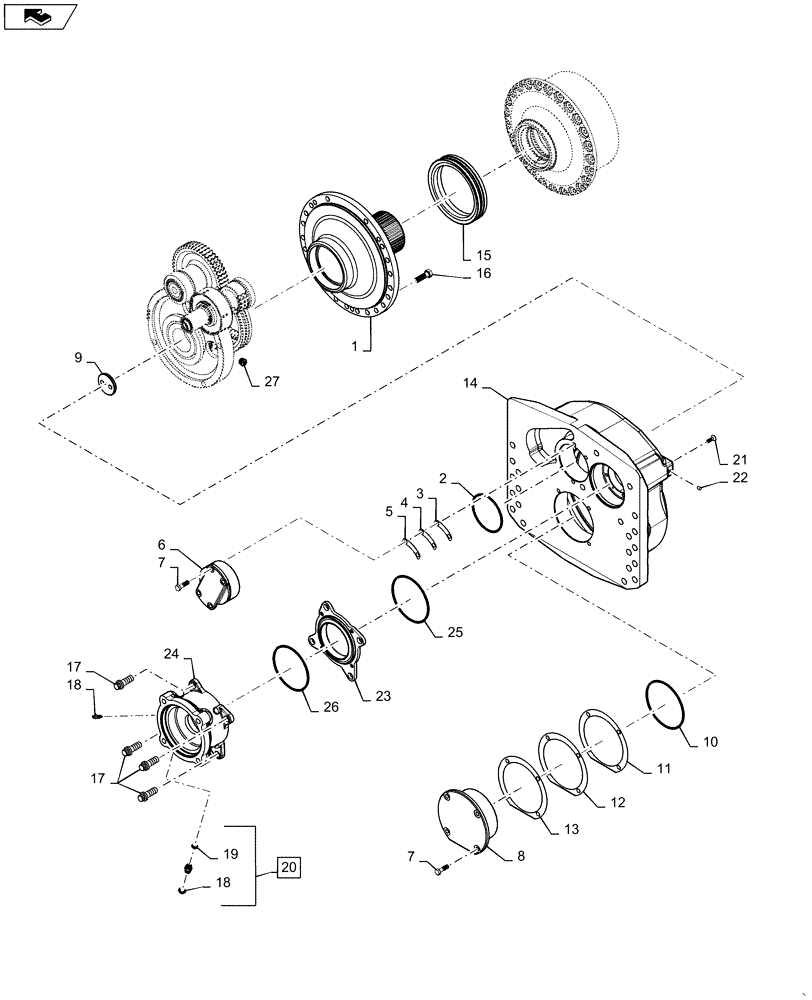

Схема запчастей Case 1650M WT/LGP - (48.130.AJ[01]) - FINAL DRIVE AND HUB ASSEMBLY (48) - TRACKS & TRACK SUSPENSION
8
24
9
22
14
7
16
18
20
4
2
18
17
27
15
19
3
26
1
10
6
13
7
21
25
23
5
11
home
12
17

Артикул

Название

Примечание

Количество

1

87452186

SPINDLE

Wheel

1шт.

2

238-5250

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

1шт.

3

G107613

SHIM

Idler Gear, 0.08mm

1шт.

4

G107614

SHIM

Idler Gear, 0.18mm

1шт.

5

G107615

SHIM

Idler Gear, 0.51mm

1шт.

6

87452193

BEARING COVER,103.162 mm ID x 132.89 mm OD x 55.1 mm

Idler Gear

1шт.

7

606-12040

BOLT,Hex, M12 x 40mm, Cl 10.9

Locking

8шт.

8

87452194

BEARING COVER,156.949 mm ID x 177.85 mm OD x 65 mm

Sun Gear

1шт.

9

87452199

RETAINER

Sun Gear

1шт.

10

238-5261

O-RING,0.139" Thk x 6.734" ID, -261, Cl 5, 75 Duro

1шт.

11

87452197

SHIM

Sun Gear, 0.51mm

1шт.

12

87452196

SHIM

Sun Gear, 0.18mm

1шт.

13

87452195

SHIM

Sun Gear, 0.08mm

1шт.

14

47447180

FINAL DRIVE HOUSING

CRX 410

1шт.

15

G107620

SEAL,193.22mm ID x 238.89mm OD x 42.46mm Thk

Face

1шт.

16

606-16050

BOLT,Hex, M16 x 50mm, Cl 10.9

Locking

21шт.

17

868-20050

12 PT SCREW,M20 x 50mm, Cl 12.9

M20 x 50 Class 12.9

4шт.

18

9832308

BLEEDER

1шт.

19

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

20

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

Incl 18, 19

1шт.

21

906037R1

HEX SOC SCREW,FLAT, M10 x 30mm, Cl 10.9

4шт.

22

87520606

PLUG

Expansion

1шт.

23

87452184

BRAKE PLATE

Park Housing

1шт.

24

84296781

FINAL DRIVE HOUSING

Used On 1650M XLT, 1650M WP/LGP Model

1шт.

24

84296769

HOUSING

Used On 1150M LT, 1150M WT/LGP Model

1шт.

25

87591919

O-RING,0.139" Thk x 5.984" ID, -258, Cl 7, 75 Duro

1шт.

26

87591920

O-RING,0.139" Thk x 6.48" ID, -260, Cl 7, 75 Duro

1шт.

27

218-5210

PLUG,Hex, 3/4"-16 ORB

3шт.

Выбрано товаров: 28
