Запчасти Case 1650M WT/LGP (48.130.AC[02]) - UNDERCARRIAGE COVERS RIGHT HAND (48) - TRACKS & TRACK SUSPENSION

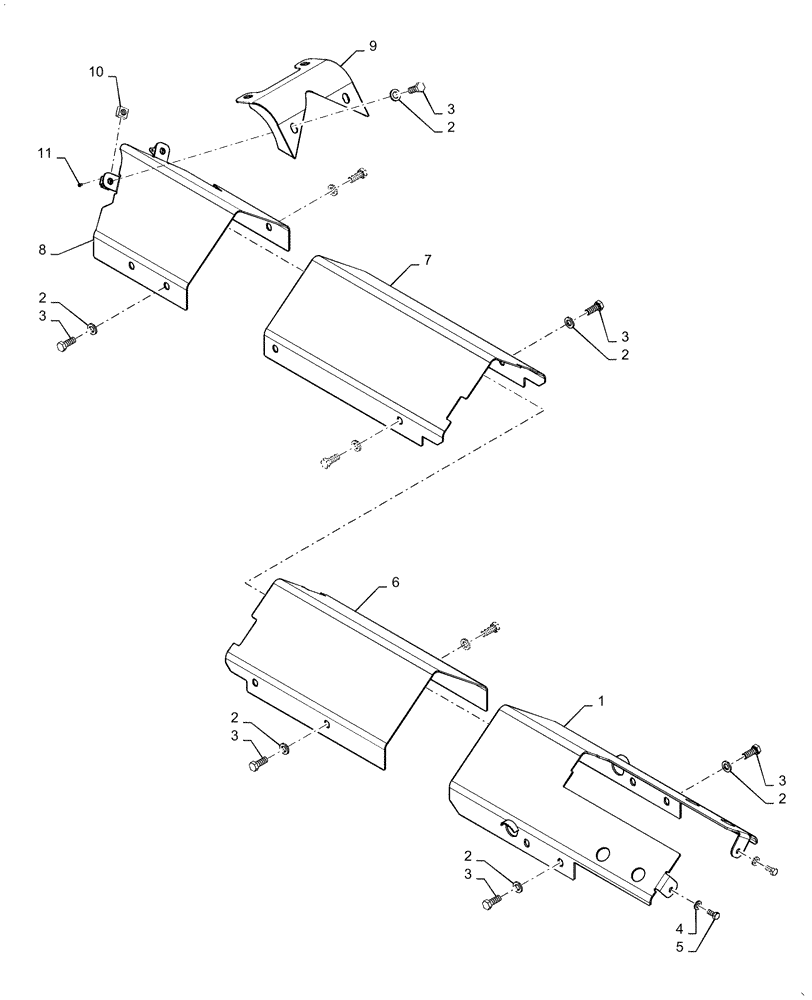

Схема запчастей Case 1650M WT/LGP - (48.130.AC[02]) - UNDERCARRIAGE COVERS RIGHT HAND (48) - TRACKS & TRACK SUSPENSION
10
1
3
2
2
9
2
11
3
2
8
3
3
3
7
2
4
3
6
2
5

Артикул

Название

Примечание

Количество

1

47618632

COVER

Idler

1шт.

2

87655044

SPECIAL WASHER,17.75mm ID x 31.50mm OD x 4.20mm, HTS Boron, ZNM

18шт.

3

87612751

BOLT,Hex, M16 x 40mm, Cl 8.8

18шт.

4

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

2шт.

5

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

2шт.

6

84380960

COVER

Front

1шт.

7

84380962

COVER

Recoil

1шт.

8

84410995

COVER

Rear

1шт.

9

84411093

COVER

Pivot Housing

1шт.

10

405737A2

SQUARE NUT,M16 x 26mm x 26mm x 16mm H ZND CL 5A

2шт.

11

336371A1

PIN,4.88mm OD x 14.23mm L

Nut Retainer

2шт.

Выбрано товаров: 11
