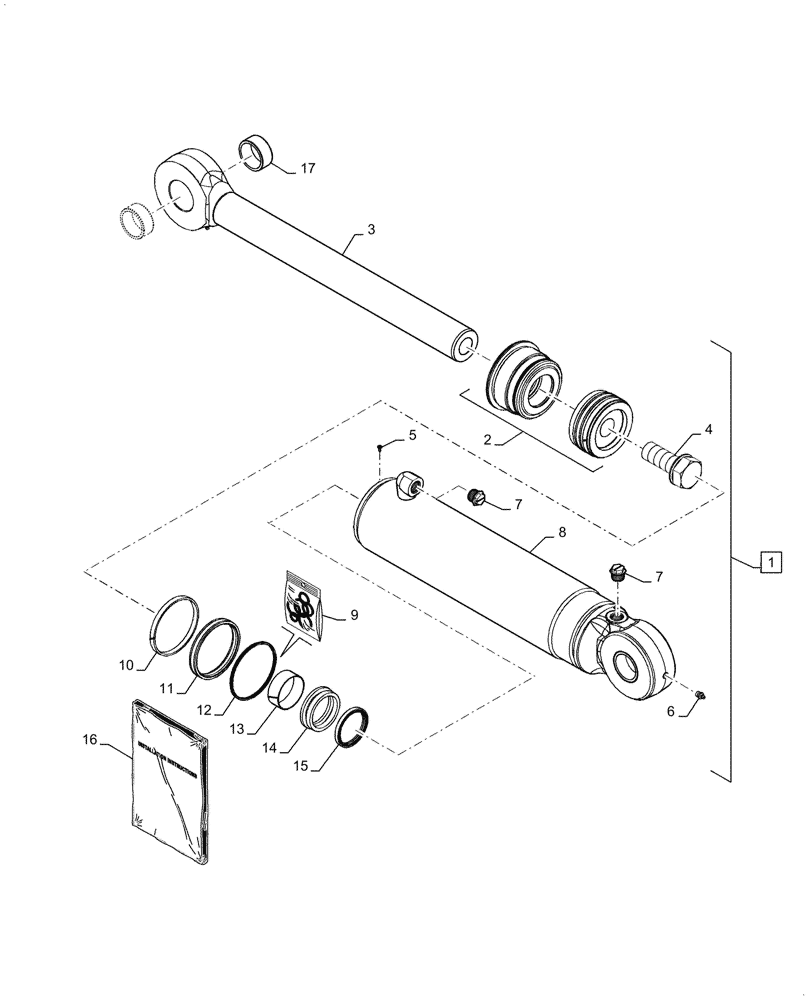

Запчасти Case 1650M LGP PAT (35.741.010[06]) - LIFT CYLINDER (35) - HYDRAULIC SYSTEMS

1

84402335

LIFT CYLINDER,Double Acting, 63.5mm Rod, 428.8mm Stroke

Tube, Body, Incl 2 - 8, 17

1шт.

2

NSS

NOT SOLD SEPARAT

Gland and Piston, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Rod, Incl in 1

1шт.

4

86982443

SPECIAL BOLT,1" 3/8 x 3.50 L

1шт.

5

G109395

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

6

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

7

353-780

PLUG,Sltd Hd, 7/8"-14, w/O-Ring

Incl

2шт.

8

NSS

NOT SOLD SEPARAT

Tube, Body

1шт.

9

84479798

SEAL KIT

Incl 10 - 16

1шт.

10

NSS

NOT SOLD SEPARAT

Wear Ring, Incl in 9

1шт.

11

NSS

NOT SOLD SEPARAT

Seal, Incl in 9

1шт.

12

NSS

NOT SOLD SEPARAT

Seal, Incl in 9

1шт.

13

NSS

NOT SOLD SEPARAT

Rod Bearing, Incl in 9

1шт.

14

NSS

NOT SOLD SEPARAT

Rod and Buffer Seal, Incl in 9

1шт.

15

NSS

NOT SOLD SEPARAT

Rod Wiper, Incl in 9

1шт.

16

NSS

NOT SOLD SEPARAT

Instruction Sheet, Incl in 9

1шт.

17

D140029

BUSHING,50.22mm ID x 60mm OD x 25.5mm L

2шт.
