Запчасти Case 1650M LGP PAT (35.741.010[04]) - TILT, HYDRAULIC CYLINDER, LINES (35) - HYDRAULIC SYSTEMS

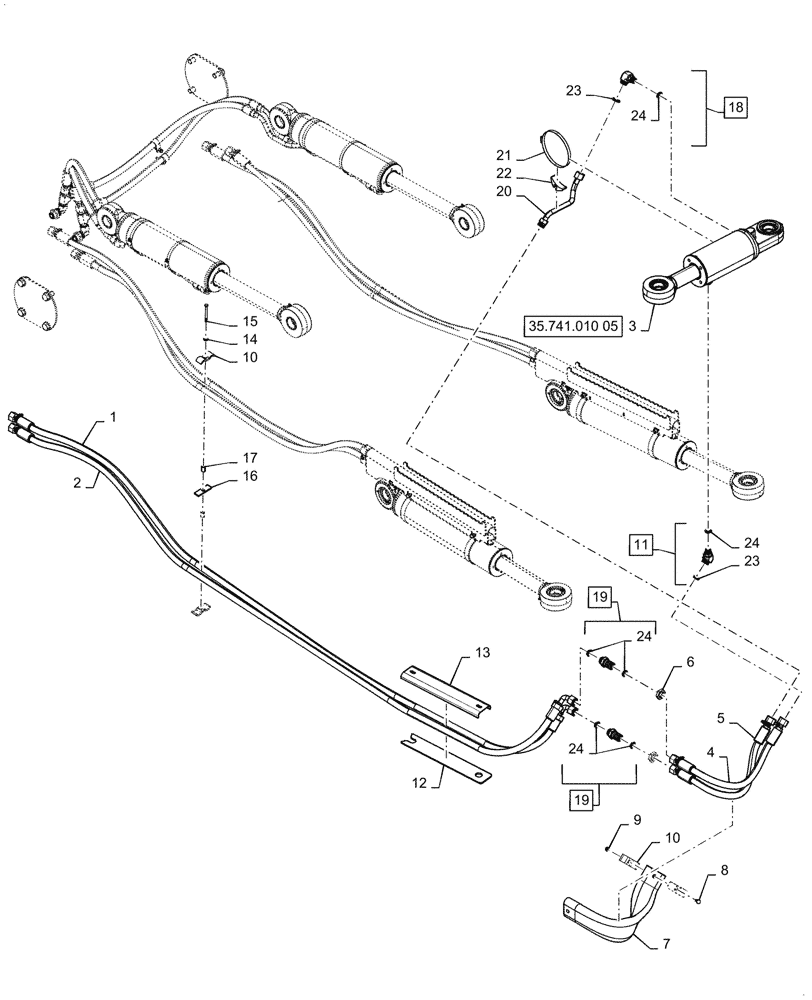

Схема запчастей Case 1650M LGP PAT - (35.741.010[04]) - TILT, HYDRAULIC CYLINDER, LINES (35) - HYDRAULIC SYSTEMS
35.741.010 05
21
23
10
3
24
9
1
11
17
16
19
24
5
13
23
15
2
19
14
22
24
12
18
4
20
8
24
6
7
10

Артикул

Название

Примечание

Количество

1

47445407

HOSE,19.05mm ID x 3383mm L, SAE 100R16

Tilt Cylinder Head

1шт.

2

47445408

HOSE,19.05mm ID x 3436mm L, SAE 100R16

Tilt Cylinder Head

1шт.

3

47446374

HYDRAULIC CYLINDER,Double Acting, 63.5mm Rod, 148.4mm Stroke

Tilt

1шт.

4

47445362

HOSE,19.05mm ID x 763.3mm L, SAE 100R16

1шт.

5

47724096

HOSE

1шт.

6

86639062

BHD LOCK NUT,1-3/16"-12 ORFS, Bulkhead

2шт.

7

47446164

SLEEVE,68mm ID x 738mm L

1шт.

8

325829

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

1шт.

9

412141

NUT,M10 x 1.5, Cl 8

1шт.

10

434130A1

HOSE CLAMP

4шт.

11

47739428

ELBOW

Incl Ref 23, 24

1шт.

12

47549213

GUARD

1шт.

13

47549209

GUARD

1шт.

14

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

1шт.

15

814-8090

BOLT,Hex, M8 x 1.25 x 90mm, Cl 8.8

1шт.

16

47496506

PLATE

1шт.

17

87036413

SPACER,10.34mm ID x 15.88mm OD x 23.8mm L

2шт.

18

47739433

90 ELBOW

Incl Ref 23, 24

1шт.

19

47743821

UNION

Incl (2) Ref 24

2шт.

20

47724063

TUBE

Tilt, Head End, Incl

1шт.

21

87690486

CLAMP,149mm ID - 172mm ID, SAE #100

1шт.

22

D142787

SPACER

1шт.

23

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

24

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

8шт.

Выбрано товаров: 24
