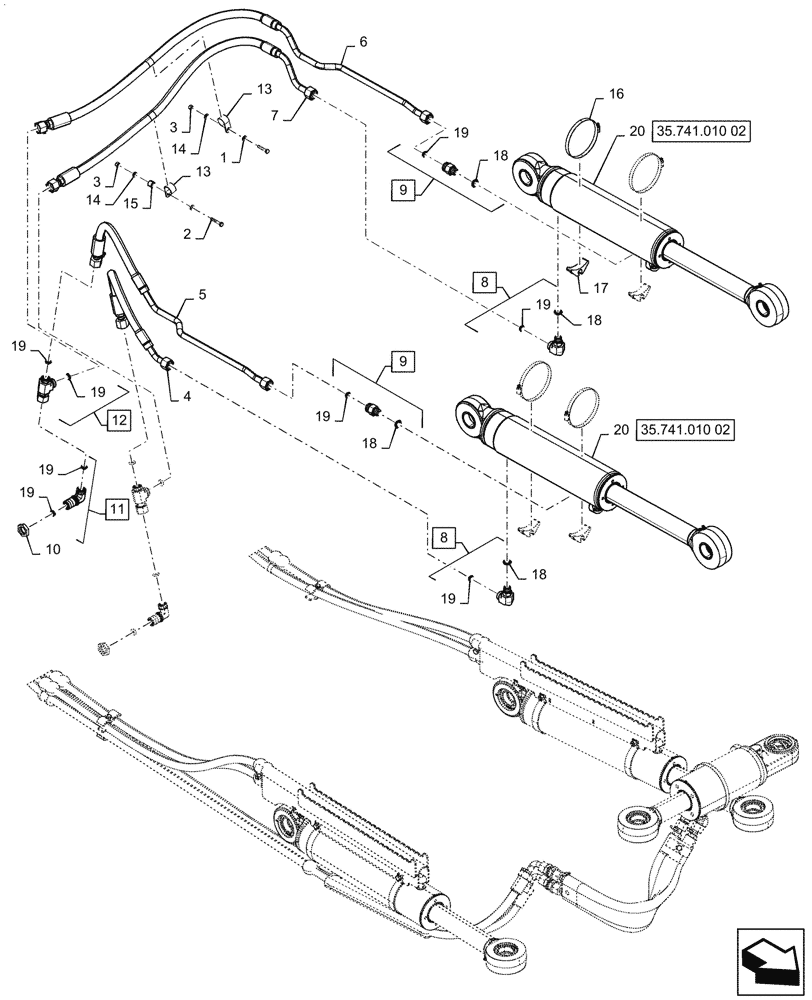

Запчасти Case 1650M LGP PAT (35.741.010[01]) - LIFT CYLINDER, HYDRAULIC LINES (35) - HYDRAULIC SYSTEMS

1

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

1шт.

2

386045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

1шт.

3

412250

NUT,M8 x 1.25, Cl 8

2шт.

4

47458147

HYD TUBE

RH, Lift Tube End

1шт.

5

47458149

TUBE

RH, Lift Rod End

1шт.

6

47458151

TUBE

LH, Lift Rod End

1шт.

7

47458154

TUBE

LH, Lift Tube End

1шт.

8

47739433

90 ELBOW

Incl (1) Ref 18 and (1) Ref 19

2шт.

9

47743801

HYD CONNECTOR

Incl (1) Ref 18 and (1) Ref 19

2шт.

10

86639062

BHD LOCK NUT,1-3/16"-12 ORFS, Bulkhead

2шт.

11

86837484

ELBOW,90 Degree, 1 3/16"-12. ORFS, Blkhd

Incl (2) Ref 19

2шт.

12

87016915

TEE,1-3/16"-12 ORFS x 13.9mm ORB

Incl (2) Ref 19

2шт.

13

87312719

COLLAR,31.7mm, Coat, 11.9mm Bolt Hole, P Type

2шт.

14

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

4шт.

15

86610677

SPACER,10.3mm ID X 19.05mm OD X 14.3mm L

1шт.

16

214-1496

HOSE CLAMP,#96, 5.56" - 6.5", Type F Worm

1шт.

17

D142787

SPACER

4шт.

18

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

4шт.

19

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

12шт.

20

84402335

LIFT CYLINDER,Double Acting, 63.5mm Rod, 428.8mm Stroke

Lift Cylinder

2шт.
