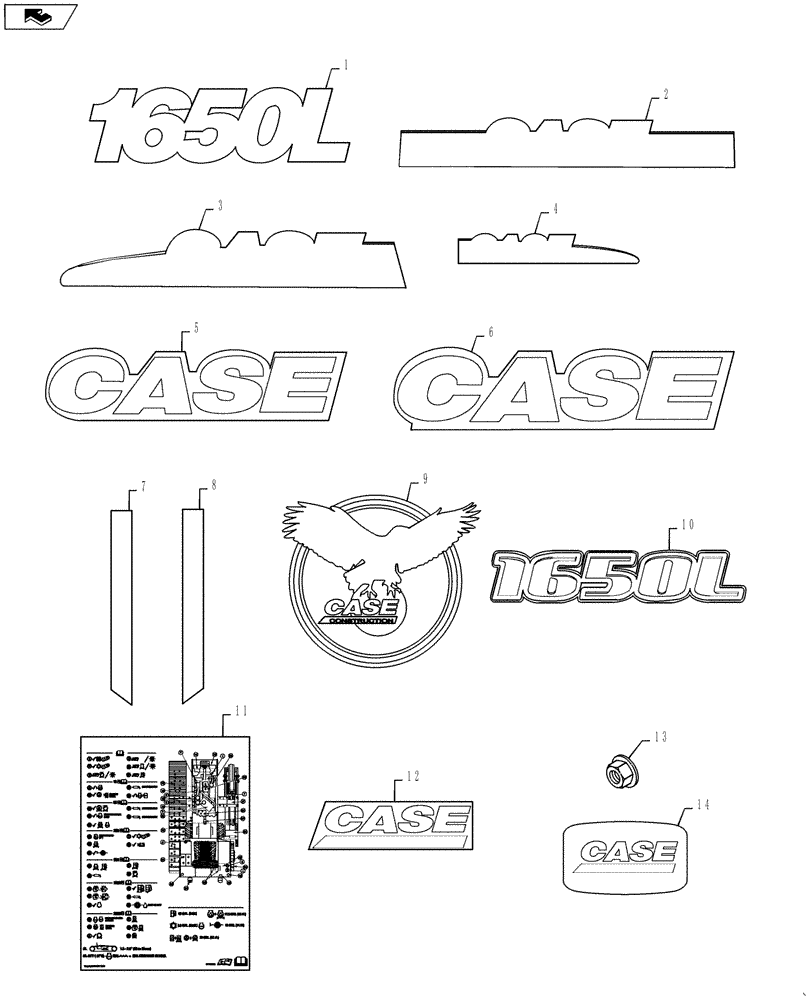

Запчасти Case 1650L (09-47) - DECALS - EUROPEAN (09) - CHASSIS/ATTACHMENTS

1

87677599

DECAL

Model, 1650L, Serial Range: -NBDC16053

2шт.

2

87378756

DECAL

Rear Case Logo Strip, Serial Range: -NBDC16053

1шт.

3

87378757

DECAL

Left Rear Case Logo Strip, Serial Range: -NBDC16053

1шт.

4

87378758

DECAL

Right Rear Case Logo Strip, Serial Range: -NBDC16053

1шт.

5

87379158

DECAL

Case; 785.8 x 178.8 mm; Rear Side, Serial Range: -NBDC16053

2шт.

6

87378759

DECAL

Case; 888 x 205.5 mm; Rear, Serial Range: -NBDC16053

1шт.

6

84468413

DECAL,1054mm x 268mm H

Case; 1054 x 268 mm, Start Serial: NBDC16053

3шт.

7

87679586

DECAL

Left-Hand Door Accent

1шт.

8

87679587

DECAL

Right-Hand Door Accent

1шт.

9

84468362

DECAL,194mm x 170mm H

Eagle, Start Serial: NBDC16053

2шт.

10

84531859

DECAL

Model, 1650L, Start Serial: NBDC16053

2шт.

11

87735232

DECAL

Maintenance Schedule

1шт.

12

186989A1

EMBLEM

Case; Front Grille

1шт.

13

131-431

PUSH-ON NUT,Self, Threading, 1/4"

Case Emblem

2шт.

14

87415931

DECAL

Case, Engine

2шт.
