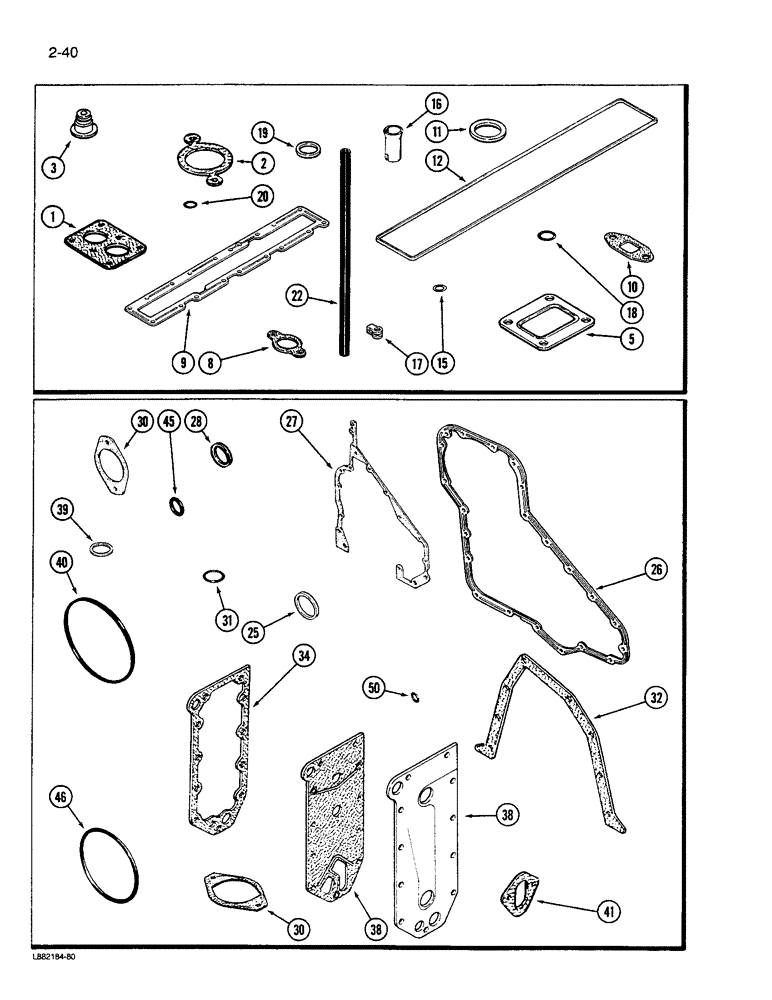

Запчасти Case 1550 (2-40) - GASKET KITS, 6T-830 ENGINE, VALVE GRIND, CYLINDER BLOCK (02) - ENGINE

A77678

GASKET KIT

- valve grind, Replaces A77630, Includes: Ref. 1 - 22

1шт.

When just the Valve Grind Gasket Kit is used, also order the required Cylinder Head Gasket on Figure 2-18

1шт.

1

J914310

GASKET,0.8mm Thk

- thermostat housing

1шт.

2

A77705

GASKET

- outlet tube (Replaces J914309)

1шт.

3

J915707

SEAL

- stem, intake valve (Replaces J912550)

6шт.

5

J911941

GASKET

- turbocharger mounting

1шт.

8

J911942

GASKET

- manifold, exhaust

6шт.

9

J914311

MANIFOLD GASKET

- cover, manifold

1шт.

10

J914388

GASKET

- drain tube

1шт.

11

J902466

SEAL,39.35mm ID x 59.35mm OD x 3mm Thk

RING - cap sealing

1шт.

12

J905449

SEAL,7.179mm W x 2090mm L

SEAL - cover

1шт.

15

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- cover bolt

6шт.

16

J909886

SEAL,16.9mm ID x 22mm OD x 38mm L

- injector

6шт.

17

J903380

SEAL

- connector

6шт.

18

J909397

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

- sealing

1шт.

19

J906659

SEAL

- injector nozzle

6шт.

20

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

Water filter shutoff (Replaces A29197) -111, 70 Duro, .424" ID x .103" Thk

1шт.

22

J915040

HOSE

- breather (Replaces J907739)

1шт.

A77719

GASKET KIT

- cylinder block, Engines prior to SN 44500128, Includes: Ref. 25 - 50

1шт.

For complete Engine Overhaul order 1 each of Valve Grinder Kit, Cylinder Block Kit, Oil Pan Kit page 2-17, Front and Rear Crankshaft Seal Kit, Fig 2-34 and required Cylinder Head Gasket page 2-19

1шт.

A77726

KIT

GASKET KIT - cylinder block, Includes: Ref. 25 - 50 except Ref. 30 & 38, Engines SN 44500128 & after

1шт.

For complete Engine Overhaul order 1 each of Valve Grinder Kit, Cylinder Block Kit, Oil Pan Kit page 2-17, Front and Rear Crankshaft Seal Kit, Fig 2-34 and required Cylinder Head Gasket page 2-19

1шт.

25

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

- cover

1шт.

26

J917780

GASKET,0.98mm Thk

GASKET - cover, gear (Lo mount applications)

1шт.

26

J917779

GASKET,0.98mm Thk

- cover, gear (Hi mount applications)

1шт.

27

J914303

SEAL

GASKET - housing, gear

1шт.

28

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING - pin housing (Replaces J914092)

1шт.

30

J913288

SEAL

GASKET - cover, access

1шт.

Not part of Cylinder Block Gasket Kit, P/N A77726

1шт.

31

J902089

SEAL,0.139" Thk x 3.859" ID, -241

O-RING - sealing, pump

1шт.

32

J914301

GASKET

- rear retainer

1шт.

34

J918174

GASKET,0.71mm Thk

- cooler core (Replaces J914307)

1шт.

38

J914308

GASKET

- filter head (Engines prior to Serial Number 44500128)

1шт.

Not part of Cylinder Block Gasket Kit, P/N A77726

1шт.

38

J918332

GASKET

- filter head (Engines Serial Number 44500128 and after)

1шт.

39

J901798

SEALING WASHER

WASHER - sealing

1шт.

40

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

O-RING -, Serial Range: housing-block

1шт.

41

J914304

GASKET

- mounting, pump

1шт.

45

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

Sealing (Replaces 253070R1) -212, 70 Duro, .859" ID x .139" Thk

1шт.

46

J917737

O-RING,118.1 mm ID x 4 mm

- sleeve (Replaces J907177)

6шт.

50

J913994

O-RING

- sealing

1шт.
