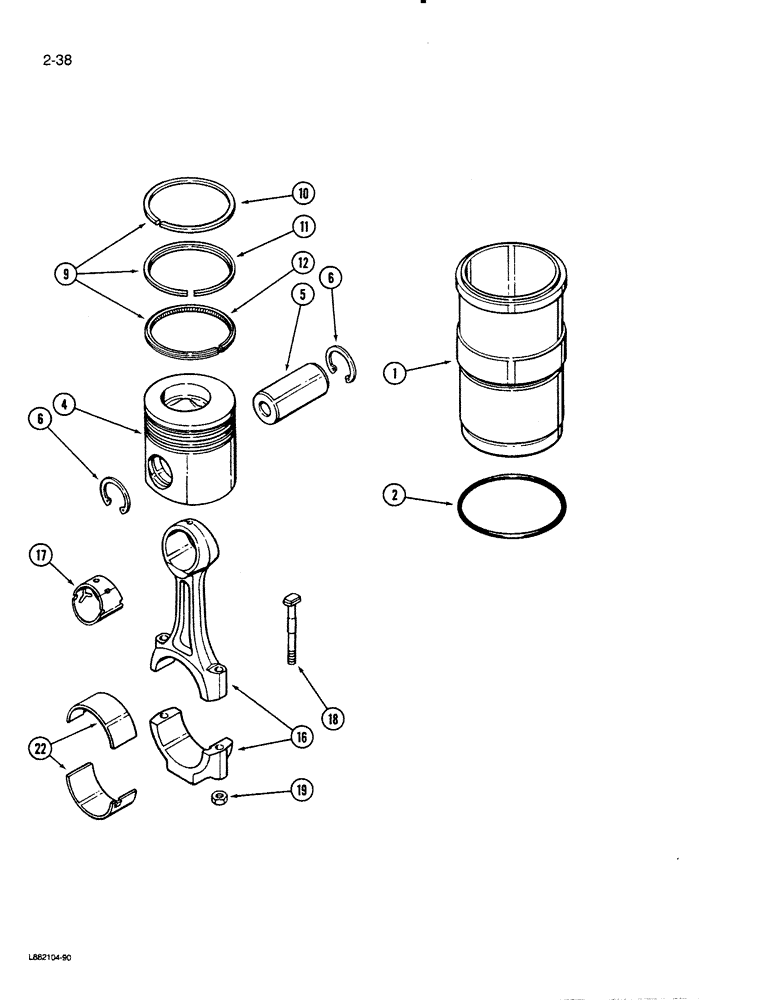

Запчасти Case 1550 (2-38) - PISTONS, 6T-830 ENGINE (02) - ENGINE

A77598

CYLINDER

PISTON AND SLEEVE KIT - engine

6шт.

1

J907792

SLEEVE CYLINDER

SLEEVE - piston

1шт.

2

J917737

O-RING,118.1 mm ID x 4 mm

- sleeve (Replaces J907177)

1шт.

A77599

KIT

PISTON KIT- engine, standard, Includes: Ref. 4 - 11

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON - cylinder (Stamped 8749)

1шт.

5

J901597

PIN

- piston

1шт.

6

J901996

RING

- retaining

2шт.

9

A77562

PISTON RING SET

KIT - piston

1шт.

10

NSS

NOT SOLD SEPARAT

RING - compression, top

1шт.

11

NSS

NOT SOLD SEPARAT

RING - compression, middle

1шт.

12

NSS

NOT SOLD SEPARAT

RING - oil, bottom

1шт.

A77610

SLEEVE CYLINDER

KIT - piston, Includes: Ref 1 & 2

6шт.

JR901383

REMAN-CONNECTING ROD

ASSEMBLY - remanufacrured (North America only)

6шт.

JC901383

CORE-ROD CONNECTING

RETURN NUMBER - use this part number to return for credit

1шт.

16

J901383

CONNECTING ROD

ROD ASSEMBLY - connecting, Includes: Ref. 17 - 19

6шт.

84487529R

REMAN-CONNECTING ROD

1550, Reman for New P/N J901383

6шт.

84487529C

CORE-ROD CONNECTING

Return Number

1шт.

17

J913990

BUSHING,45.03mm ID x 49mm OD x 45mm L

- connecting rod

1шт.

18

J901380

BOLT

- rod bearing retaining, connecting rod

2шт.

19

J901381

SPECIAL NUT

- hex, bolt retaining, connecting rod

2шт.

22

A77563

BEARING SET

KIT - rod, upper and lower, standard (Set), connecting

6шт.

22

A77564

BEARING SET

KIT - rod, upper and lower, 0.25 mm oversize (Set), connecting

6шт.

22

A77565

BEARING SET

KIT - rod, upper and lower, 0.50 mm oversize (Set), connecting

6шт.

22

A77566

BEARING SET

KIT - rod, upper and lower, 0.75 mm oversize (Set), connecting

6шт.

22

A77567

BEARING SET

KIT - rod, upper and lower, 1.00 mm oversize (Set), connecting

6шт.

J914653

SHIM,.010" Thk

Connecting rod .010" Thk

1шт.

New shims for 6T-830 engine, used to adjust the sleeve protrusion when cylinder block has been machined.

1шт.

J914654

SHIM,.015" Thk

1шт.

New shims for 6T-830 engine, used to adjust the sleeve protrusion when cylinder block has been machined.

1шт.

J914655

SHIM,.020" Thk

1шт.

New shims for 6T-830 engine, used to adjust the sleeve protrusion when cylinder block has been machined.

1шт.
