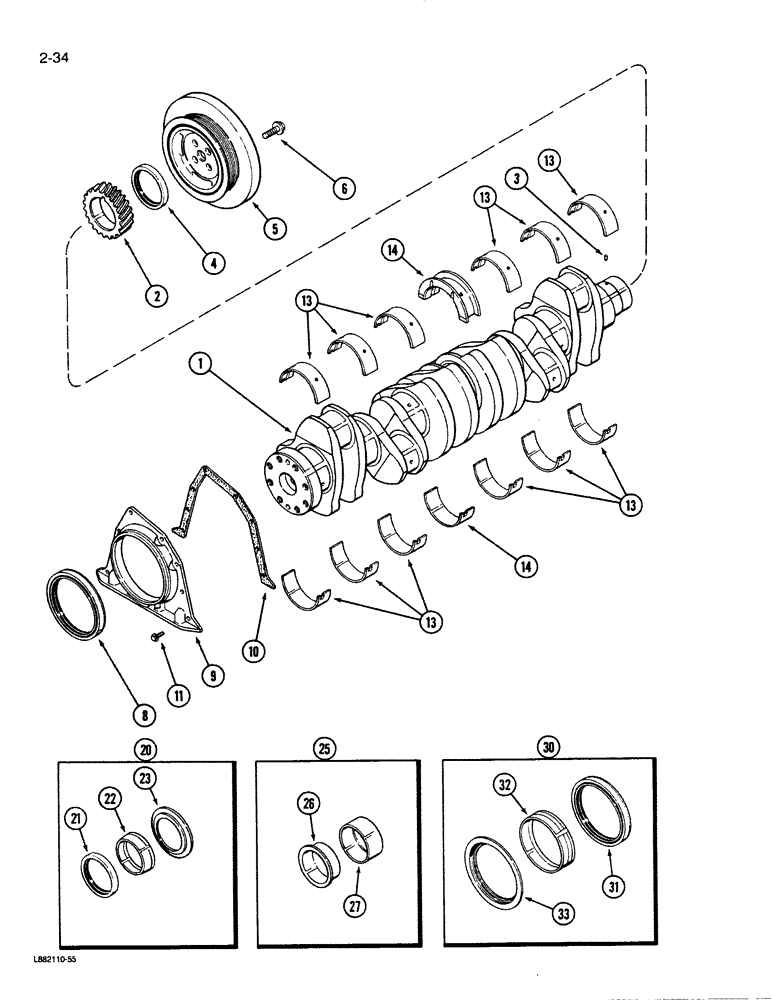

Запчасти Case 1550 (2-34) - CRANKSHAFT, 6T-830 ENGINE (02) - ENGINE

JR917443

REMAN-CRANKSHAFT

CRANKSHAFT - engine, remanufactured (North America only) (Replaces JR904363)

1шт.

JC917443

CORE-CRANKSHAFT

RETURN NUMBER - use this part number to return crankshaft for credit

1шт.

1

J917443

CRANKSHAFT

engine, new (Replaces J904363), Includes: Ref. 2 & 3

1шт.

2

J918380

GEAR

- crankshaft (Replaces J907645)

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

- dowel

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - oil, front (Order Ref 20)

1шт.

5

J914456

DAMPER

PULLEY - damper, vibration (Replaces J914455)

1шт.

6

J906733

BOLT,Hex Flg, M14 x 1.5 x 35mm, Cl 12.9

- hex flange, 14 x 35 mm

4шт.

8

NSS

NOT SOLD SEPARAT

SEAL - oil, rear (Order Ref 30)

1шт.

9

J907535

COVER ASSY

RETAINER - rear seal

1шт.

10

J914301

GASKET

- rear retainer

1шт.

11

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

6шт.

13

A77711

BEARING LINER

BEARING KIT - main, upper and lower, standard

6шт.

13

A77712

BEARING LINER

BEARING KIT - main, upper and lower, 0.25 mm undersize

6шт.

13

A77713

BEARING LINER

BEARING KIT - main, upper and lower, 0.50 mm undersize

6шт.

13

A77714

BEARING LINER

BEARING KIT - main, upper and lower, 0.75 mm undersize

6шт.

13

A77715

BEARING LINER

BEARING KIT - main, upper and lower, 1.0 mm undersize

6шт.

14

A77706

BEARING LINER

BEARING KIT - main thrust, upper and lower, standard

1шт.

14

A77707

SET

BEARING KIT - main thrust, upper and lower, 0.25 mm undersize

1шт.

14

A77708

BEARING LINER

BEARING KIT - main thrust, upper and lower, 0.50 mm undersize

1шт.

14

A77709

BEARING LINER

BEARING KIT - main thrust, upper and lower, 0.75 mm undersize

1шт.

14

A77710

BEARING LINER

BEARING KIT - main thrust, upper and lower, 1.0 mm undersize

1шт.

20

J908139

SEAL

KIT - oil, crankshaft front, Includes: Ref. 21 - 23

1шт.

21

NSS

NOT SOLD SEPARAT

SEAL - oil, front

1шт.

22

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

23

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

25

J906081

SLEEVE

KIT - wear, crankshaft rear, Includes: Ref. 26 & 27

1шт.

26

NSS

NOT SOLD SEPARAT

SLEEVE - wear

1шт.

27

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

25

J908277

SLEEVE

KIT - wear, crankshaft front, Includes: Ref. 26 & 27

1шт.

26

NSS

NOT SOLD SEPARAT

SLEEVE - wear

1шт.

27

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

30

J909410

GASKET KIT

SEAL KIT - oil, rear, Includes: Ref. 31 - 33

1шт.

31

NSS

NOT SOLD SEPARAT

SEAL - oil rear

1шт.

32

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

33

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

34

J918113

SHIELD,74.73mm ID x 91.7mm OD x 6mm Thk

- dust (If Equipped)

1шт.
