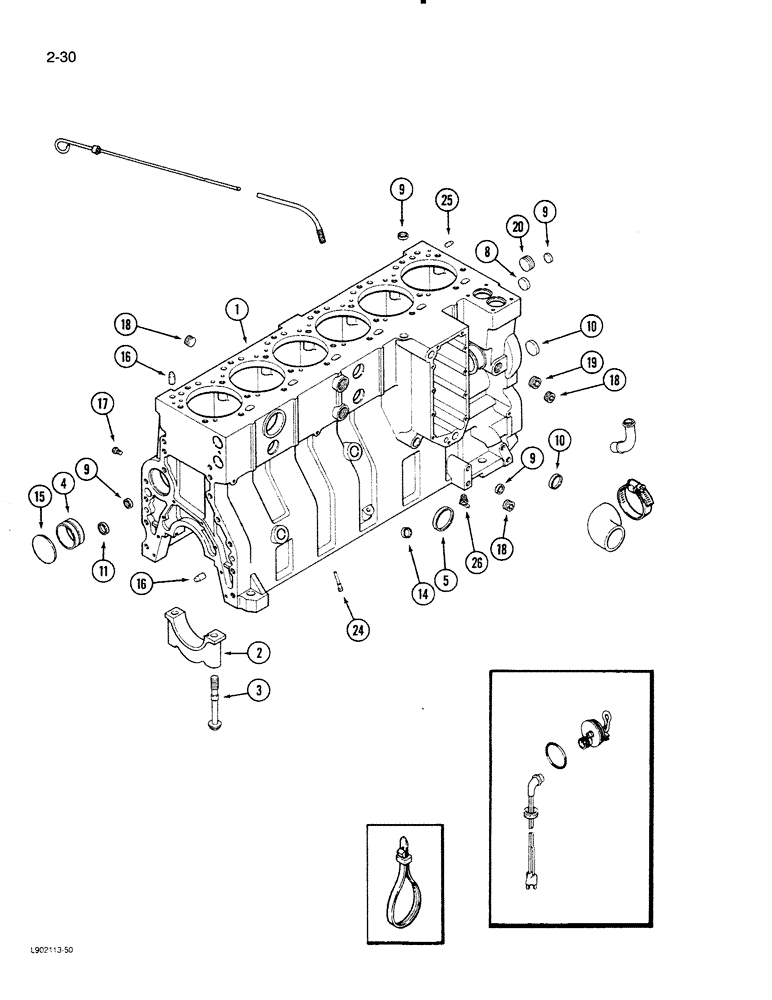

Запчасти Case 1550 (2-30) - CYLINDER BLOCK, 6T-830 ENGINE, TWELVE PISTON COOLING NOZZLES ENG SN 44487830 & AFT (02) - ENGINE

1989002C2

ENGINE ASSEMBLY

ENGINE ASSY ENGINE ASSEMBLY - complete (Includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler and exhaust pipe)

1шт.

A174358

BASIC ENGINE

ENGINE ASSEMBLY - basic, new

1шт.

Includes all parts except starter, alternator, fan, fan belt, fan bracket, air cleaner, muffler, exhaust manifold, flywheel and housing, oil fill and dipstick, fuel injection pump, injectors and lines, front crank pulley, belt tensioner and turbocharger

1шт.

47466038R

REMAN-BASIC ENGINE

Remanufactured Basic Engine Assembly, assembly includes short block assembly, cylinder head, valve cover, front cover, oil pan, water pump, thermostat and gasket kit to transfer trim parts

1шт.

47466038C

CORE-BASIC ENGINE

Return Part Number

1шт.

J919555

CRANKCASE

BLOCK ASSEMBLY - short, new (Includes stripped block, pistons, connecting rods and bearings, crankshaft and bearings) (Also order A77716 kit)

1шт.

JR919555

CRANKCASE

Block Assembly, Short, Remanufactured

1шт.

JC919555

CORE-ENGINE

Return Part Number, Use This Part Number To Return Block For Credit

1шт.

1

J919374

BLOCK

BLOCK ASSEMBLY - cylinder, stripped (Also order A77716 kit)

1шт.

1

JR919374

CRANKCASE

Block Assembly, Cylinder, Stripped, Remanufactured

1шт.

1

JC919374

CORE-ENGINE

Return Part Number, Use This Part Number To Return Block Core For Credit

1шт.

2

J917313

BEARING CAP

CAP - bearing, main

7шт.

3

J916369

FLANGE BOLT,Hex, M14 x 2 x 128mm, Cl 10.9

SCREW, Hex Flg Hd, M14 x 128

14шт.

4

REF

INSTRUCTION

BUSHING - camshaft (See Page 2-39)

7шт.

5

J900965

PLUG

PLUG - expansion, 58 mm OD

1шт.

8

A77586

PLUG

PLUG - expansion, 28.9 mm OD

1шт.

9

A77506

PLUG

PLUG - expansion, 21 mm O.D.

4шт.

10

J905401

PLUG

PLUG - expansion, 35 mm OD

4шт.

A77716

BLOCK

HARDWARE KIT - block

1шт.

11

A77530

PLUG

PLUG - expansion 1-3/16 inch OD

2шт.

14

A77439

PLUG

PLUG - expansion, 0.886 mm OD

1шт.

15

J901969

PLUG

PLUG - expansion, 69 mm OD

1шт.

16

J901846

PIN,12.01mm OD x 24mm L

PIN - dowel

4шт.

17

J906619

PLUG,1/8" - 27

PLUG - hex socket pipe, 1/8-27 inch PT

6шт.

18

A77429

PLUG

PLUG - hex socket pipe, 1/4-18 inch PT

4шт.

19

A77505

PLUG

PLUG - hex socket pipe, 1/2-18 inch PT

2шт.

20

A77533

PLUG

PLUG - hex, 1 inch PT

1шт.

24

J919003

NOZZLE INJECTION

NOZZLE - cooling, piston

12шт.

25

J900257

PIN,10.01mm OD x 16mm L

PIN - dowel, locating, 16 mm

2шт.

26

A77425

DRAIN VALVE

VALVE - drain, coolant

1шт.

27

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

TUBE - drain, oil

1шт.

29

J905408

TUBE,35.13 mm ID x 52.39 mm OD x 100 mm L

TUBE - oil filler

1шт.

30

A77424

FILLER CAP

CAP ASSEMBLY - fill, oil

1шт.

32

J909389

RADIATOR HOSE,50.08 mm ID, 60.08 mm ID x 39.70 mm

Elbow, Water

1шт.

33

J918521

HOSE CLAMP,59mm - 83mm

CLAMP - hose, coolant, 1-13/16 - 2-3/4

1шт.

34

J905425

TUBE,9.52 mm OD x 93 mm L

TUBE - dipstick

1шт.

35

J906757

DIPSTICK

DIPSTICK - oil gauge

1шт.

44

A77595

KIT

HEATER KIT - coolant, Includes: Ref. 45 - 47

1шт.

45

J905113

CABLE

CABLE - engine block heater

1шт.

46

NSS

NOT SOLD SEPARAT

ELEMENT - heater (Order A77595)

1шт.

47

J910517

O-RING

O-RING - heater sealing

1шт.
