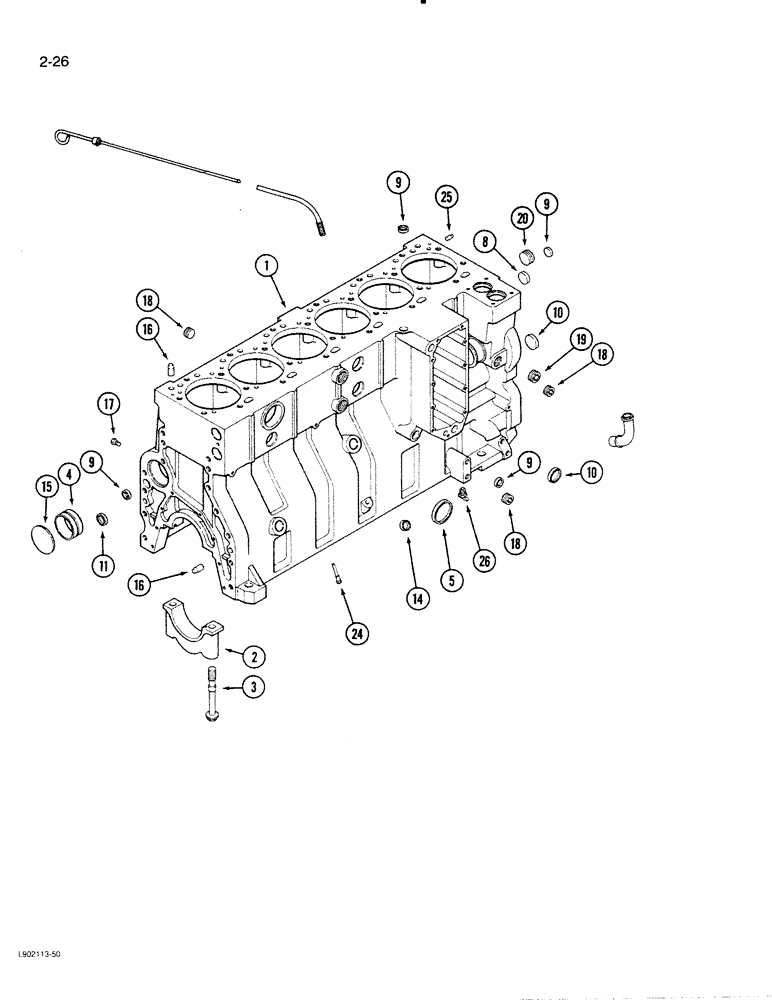

Запчасти Case 1550 (2-26) - CYLINDER BLOCK, 6T-830 ENGINE, SIX PISTON COOLING NOZZLES PRIOR ENG SN 44487830 (02) - ENGINE

A174297

ENGINE ASSEMBLY

- complete (Includes all parts except starter, alternator, fan fan belt, air cleaner muffler and exhaust pipe)

1шт.

REF

INSTRUCTION

ENGINE ASSEMBLY - basic (See Note)

1шт.

JR912531

ENGINE, EXCHANGE

BLOCK ASSEMBLY - short, remanufactured (North America Only)

1шт.

JC912531

CORE-SHORT ENGINE

RETURN NUMBER - use this part number to return block core for credit

1шт.

J912531

SKELETON ENGINE

BLOCK ASSEMBLY - short, new (Includes stripped block, pistons, connecting rods and bearings, crankshaft and bearings) (Also order J909415 kit)

1шт.

JR911898

ENGINE, EXCHANGE

BLOCK ASSEMBLY - stripped, remanufactured (North America Only)

1шт.

JC911898

SKELETON ENGINE

RETURN NUMBER - use this part number to return block core for credit

1шт.

1

J911898

BASIC BLOCK

BLOCK ASSEMBLY - cylinder, stripped (Also order J909415 kit)

1шт.

2

J905397

CAP

- bearing, main

7шт.

3

J906655

BOLT,Flng, M14 x 2 x 128.5mm, Cl 12.9

- hex flange, 14 x 128 mm

14шт.

4

REF

INSTRUCTION

BUSHING - camshaft (See Page 2-39)

7шт.

5

J900965

PLUG

- expansion, 58 mm OD

1шт.

8

A77586

PLUG

- expansion, 28.9 mm OD

1шт.

9

A77506

PLUG

- expansion, 21 mm O.D.

4шт.

10

J905401

PLUG

- expansion, 35 mm OD

4шт.

J909415

KIT

HARDWARE KIT - block

1шт.

11

A77530

PLUG

- expansion 1-3/16 inch OD

2шт.

14

A77439

PLUG

- expansion, 0.886 mm OD

1шт.

15

J901969

PLUG

- expansion, 69 mm OD

1шт.

16

J901846

PIN,12.01mm OD x 24mm L

- dowel

4шт.

17

J906619

PLUG,1/8" - 27

- hex socket pipe, 1/8-27 inch PT

6шт.

18

A77429

PLUG

- hex socket pipe, 1/4-18 inch PT

4шт.

19

A77505

PLUG

- hex socket pipe, 1/2-18 inch PT

2шт.

20

A77533

PLUG

- hex, 1 inch PT

1шт.

24

J905928

NOZZLE INJECTION

NOZZLE - piston cooling

6шт.

25

J900257

PIN,10.01mm OD x 16mm L

- dowel, locating, 16 mm

2шт.

26

A77425

DRAIN VALVE

VALVE - drain, coolant

1шт.

27

J909389

RADIATOR HOSE,50.08 mm ID, 60.08 mm ID x 39.70 mm

- Elbow, Water 50.08 mm ID, 60.08 mm ID x 39.70 mm

1шт.

28

J918521

HOSE CLAMP,59mm - 83mm

CLAMP - hose, coolant, 1-13/16 - 2-3/4 (Replaces 214-261)

1шт.

29

J905408

TUBE,35.13 mm ID x 52.39 mm OD x 100 mm L

- oil filler

1шт.

30

A77424

FILLER CAP

CAP ASSEMBLY - fill, oil

1шт.

33

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

TUBE - turbocharger oil drain

1шт.

34

J905425

TUBE,9.52 mm OD x 93 mm L

- dipstick

1шт.

35

J906757

DIPSTICK

- oil gauge

1шт.

44

A77595

KIT

HEATER KIT - coolant

1шт.

45

J905113

CABLE

- engine block heater

1шт.

46

NSS

NOT SOLD SEPARAT

ELEMENT - heater (Order A77595)

1шт.

47

J910517

O-RING

- heater sealing

1шт.
