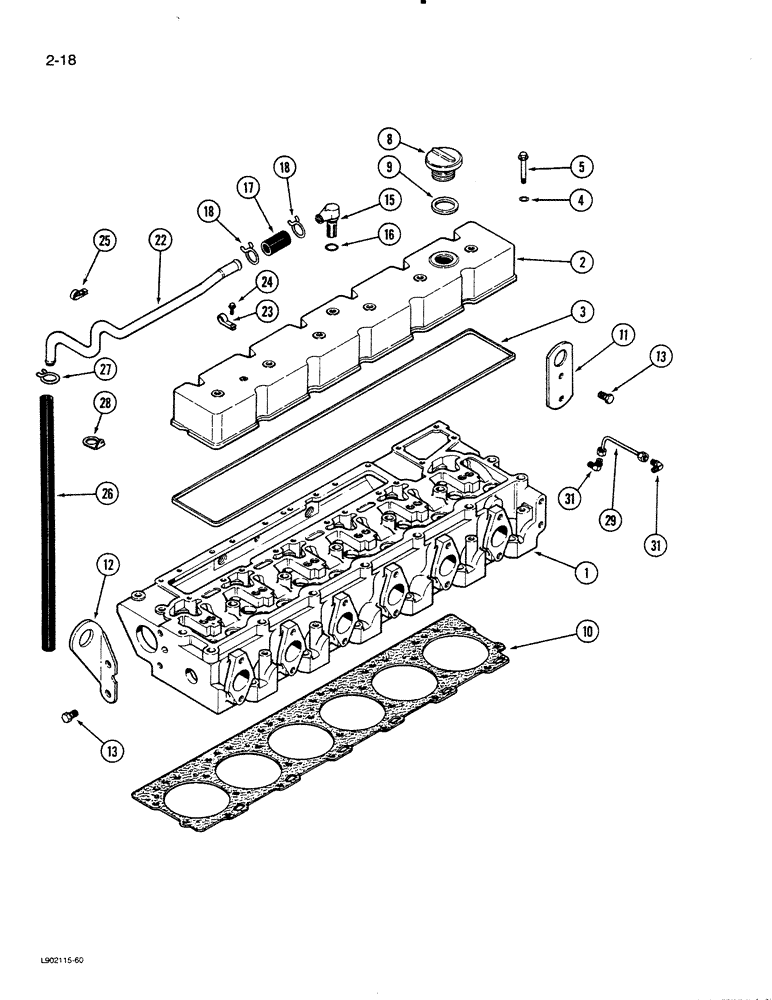

Запчасти Case 1550 (2-18) - CYLINDER HEAD GASKET AND COVER, 6T-830 ENGINE (02) - ENGINE

1

REF

INSTRUCTION

HEAD - cylinder (See figure 2-22)

1шт.

2

J907734

COVER ASSY

COVER - valve

1шт.

3

J905449

SEAL,7.179mm W x 2090mm L

SEAL - cover

1шт.

4

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- cover bolt

6шт.

5

J916585

BOLT,Hex Flg, M8 x 1.25

BOLT - hex flange shoulder, 8 x 56 mm (Replaces J901838)

6шт.

8

J902468

FILLER CAP,Male

CAP - oil filler

1шт.

9

J902466

SEAL,39.35mm ID x 59.35mm OD x 3mm Thk

RING - cap sealing

1шт.

10

J911342

GASKET

- cylinder head, standard (Replaces J907682)

1шт.

10

J914305

CYLINDER HEAD GASKET

- cylinder head, 0.27 mm thicker (Replaces J908119)

1шт.

10

J914306

GASKET

- cylinder head, 0.48 mm thicker (Replaces J908120)

1шт.

11

J907861

LIFTING EYE

BRACKET - lifting, front

1шт.

12

J906440

LIFTING EYE

BRACKET - lifting, rear

1шт.

13

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

- heavy hex flange, 12 mm - 1.75 x 25 mm, Grade 10.9

4шт.

15

J906794

CONNECTION

CONNECTOR - vent

1шт.

16

J909397

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

- sealing

1шт.

17

J915040

HOSE

- connector (Replaces A77639)

1шт.

18

214-109

HOSE CLAMP,#14, 7/8", Spring

CLAMP - spring, hose

2шт.

22

J909669

TUBE,15.9-19 mm OD x 642.7 mm L

- breather

1шт.

23

J907741

CLAMP,15.88mm ID, 9.52mm Bolt Hole, P Type

Retaining M15.88, M9.52 Bolt Hole

1шт.

24

J912072

SELF-TAP SCREW

SCREW - self tapping, 8 mm - 1.25 x 15 mm

1шт.

25

A77538

CLIP

- retaining

1шт.

26

A77717

HOSE

- breather (Replaces J907739)

1шт.

27

214-113

HOSE CLAMP,#18, 1 1/8", Spring

CLAMP - spring, hose

1шт.

28

J909670

CLIP

- retaining

1шт.

29

J918167

TUBE,6.35 mm OD x 117.5 mm L

- vent, air (Replaces J912802)

1шт.

31

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

- 90 degree, 1/4 inch tube x 1/8 inch PT (Replaces A77535)

2шт.
