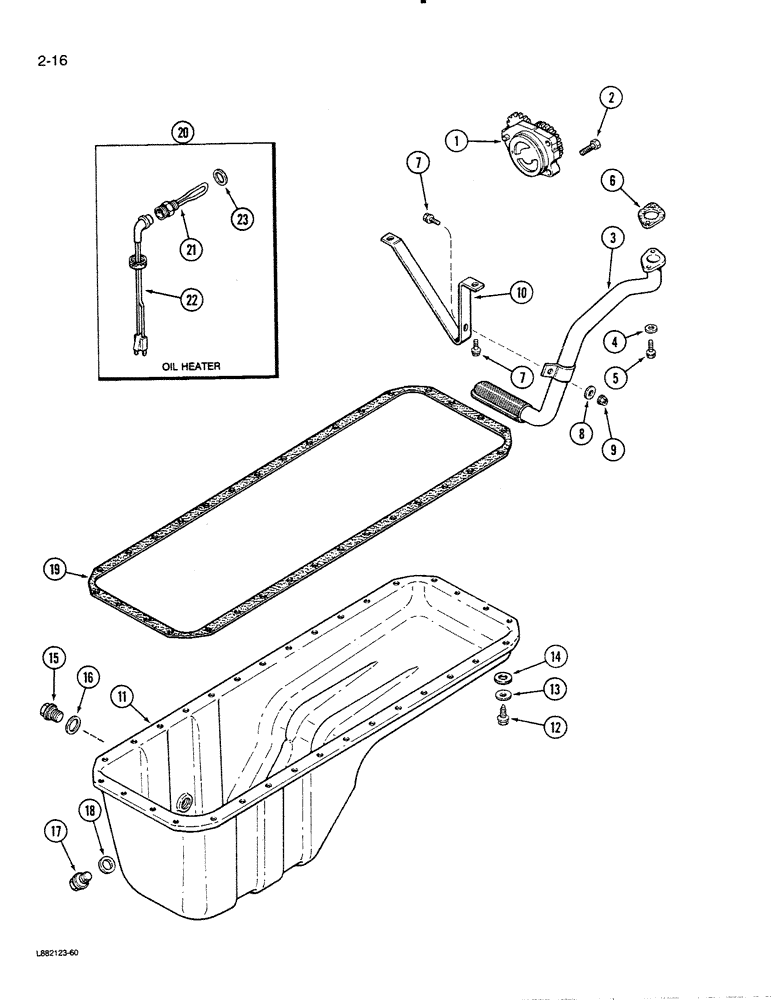

Запчасти Case 1550 (2-16) - OIL PUMP AND OIL PAN, 6T-830 ENGINE (02) - ENGINE

1

J918213

PUMP, ENGINE OIL

PUMP ASSEMBLY - oil, new (with 24 tooth drive gear) (For use on engines having 6 or 12 piston cooling nozzles)

1шт.

1

JR918213

PUMP

PUMP ASSEMBLY - oil, remanufactured, with 24 tooth drive gear (For use on engines having 6 or 12 piston cooling nozzles) (North America Only)

1шт.

1

JC918213

PUMP

RETURN NUMBER - oil pump (use this part number to return pump core for credit) (For engines Serial Number 44487830 and after)

1шт.

1

JR910066

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP PUMP ASSEMBLY - oil, with 28 tooth drive gear, remanufactured (North America Only) (For engines prior to Serial Number 44487830)

1шт.

1

JC910066

PUMP

RETURN NUMBER - oil pump (use this part number to return pump core for credit) (For engines prior to Serial Number 44487830)

1шт.

1

JR930338

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only

1шт.

1

JC926201

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return number - For N.A. only

1шт.

2

613-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

BOLT - hex, 8 x 30 mm

4шт.

3

J910787

TUBE

SCREEN ASSEMBLY - oil suction

1шт.

4

J908738

SPACER

SPACER - mounting

2шт.

5

845-6030

BOLT,Hvy Hex, M6 x 30mm, Cl 8.8

BOLT - hex flange, 6 x 30 mm

2шт.

6

J914302

GASKET

GASKET - mounting, oil tube

1шт.

Part of Oil Pan Gasket Kit, P/N A77679

1шт.

7

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

BOLT, Hex Flg, M6 x 15, 8.8, Full Thd

3шт.

8

J910960

WASHER

WASHER - flat, special

1шт.

9

J906216

FLANGE NUT

NUT - hex flange, 6 mm

1шт.

10

J913427

BRACE

BRACE - suction tube

1шт.

11

J914013

PAN, ENGINE OIL

PAN, OIL PAN - engine oil (Replaces J910874)

1шт.

12

J907860

FLANGE BOLT,Hex, M8 x 25mm, Spcl

BOLT - hex flange, 18 x 16 mm

32шт.

13

J910266

LOCK WASHER

WASHER - belleville spring

32шт.

14

J908316

WASHER

WASHER - flat, M9 x 16 x 1

32шт.

15

J904386

PLUG

PLUG - pipe, heater hole

1шт.

16

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

WASHER - seal, plug

1шт.

Part of Oil Pan Gasket Kit, P/N A77679

1шт.

17

J911638

PLUG,M18 x 1.5

PLUG - drain, oil magnetic

1шт.

18

J900216

PACKING RING

WASHER - seal, drain plug

1шт.

Part of Oil Pan Gasket Kit, P/N A77679

1шт.

19

NSS

NOT SOLD SEPARAT

GASKET - oil pan

1шт.

Part of Oil Pan Gasket Kit, P/N A77679

1шт.

A77679

GASKET KIT

GASKET KIT - oil pan, Includes: Ref. 6, 16, 18, 19

1шт.

20

A77580

SERVICE KIT

HEATER KIT - oil pan (Order washer J902425 when ordering heater kit A77580)

1шт.

21

NSS

NOT SOLD SEPARAT

ELEMENT - heater (Order A77580)

1шт.

22

J905113

CABLE

CABLE - engine block heater

1шт.

23

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

WASHER - seal, plug

1шт.
