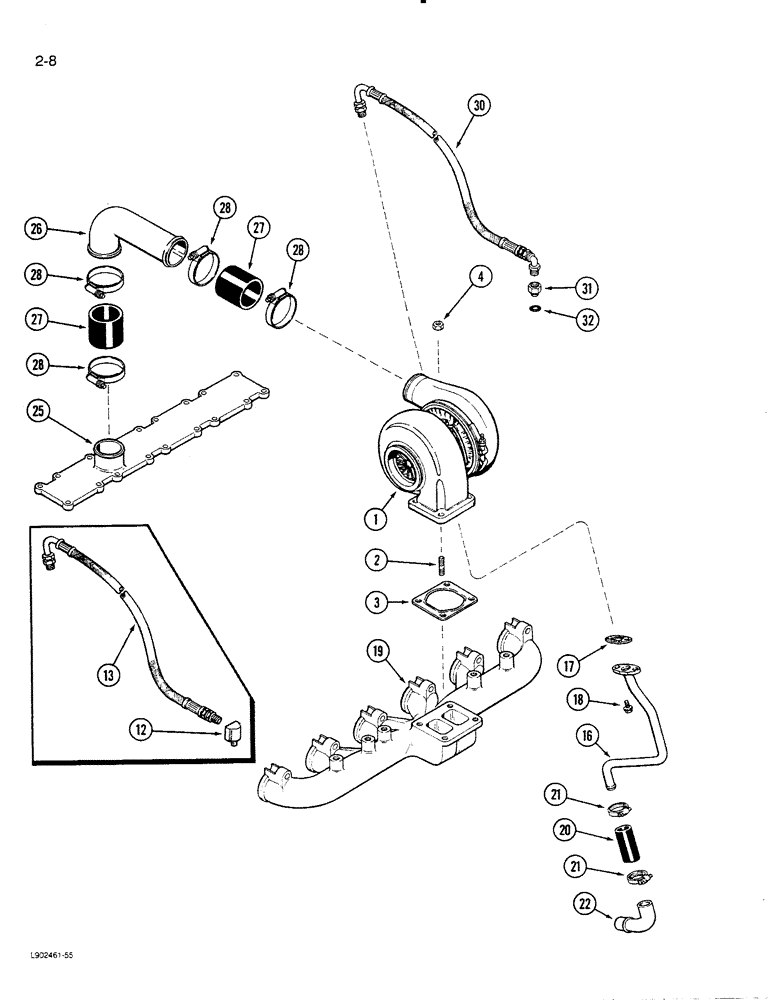

Запчасти Case 1550 (2-08) - TURBOCHARGER SYSTEM, 6T-830 ENGINE (02) - ENGINE

1

REF

INSTRUCTION

TURBOCHARGER ASSEMBLY - engine (See figure 2-10)

1шт.

2

J905417

STUD

- turbocharger mounting

4шт.

3

J911941

GASKET

- turbocharger mounting

1шт.

4

J901961

NUT

- hex, turbocharger mounting

4шт.

12

A77588

ELBOW

CONNECTOR - supply hose

1шт.

13

J909545

HOSE

Oil Supply, Turbocharger

1шт.

16

J917417

TUBE,22.23 mm OD x 281, 141.1 mm L

- oil drain (Replaces J913396)

1шт.

17

J914388

GASKET

- drain tube

1шт.

18

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- hex flange, 8 mm - 1.25 x 16 mm

2шт.

19

REF

INSTRUCTION

MANIFOLD - exhaust (See figure 2-6)

1шт.

20

J903745

LARGE HOSE

HOSE - turbocharger oil drain

1шт.

21

214-255

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

2шт.

22

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

TUBE - turbocharger oil drain

1шт.

25

REF

INSTRUCTION

MANIFOLD - intake cover (See figure 2-6)

1шт.

26

J914944

TUBE,63.5 mm OD x 207.8, 91.9 mm L

- air, cross over (Replaces J906738)

1шт.

27

J916529

TRANSMISSION SLEEVE

HOSE - intake tube (Replaces J904422)

2шт.

28

214-261

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

CLAMP - hose, 1-13/16 to 2-3/4 inch

4шт.

30

J913759

HOSE

. Turbocharger Oil Supply ( replaced J918556 )

1шт.

J921530 Hose Assy is for the Family II Engines. 06/12/96

1шт.

31

J916857

CONNECTOR, ELEC

CONNECTOR - supply hose

1шт.

32

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

-013, 70 Duro, .426" ID x .070" Thk

1шт.
