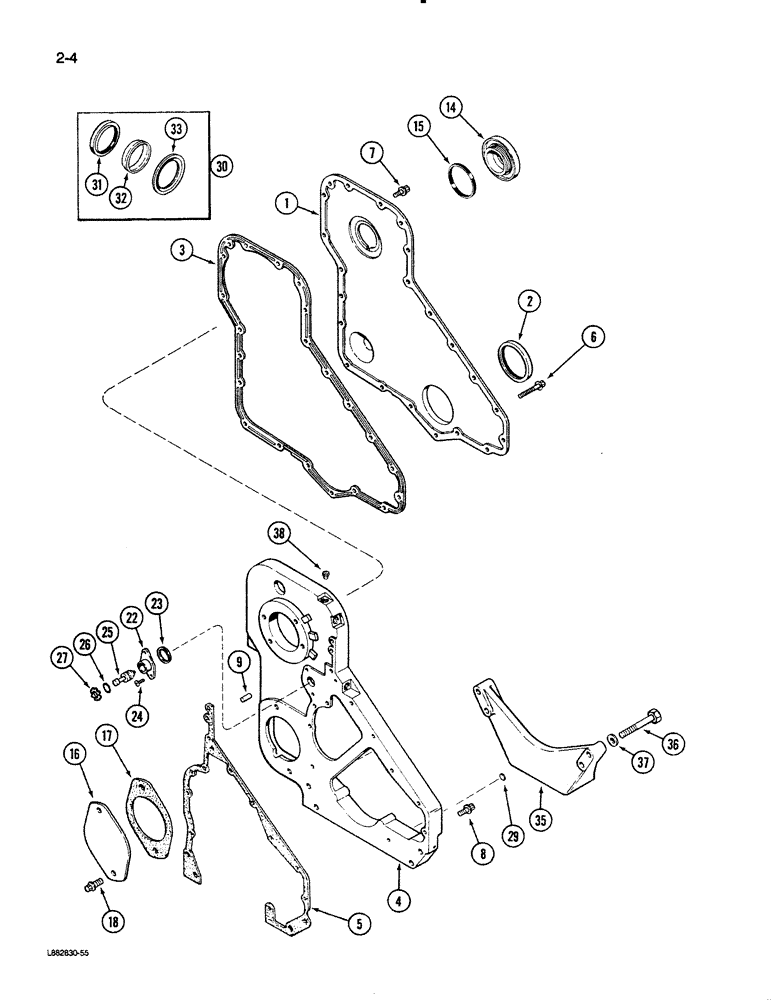

Запчасти Case 1550 (2-04) - FRONT GEAR COVER, 6T-830 ENGINE (02) - ENGINE

1

J916193

COVER

ASSEMBLY - gear, front (Replaces J911649)

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL - oil (Order Ref 30)

1шт.

3

J917780

GASKET,0.98mm Thk

GASKET - cover, gear (Replaces J913431)

1шт.

4

J914945

MOTOR HOUSING

HOUSING - gear (Replaces J911715)

1шт.

5

J914303

SEAL

GASKET - housing, gear

1шт.

6

845-8050

BOLT,Hvy Hex, M8 x 50mm, Cl 8.8

- hex flange, 8 mm - 1.25 x 50 mm

6шт.

7

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- hex flange, 8 mm - 1.25 x 16 mm

17шт.

Ref. Item #7 845-8016- the proper bolt to use is J924962 (or J900629 bolt with Loctite) by TSG bb 3/24/98

1шт.

8

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

- hex flange, M8 x 1.25 x 20 mm

5шт.

9

J900257

PIN,10.01mm OD x 16mm L

- dowel, locating, 16 mm

2шт.

14

J903463

PLUG,M63 x 5

- access

1шт.

15

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

- cover

1шт.

16

J914868

COVER

PLATE - cover, access

1шт.

17

J913288

SEAL

GASKET - cover, access

1шт.

18

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

- hex, 12 mm - 1.75 x 25 mm

2шт.

22

J905933

HOUSING

- timing pin

1шт.

23

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING - pin housing

1шт.

24

J907998

SCREW,M5 x 0.8 x 17mm, Cl 8.8

LOCK, Spc Rd Torx Hd, M5 x 17

2шт.

25

J903924

PIN,18.87mm OD x 55mm L

- timing

1шт.

26

J913994

O-RING

- sealing

1шт.

27

J904849

SNAP RING,0.875", Int, #87

RING, SNAP, , timing pin 0.875", Int, #87

1шт.

29

A77552

PLUG

- expansion, lower dowel hole, 29/64 inch diameter

1шт.

30

J908139

SEAL

KIT - oil, crankshaft front, Includes: Ref. 31 - 33

1шт.

31

NSS

NOT SOLD SEPARAT

SEAL - oil, front

1шт.

32

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

33

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

35

A184919

SUPPORT

- front, engine

1шт.

36

J902451

FLANGE BOLT,Hvy Hex, M12 x 90mm, Cl 10.9

BOLT - engine support retaining, hex, 12 x 90 mm

4шт.

37

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

- flat, mounting bolt

4шт.

38

J906619

PLUG,1/8" - 27

- hex socket pipe, 1/8-27 PT

3шт.
