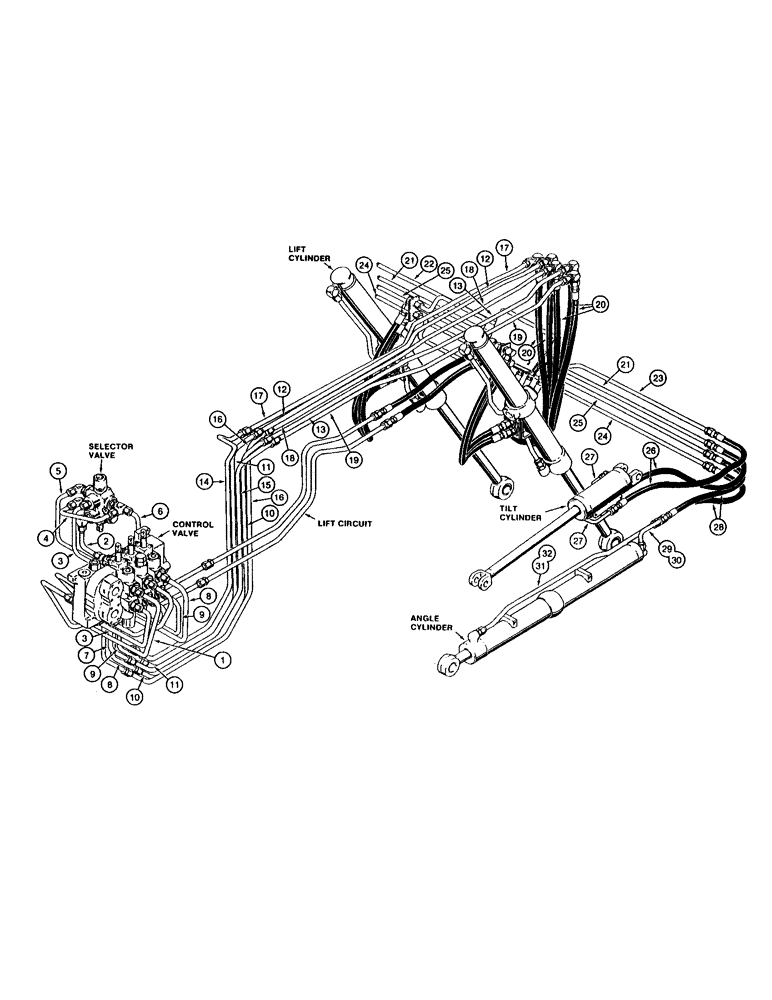

Запчасти Case 1550 (1-24) - PICTORIAL INDEX, *DOZER HYDRAULICS, ATP DOZER MODELS (00) - PICTORIAL INDEX

1

Tilt/Pitch Tube at Control Valve "A" Port, Page 8-33

1шт.

2

Tilt/Pitch Tube at Lower Rear Port of Selector Valve, Page 8-33

1шт.

3

Tilt/Pitch Tube from Control Valve "B" Port to Upper Rear Port of Selector Valve, Page 8-33

1шт.

4

Crossover Tube from Lower Left-Hand Port to Upper Right-Hand Port of Selector Valve, Page 8-33

1шт.

5

Tilt/Pitch Tube from Upper Left-Hand Port of Selector Valve, Page 8-33

1шт.

6

Tilt/Pitch Tube from Upper Right-Hand Port of Selector Valve, Page 8-33

1шт.

7

Tilt/Pitch Tube from Tee at Lower Rear Port of Selector Valve, Page 8-33

1шт.

8

Angle Tube at Control Valve "A" Port, Page 8-45

1шт.

9

Angle Tube at Control Valve "B" Port, Page 8-45

1шт.

10

Lower Intermediate Angle Tube from Control Valve "A" Port, Page 8-45

1шт.

11

Upper Intermediate Angle Tube from Control Valve "B" Port, Page 8-45

1шт.

12

Left-Hand Angle Tube to Front of Shroud, Page 8-45

1шт.

13

Right Hand Angle Tube to Front of Shroud, Page 8-45

1шт.

14

Upper Intermediate Tilt/Pitch Tube, Page 8-35

1шт.

15

Center Intermediate Tilt/Pitch Tube, Page 8-35

1шт.

16

Lower Intermediate Tilt/Pitch Tube, Page 8-35

1шт.

17

Left-Hand Outer Tilt/Pitch Tube to Shroud, Page 8-35

1шт.

18

Center Tilt/Pitch Tube to Shroud, Page 8-35

1шт.

19

Right-Hand Outer Tilt/Pitch Tube to Shroud, Page 8-35

1шт.

20

Hoses from Shroud to Blade, Page 8-37, 8-49

1шт.

21

Lower Tubes on Blade to Rod End of Tilt Cylinders, Page 8-37

1шт.

22

Upper Left-Hand Tube on Blade to Closed End of Tilt Cylinder, Page 8-37

1шт.

23

Upper Right-Hand Tube on Blade to Closed End of Tilt Cylinder, Page 8-37

1шт.

24

Lower Angle Tubes on Blade, Left-Hand and Right-Hand, Page 8-49

1шт.

25

Upper Angle Tubes on Blade, Left-Hand and Right-Hand, Page 8-49

1шт.

26

Hoses to Tilt Cylinders, Page 8-37

1шт.

27

Tubes to Closed End of Tilt Cylinders, Page 8-37

1шт.

28

Hoses to Angle Cylinders, Page 8-49

1шт.

29

Left-Hand Tube to Closed End of Angle Cylinder, Page 8-49

1шт.

30

Right-Hand Tube to Closed End of Angle Cylinder, Page 8-49

1шт.

31

Left-Hand Tube to Rod End of Angle Cylinder, Page 8-49

1шт.

32

Right-Hand Tube to Rod End of Angle Cylinder, Page 8-49

1шт.
